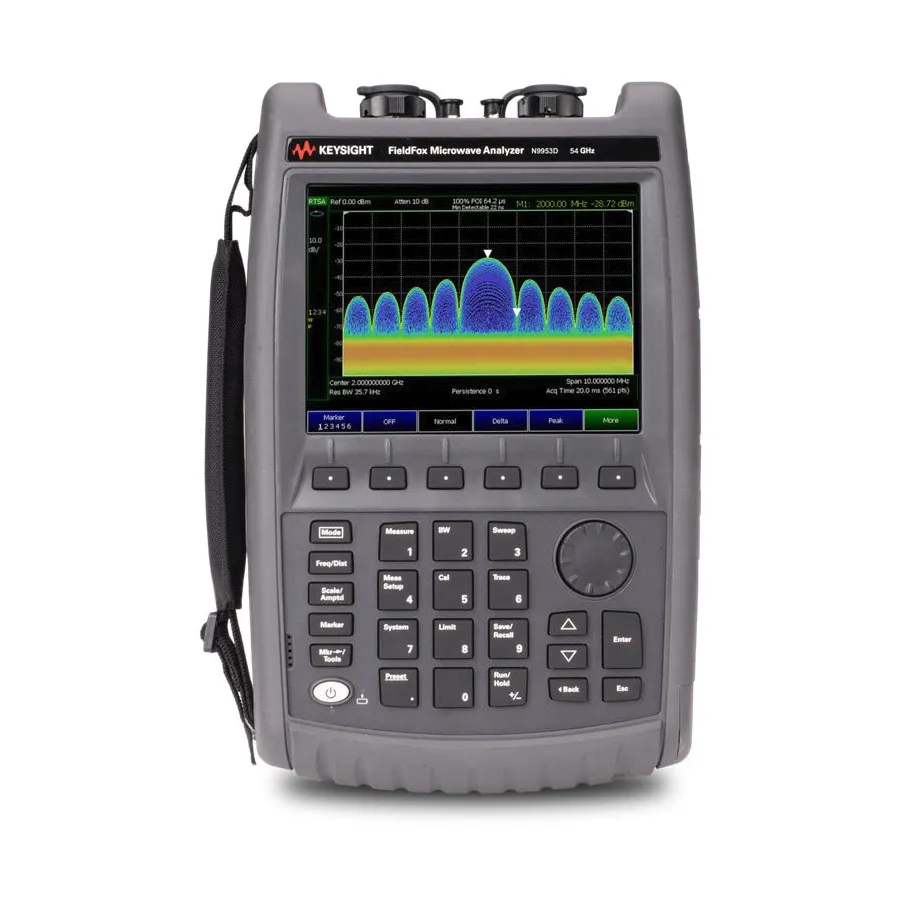

Keysight N9953D 54GHz Microwave Analyzer
Request a quote
Keysight N9953D is a 54 GHz portable microwave analyzer with cable and antenna testing, spectrum monitoring, and 25+ software options.
Product details
| Model | N9953D |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9953D is a portable 54 GHz handheld combination analyzer that provides cable and antenna testing with configurable spectrum monitoring, signal analysis and generation, and interference hunting capabilities. The analyzer delivers lab-grade measurements in both field and laboratory settings with rugged, weatherproof construction and a touchscreen interface for simplified operation.
Key Features
- 54 GHz maximum frequency
- 120 MHz gap-free real-time bandwidth
- Cable and antenna analyzer with return loss and DTF measurements
- Optional VNA (Vector Network Analyzer) capabilities
- Spectrum analyzer with ±0.1 dB accuracy (no warm-up required)
- 120 MHz maximum analysis and IQ streaming bandwidth
- Lightweight and portable: 3.6 kg (8 lb)
- Field-swappable battery with up to 4-hour operation
- Rugged design meeting MIL-specs
- Touchscreen interface for file management
- 25+ license-key software options for expandable functionality
Applications
- Cable and antenna testing and characterization
- Spectrum analysis and monitoring
- Signal analysis and generation
- 5G/LTE field testing
- Interference detection and hunting
- Power measurements and analysis
- Network analysis (with optional VNA)
- Field maintenance and troubleshooting
Specifications
| Frequency | 54 GHz |
| Series | FieldFox D-Series |
| Battery Life | 4 hrs. |
| Battery Type | Li-Ion |
| Connector | 1.85 mm (m) |
| Display | 6.5 LCD |
| Includes | AC / DC adapter, rechargeable li-ion battery, soft carrying case |
