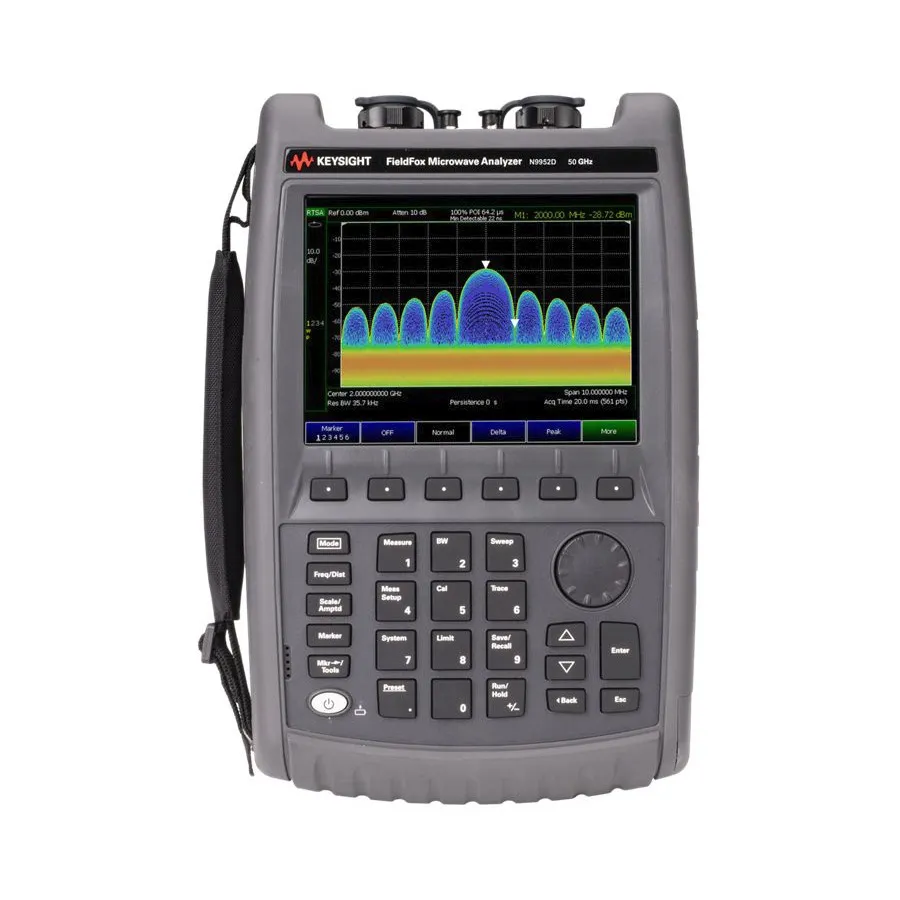

Keysight N9952D Microwave Analyzer

Overview

The Keysight N9952D is a 50 GHz handheld microwave analyzer that provides a versatile, all-in-one solution for cable and antenna testing, spectrum monitoring, and signal analysis. With more than 25 license-key software options, the analyzer can be configured as a vector network analyzer (VNA), spectrum analyzer, pulse generator, power meter, and other functions, allowing technicians to carry a single portable instrument for routine maintenance and advanced troubleshooting.

Key Features

• Maximum frequency: 50 GHz with 2.4 mm test port
• 120 MHz real-time analysis bandwidth for gap-free signal capture
• 120 MHz IQ streaming bandwidth capability
• Full 2-port VNA optional (base model includes 1-port cable analysis)
• ±0.1 dB spectrum analyzer accuracy without instrument warmup
• Field swappable battery with up to 4 hours operating time
• 3.6 kg (8 lb) rugged, weatherproof design meeting MIL-specs
• Touchscreen display with intuitive file management
• Linux-based operating system
• Standard three-year warranty

Applications

• Cable and antenna analysis with DTF, return loss, and transmission measurements
• Spectrum analysis and signal monitoring
• 5G/LTE field testing and over-the-air (OTA) measurements
• Vector network analysis for 2-port device characterization
• Pulse generation and pulse measurement
• Power meter functionality with USB sensor support
• Real-time spectrum analysis for interference identification
• Electromagnetic field (EMF) measurements
• Signal streaming and data logging
