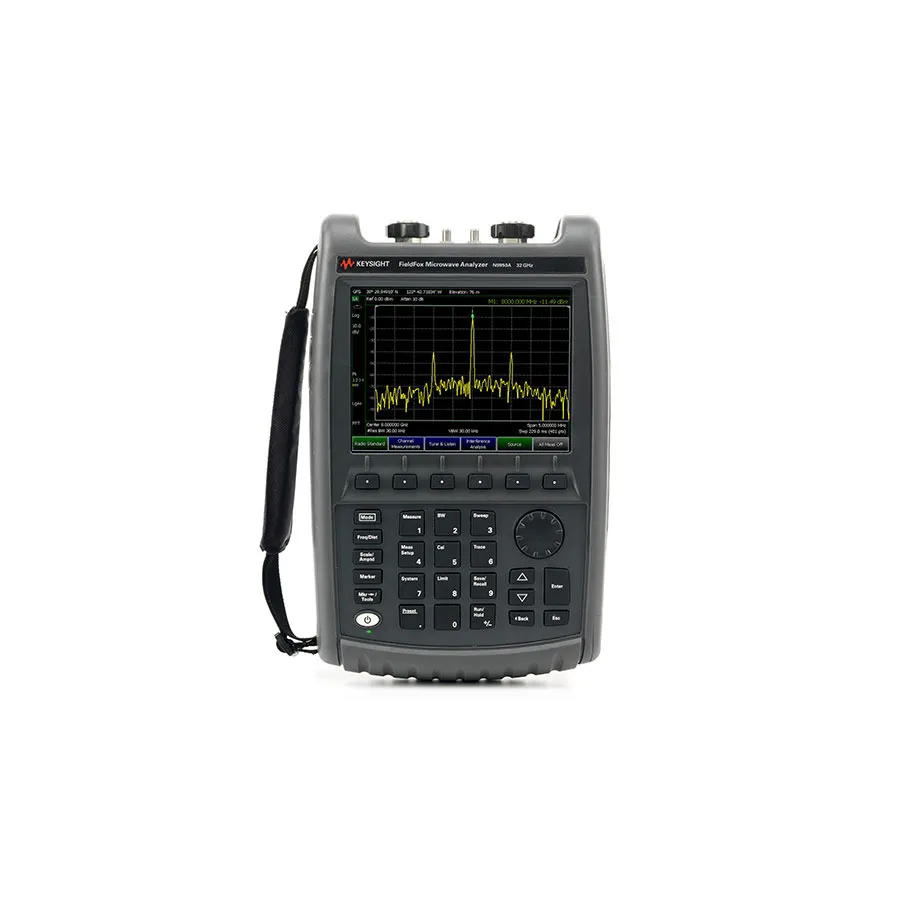

Keysight N9952A/208/233/235/302 FieldFox RF Combination Analyzer
Request a quote
Keysight N9952A FieldFox — 50 GHz handheld combination analyzer with cable and antenna testing, vector network analyzer, and spectrum analyzer options.
Product details
| Model | N9952A/208/233/235/302 |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9952A FieldFox is a 50 GHz handheld combination analyzer designed for RF and microwave field applications. The base unit includes cable and antenna analyzer (CAT) functionality with configurable options for vector network analyzer (VNA) and spectrum analyzer (SA) capabilities. Weighing 7.1 lbs and housed in a rugged MIL-PRF-28800F Class 2 package, the N9952A delivers lab-grade measurements in portable form for network maintenance, troubleshooting, and component characterization.
Key Features
- Frequency coverage: 300 kHz to 50 GHz, with spectrum analyzer from 5 kHz to 50 GHz
- Cable and antenna analyzer with return loss and distance-to-fault measurements
- Optional full 2-port vector network analyzer with high dynamic range
- Optional spectrum analyzer with ±0.5 dB amplitude accuracy
- Expandable architecture with up to 10 instruments in one package
- Optional power meter, signal generator, vector voltmeter, and GPS receiver
- Rugged field-rated design with IP53 weatherproofing and -10°C to +55°C operating range
Applications
- Cable and antenna system maintenance and commissioning
- RF and microwave component characterization and verification
- Spectrum monitoring and interference analysis
- Network performance troubleshooting and optimization
- Field installation and acceptance testing
Specifications
| Frequency Range (CAT/VNA) | 300 kHz to 50 GHz |
| Frequency Range (Spectrum Analyzer) | 5 kHz to 50 GHz |
| System Dynamic Range (CAT) | 110 dB |
| Amplitude Accuracy (SA) | ±0.5 dB |
| Weight | 7.1 lbs (3.2 kg) |
| Operating Temperature | -10°C to +55°C |
| Connectors | NMD 2.4 mm (m) |
| Standards Compliance | MIL-PRF-28800F Class 2, IEC/EN 60529 IP53 |
| Trace Noise | 0.004 dB |
| Output Power | 4 dBm |
