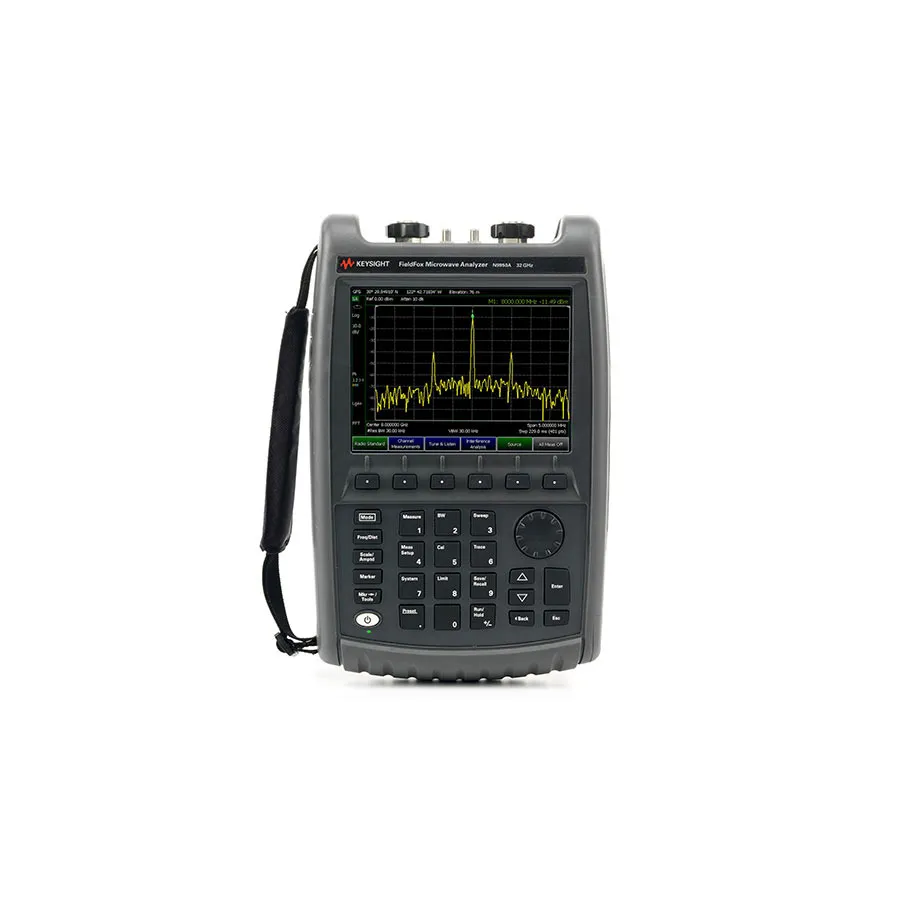

Keysight N9952A 233 235 236 307 310 312 FieldFox RF Combination Analyzer

Overview

The Keysight N9952A FieldFox is a 50 GHz handheld RF and microwave analyzer designed for field technicians and engineers. The base unit includes cable and antenna analyzer (CAT) functionality with optional vector network analyzer (VNA) and spectrum analyzer (SA) capabilities. With up to 10 instruments in one compact 3.2 kg (7.1 lb) package, the N9952A can be ordered with additional features including power meter, signal generator, vector voltmeter, interference analyzer, and GPS receiver for comprehensive RF and microwave measurements.

Key Features

• Frequency range: 300 kHz to 50 GHz (spectrum analyzer: 5 kHz to 50 GHz)
• Cable and antenna analyzer with return loss and distance-to-fault measurements
• Optional full 2-port vector network analyzer with dynamic range up to 100 dB
• Optional spectrum analyzer with ±0.5 dB amplitude accuracy and no warm-up required
• Built-in power meter, microwave signal source, and tracking generator
• Additional options: vector voltmeter, interference analyzer, variable DC source, GPS receiver
• MIL-PRF-28800F Class 2 rugged design with IP53 weatherproofing and -10°C to +55°C operating range
• Portable design: 7.1 lbs with soft carrying case

Applications

• Cable and antenna system maintenance and troubleshooting in microwave networks
• Network analyzer measurements for RF and microwave component characterization
• Spectrum analysis for signal identification and interference detection
• Field service and system performance verification
• Operation in explosive environments (meets MIL-810G requirements)

Included Accessories

• AC/DC power adapter
• Rechargeable battery
• Soft carrying case
• LAN cable
• Quick reference guide and user's guide
