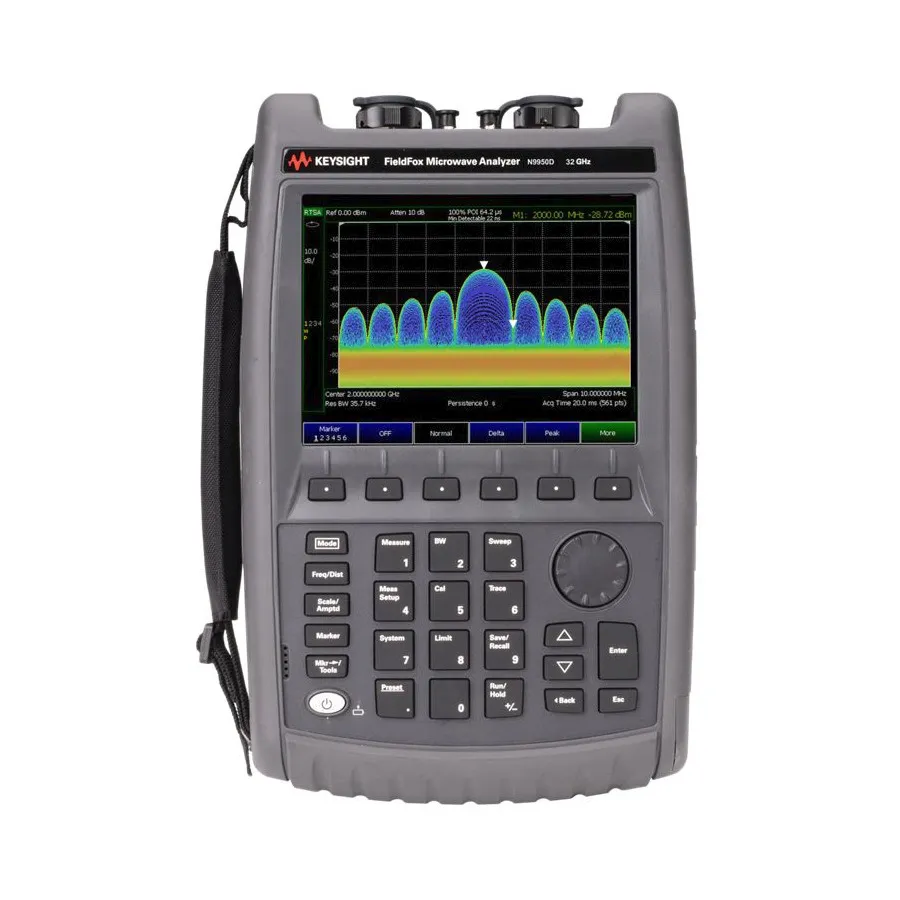

Keysight N9950D Microwave Analyzer
Request a quote
Keysight N9950D is a 32 GHz handheld combination analyzer offering cable and antenna testing, spectrum analysis, and network analysis with 120MHz real-time bandwidth.
Product details
| Model | N9950D |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9950D is a 32 GHz handheld combination analyzer designed for field and laboratory testing. It provides a versatile, all-in-one solution for cable and antenna testing, spectrum monitoring, signal analysis and generation, and interference hunting. The analyzer features a touchscreen interface and Linux-based operating system for enhanced security and file management.
Key Features
- Maximum frequency: 32 GHz with 2.4mm (m) test port connector
- 120 MHz maximum IQ streaming and analysis bandwidth for real-time signal capture
- Spectrum analyzer accuracy of ±0.1 dB without warm-up
- Lightweight design at 3.6 kg (8 lb) with rugged, weatherproof construction meeting MIL-specs
- Field-swappable battery providing up to 4 hours of operation
- Touchscreen interface for simplified file management and usability
- More than 25 license-key software options for expanded capabilities
- Configurable as VNA, spectrum analyzer, pulse generator, power meter, vector voltmeter, and direction-finding receiver
Applications
- Cable and antenna testing and characterization
- Spectrum analysis and monitoring
- Signal analysis and generation
- Interference hunting and localization
- Field service and maintenance testing
- Advanced troubleshooting in laboratory and field environments
Specifications
| Frequency | 32 GHz |
| Series | FieldFox D-Series |
| Battery Life | 4 hrs. |
| Battery Type | Li-Ion |
| Connector | 2.4 mm (m) |
| Display | 6.5 LCD |
| Includes | AC / DC adapter, rechargeable li-ion battery, soft carrying case |
