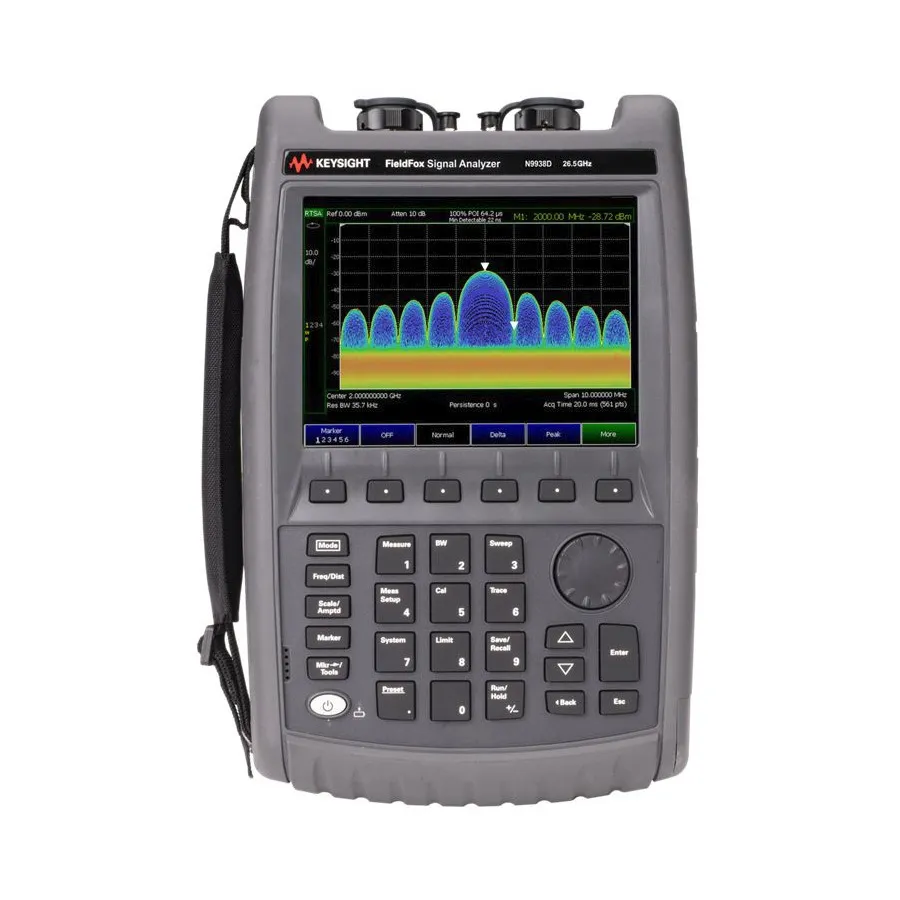

Keysight N9938D 26.5GHz Signal Analyzer
Request a quote
Keysight N9938D handheld analyzer covers 9 kHz to 26.5 GHz with 120 MHz real-time bandwidth for spectrum analysis, interference hunting, and signal generation.
Product details
| Model | N9938D |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9938D is a 26.5 GHz handheld signal analyzer designed for versatile RF testing in both field and laboratory environments. It provides spectrum analysis, signal generation, and interference hunting capabilities with configurable software options via license-key activation, allowing technicians to expand functionality for routine maintenance and advanced troubleshooting.
Key Features
- Frequency range 9 kHz to 26.5 GHz
- Analysis bandwidth up to 120 MHz with gap-free, real-time streaming
- Spectrum analysis accuracy of ±0.1 dB without warm-up
- Field-swappable battery with up to 4 hours operating time
- Lightweight portable design (3.6 kg / 8 lb) with rugged weatherproof housing meeting MIL-specifications
- Intuitive touchscreen interface for simplified file management
- IQ data streaming with bandwidth up to 120 MHz
- Software-defined architecture with over 25 license-key application options
Applications
- Spectrum monitoring and analysis
- Interference detection and location
- Signal generation and power measurements
- 5G/LTE field testing
- Over-the-air (OTA) signal measurement and validation
- Pulse analysis and measurement
- Electromagnetic field (EMF) mapping and monitoring
Specifications
| Frequency | 26.5 GHz |
| Series | FieldFox D-Series |
| Battery Life | 4 hrs. |
| Battery Type | Li-Ion |
| Connector | w/o Option: Type-N (f); w/ Option 100: 3.55 mm (m) |
| Display | 6.5 LCD |
| Includes | AC / DC adapter, rechargeable li-ion battery, soft carrying case |
