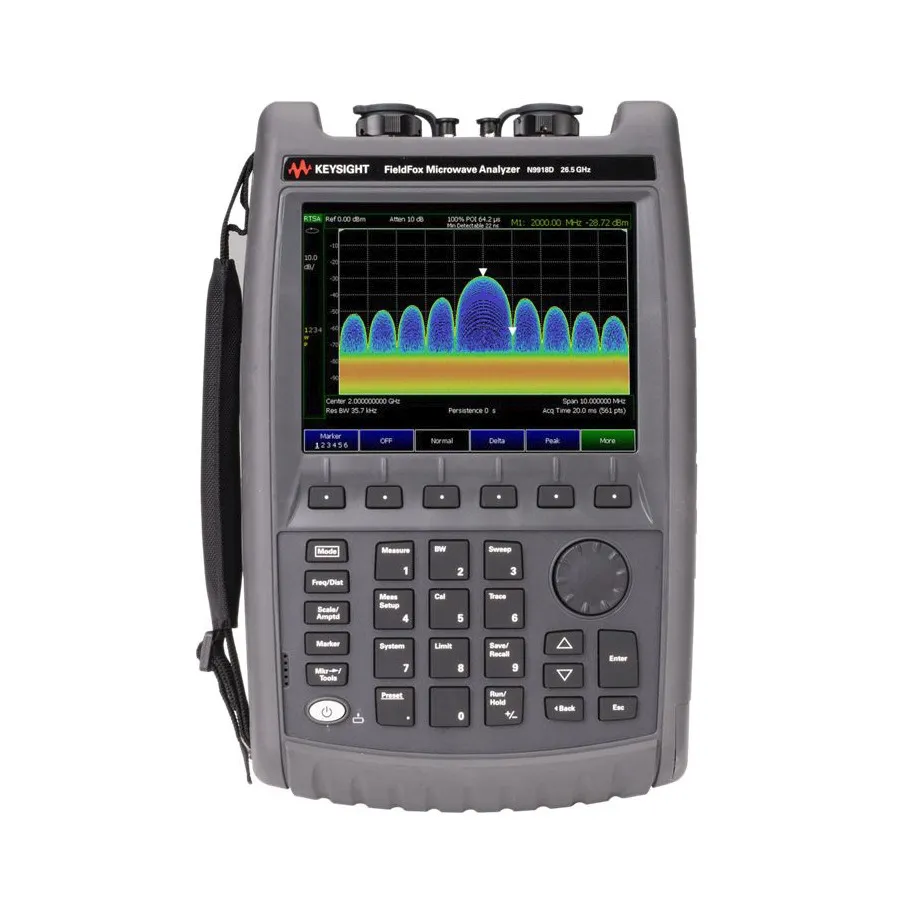

Keysight N9918D Microwave Analyzer (26.5 GHz)
Request a quote
Keysight N9918D 26.5 GHz handheld combination analyzer with VNA, spectrum analysis, and cable/antenna testing capabilities.
Product details
| Model | N9918D |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9918D is a 26.5 GHz handheld combination analyzer providing a versatile, all-in-one cable and antenna testing solution. With more than 25 license-key software options, the analyzer can be expanded to meet evolving needs, allowing technicians to carry a single portable instrument for routine maintenance and advanced troubleshooting.
Key Features
- Maximum frequency: 26.5 GHz
- Gap-free real-time bandwidth up to 120 MHz
- Configurable as VNA, spectrum analyzer, pulse generator, power meter, vector voltmeter, and other functions
- Accurate spectrum measurements (±0.1 dB) without warm-up
- Field-swappable battery lasting up to 4 hours
- Lightweight at 3.6 kg (8 lb) with rugged, weatherproof design
- Intuitive touchscreen for simplified file management
- MIL-spec rugged construction
- Standard three-year warranty
Applications
- Cable and antenna testing with DTF, return loss, and insertion loss measurements
- Spectrum analysis and monitoring
- Signal analysis and generation
- Interference hunting and detection
- 5G/LTE field testing (with options)
- EMF measurements (with options)
- Real-time spectrum analysis (with options)
Specifications
| Frequency | 26.5 GHz |
| Series | FieldFox D-Series |
| Battery Life | 4 hrs. |
| Battery Type | Li-Ion |
| Connector | w/o Option: Type-N (f); w/ Option 100: 3.55 mm (m) |
| Display | 6.5 LCD |
| Includes | AC / DC adapter, rechargeable li-ion battery, soft carrying case |
