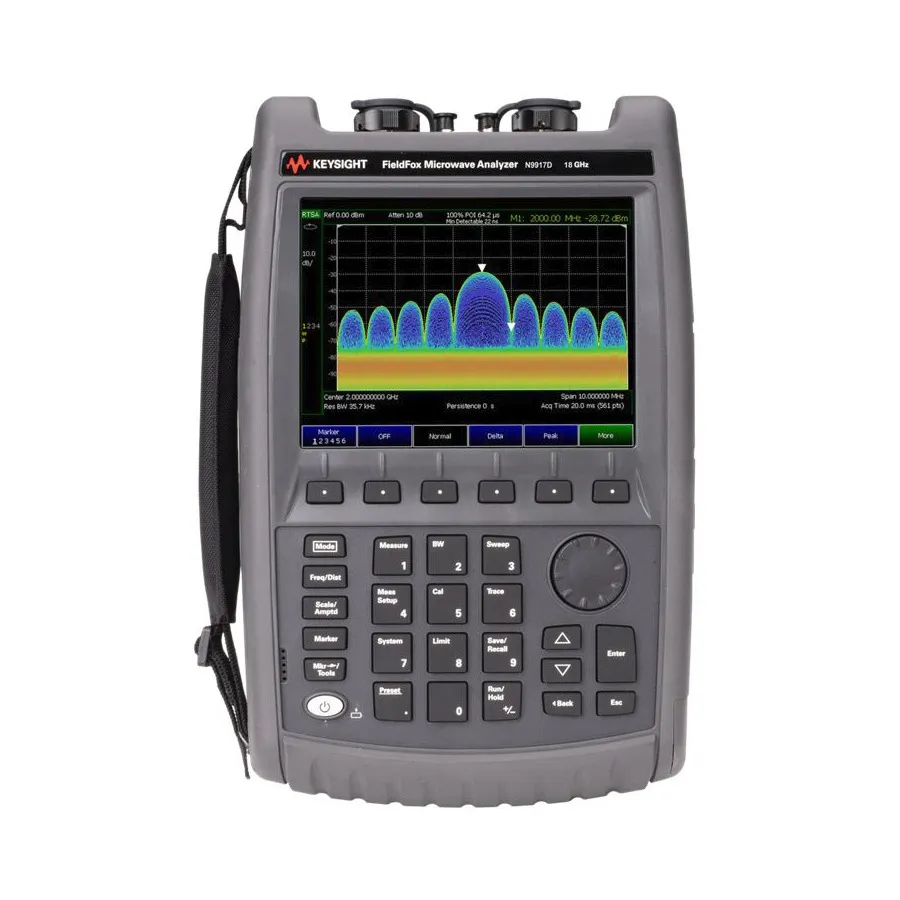

Keysight N9917D FieldFox 18 GHz Handheld Microwave Analyzer
Request a quote
18 GHz handheld combination analyzer for cable and antenna testing with configurable spectrum and network analysis, signal generation, and interference hunting.
Product details
| Model | N9917D |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9917D is an 18 GHz handheld combination analyzer designed for field and laboratory testing. It provides versatile cable and antenna testing capabilities with configurable software options for spectrum analysis, vector network analysis, pulse generation, power measurements, and interference detection. The instrument weighs 3.6 kg and meets MIL-spec ruggedness standards with weatherproof design.
Key Features
- Maximum frequency: 18 GHz for CAT/VNA and spectrum analysis
- Gap-free real-time bandwidth up to 120 MHz for signal capture
- IQ streaming bandwidth up to 120 MHz
- Accurate spectrum analyzer measurements (±0.1 dB) without warm-up
- Field-swappable battery with up to 4-hour runtime
- Lightweight at 3.6 kg (8 lb) with rugged, weatherproof design
- Intuitive touchscreen for simplified file management
- Configurable with more than 25 software license options
- Standard three-year warranty
- Base model includes DTF, return loss, and 1-port cable loss measurements
Applications
- Cable and antenna field testing and troubleshooting
- Spectrum analysis and interference hunting
- Vector network analysis (VNA) with optional configuration
- LTE and 5G field testing (with optional software)
- Power and signal measurements
- Portable lab-quality measurements for maintenance and advanced troubleshooting
Specifications
| Frequency | 18 GHz |
| Series | FieldFox D-Series |
| Battery Life | 4 hrs. |
| Battery Type | Li-Ion |
| Connector | Type-N (f) |
| Display | 6.5 LCD |
| Includes | AC / DC adapter, rechargeable li-ion battery, soft carrying case |
