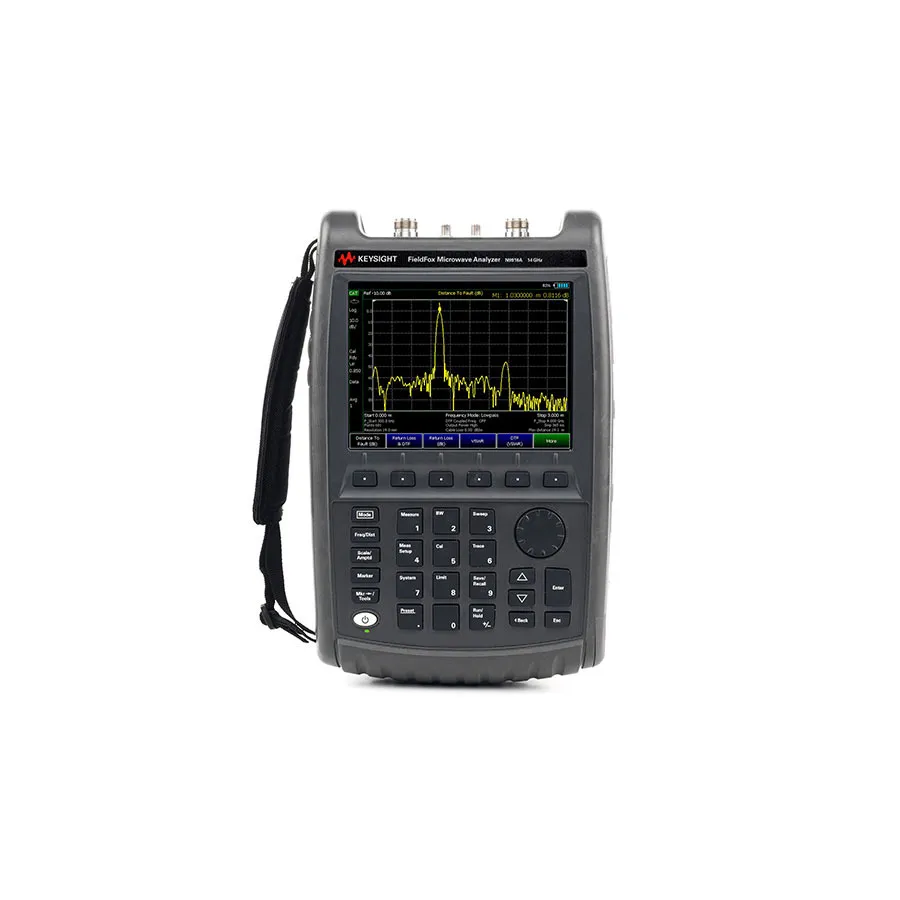

Keysight N9917A 18 GHz Cable and Antenna Analyzer
Request a quote
Keysight N9917A is an 18 GHz handheld combination analyzer with cable and antenna testing, optional VNA and spectrum analysis capabilities.
Product details
| Model | N9917A |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9917A FieldFox is a lightweight, integrated 18 GHz handheld analyzer providing cable and antenna testing with optional VNA and spectrum analyzer capabilities. It delivers precise measurements for routine field maintenance through advanced troubleshooting with configurable options for power metering and specialized analysis modes.
Key Features
- 18 GHz maximum frequency for RF and microwave analysis
- 2-port cable and antenna analyzer as standard
- Optional VNA and spectrum analyzer capabilities
- 10 MHz maximum analysis bandwidth
- 100 dB system dynamic range
- 0.004 dB trace noise
- Lightweight at 3.0 kg
- ±0.5 dB spectrum accuracy without warm-up
- QuickCal calibration for field use
Applications
- Cable loss and DTF measurements with TDR capability
- S-parameter and VNA analysis
- Spectrum analysis and monitoring
- Power measurements with USB sensors
- Vector voltmeter and signal generation
- 5G and LTE OTA testing
Specifications
| Frequency | 18 GHz |
| Series | A-Series |
| Backlight | Yes |
| Battery Life | 3.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 11.5 x 7.4 x 2.8 in. |
| Display | 6.5” Transflective Color LCD-LED |
| Dynamic Range | 100 dB |
| Frequency Range | 30 kHz to 18 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Rechargeable Li-ion Battery, Soft Carrying Case with Backpack, Quick Reference Guide |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
| Resolution | 1 Hz |
