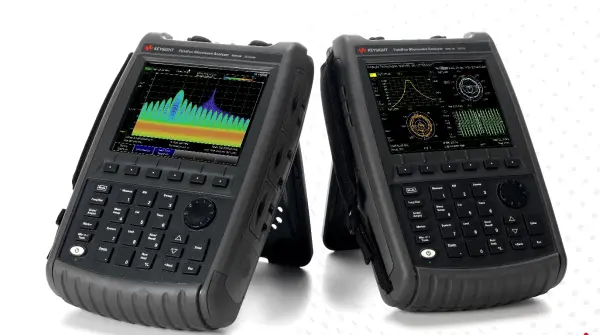

Keysight N9915B FieldFox Handheld Microwave Analyzer
Request a quote
Keysight N9915B is a handheld microwave analyzer with 9 GHz coverage, 2-port VNA, spectrum analyzer, and real-time bandwidth for field deployment.
Product details
| Model | N9915B |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9915B is a handheld FieldFox microwave analyzer designed for comprehensive RF and microwave measurements in the field. With frequency coverage from 30 kHz to 9 GHz and integrated dual-port capability, the N9915B combines cable and antenna analysis, vector network analysis, spectrum analysis, power measurement, and over-the-air demodulation in a single portable unit.
Key Features
- Frequency range: 30 kHz to 9 GHz (CAT/VNA), 5 kHz to 9 GHz (spectrum analyzer)
- 2-port vector network analyzer with 115 dB dynamic range
- 100 MHz real-time bandwidth for gap-free signal capture
- Spectrum analyzer with ±0.3 dB amplitude accuracy without warmup
- Over-the-air measurements for 5G NR and LTE signals
- Built-in cable and antenna analyzer with DTF/TDR capability
- Integrated power meter with CW and swept-frequency measurements
- GPS/GNSS receiver for geolocation and timestamping
- Lightweight design at 3.4 kg (7.4 lb)
- Type-N female connectors on 2 test ports
Applications
- 5G base station deployment and verification
- Cable and antenna condition assessment
- Interference identification and mitigation
- RF and microwave system troubleshooting
- Field strength and coverage measurements
- Signal quality and multipath analysis
Specifications
| Built For 5G | 5G technologies provide dramatic network speed improvement and superfast connection time. 5G New Radio (NR) is the 3rd Generation Partnership Project (3GPP) standard for the wireless network running on the sub-7.125 GHz frequency band (FR1) and above 24.250 GHz on the millimeter-wave (mmWave) frequency band (FR2). 5G offers gigabit per second data rates. 5G networks use wider bandwidths, higher operating frequencies, and active antenna systems, such as phased array antennas. The key challenges for 5G network deployment are characterizing air interface path loss, optimizing beam coverage, and mitigating interference issues. Keysight’s 5G gNodeB (gNB) field test solution, based on the FieldFox microwave analyzer, provides a complete toolkit for radio frequency (RF) engineers and technicians to install and troubleshoot 5G networks. This solution can verify hardware gNB performance, such as cable and antenna conditions, transmit power, control channel power, and RF spurious responses. It can also verify signal quality over the air, including multipath synchronization signal information and coverage area path loss, as well as identify and troubleshoot interference issues. |
| Features | Parameters |
| Maximum Frequency | 9 GHz |
| Minimum Frequency | 30 kHz |
| SA Start Frequency | 5 kHz |
| System Dynamic Range | > 114 dB |
| Best Speed at 1001 Point, 1 Sweep | 171 us/pt |
| Output Power | 8 dBm |
| Trace Noise | n/a |
| Number of Built-In Ports | 2 ports |
| Instrument Type | Combination Analyzer |
| Cable and Antenna Analyzer | Yes - Standard |
| Spectrum Analyzer | Yes - Optional |
| Vector Network Analyzer | Yes - Optional |
| Additional CAT/VNA Based Features | Vector Voltmeter Mixed-Mode S-Parameters DTF/TDR Cable Measurements |
| Additional SA Based Features | Built-In Power Meter Extended Range Transmission Analysis (ERTA) Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements |
| System Features | Built-In DC Source GPS Receiver - Internal Only Remote Control Capability |
| Power Measurement Using USB Sensor | CW or Swept-Frequency Frequency-Offset RF Pulse Test with Peak Sensor |
| Standard Attenuator Range | n/a |
| Standard Attenuator Step | n/a |
| DANL @1 GHz | -163 dBm |
| Maximum Analysis Bandwidth | n/a |
| Phase Noise @1 GHz (1 MHz offset) | n/a |
| Phase Noise @1 GHz (10 kHz offset) | -117 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | n/a |
| Spur Free Dynamic Range | n/a |
| TOI @1 GHz (3rd Order Intercept) | n/a |
| Applications Available | Yes |
| Maximum Real-Time Bandwidth | n/a |
| Overall Amplitude Accuracy | n/a |
| Bandwidth Options | n/a |
| Performance Level | n/a |
| Applications-Cellular | 89600 VSA Software Over-The-Air LTE FDD and 5GTF |
| Applications-Digital Video | n/a |
| Applications-General Purpose | AM/FM Tune and Listen Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response |
| Applications-Wireless Connectivity | n/a |
| Handheld / Modular | Yes |
| N9915B | 9 GHz FieldFox microwave analyzer30 kHz to 9 GHz9 kHz to 9 GHzType-N (f) |
