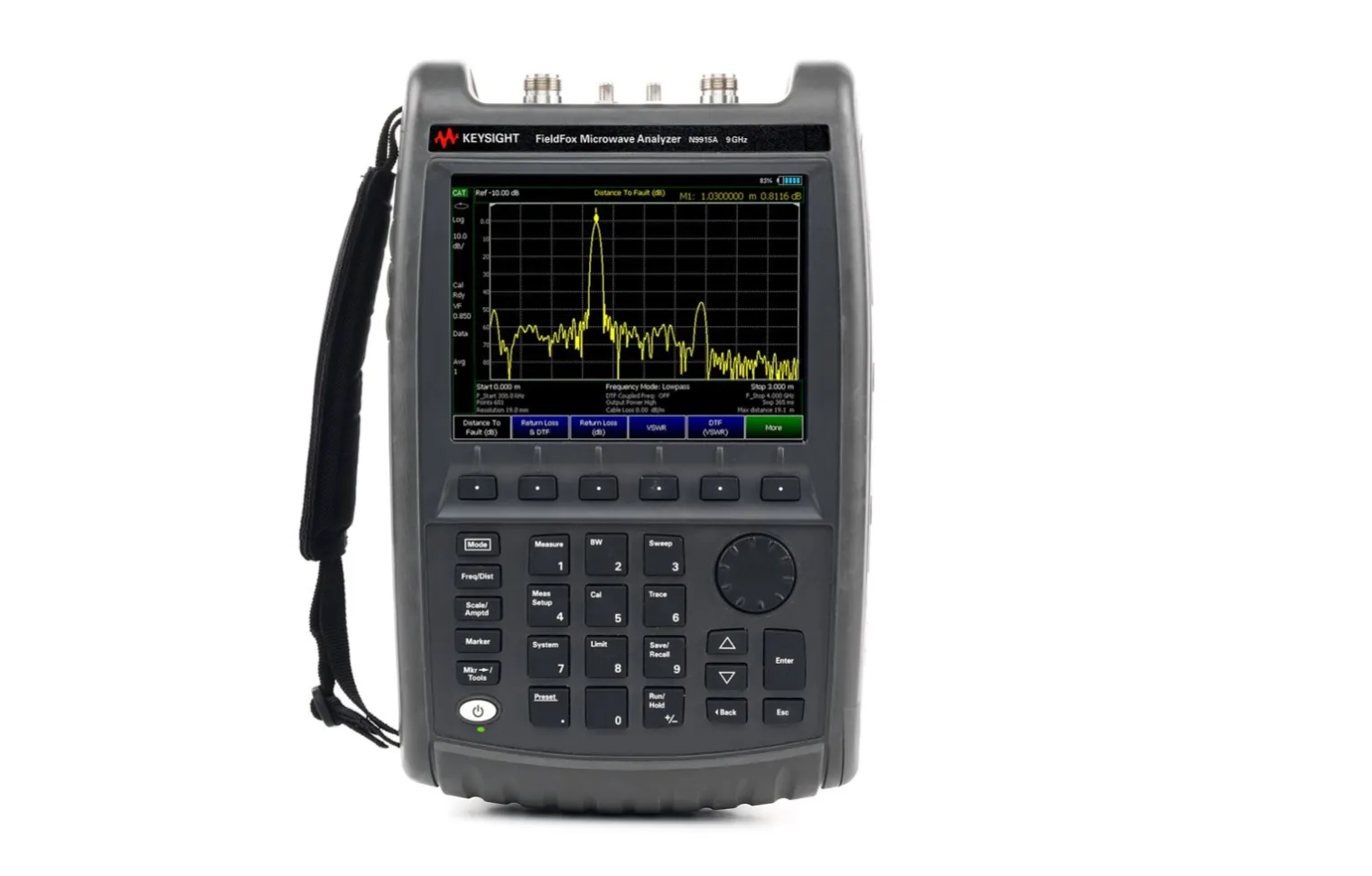

Keysight FieldFox N9915A is a lightweight handheld microwave analyzer combining cable and antenna analysis with vector network analysis capabilities to 9 GHz.
Product details
| Model | N9915A |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight FieldFox N9915A is a lightweight handheld microwave analyzer combining cable and antenna analysis, spectrum analysis, and network analysis in one integrated instrument. Operating from 30 kHz to 9 GHz for CAT and VNA measurements and 5 kHz to 9 GHz for spectrum analysis, it delivers Keysight-quality measurements in a portable 6.6 lb (3.0 kg) package designed for field service and troubleshooting.
Key Features
- 9 GHz maximum frequency for CAT, VNA, and spectrum analysis
- Standard cable and antenna analyzer with optional vector network analyzer and spectrum analyzer
- Simultaneous measurement of all four S-parameters
- Distance-to-Fault (DTF) and Time-Domain Reflectometry (TDR) cable measurements in a single sweep
- Spectrum analyzer with ±0.5 dB measurement accuracy without warm-up
- 100 dB system dynamic range for precise measurements
- QuickCal calibration for simplified operation
- Optional capabilities: power meter, vector voltmeter, interference analyzer, DC source, GPS receiver, and remote control
- Lightest combination analyzer at 6.6 lb (3.0 kg)
Applications
- Cable and antenna testing, characterization, and troubleshooting
- Field maintenance and in-depth RF troubleshooting
- Microwave network analysis and device characterization
- Spectrum monitoring and interference detection
- RF power measurements and transmission analysis
- Field strength measurements
Specifications
| Maximum Frequency | 9 GHz |
| Minimum Frequency | 30 kHz |
| SA Start Frequency | 5 kHz |
| System Dynamic Range | 100 dB |
| Best Speed at 1001 Point, 1 Sweep | 432 us/pt |
| Output Power | -1 dBm |
| Trace Noise | 0.004 dB |
| Number of Built-In Ports | 2 ports |
| Instrument Type | Combination Analyzer |
| Cable and Antenna Analyzer | Yes - Standard |
| Spectrum Analyzer | Yes - Optional |
| Vector Network Analyzer | Yes - Optional |
| Additional CAT/VNA Based Features | Vector Voltmeter Mixed-Mode S-Parameters DTF/TDR Cable Measurements |
| Additional SA Based Features | Built-In Power Meter Extended Range Transmission Analysis (ERTA) Real-Time Spectrum Analysis Noise Figure Measurements Over-The-Air Measurements |
| System Features | Built-In DC Source GPS Receiver - Internal Only Remote Control Capability |
| Power Measurement Using USB Sensor | CW or Swept-Frequency Frequency-Offset RF Pulse Test with Peak Sensor |
| Standard Attenuator Range | 30 dB |
| Standard Attenuator Step | 5 dB |
| DANL @1 GHz | -155 dBm |
| Maximum Analysis Bandwidth | 10 MHz |
| Phase Noise @1 GHz (1 MHz offset) | -113 dBc/Hz |
| Phase Noise @1 GHz (10 kHz offset) | -111 dBc/Hz |
| Phase Noise @1 GHz (30 kHz offset) | -108 dBc/Hz |
| Spur Free Dynamic Range | > 105 dB |
| TOI @1 GHz (3rd Order Intercept) | +15 dBm |
| Applications Available | Yes |
| Maximum Real-Time Bandwidth | 10 MHz |
| Bandwidth Options | 10 MHz (standard) |
| Performance Level | ◆◆◆◇◇◇ |
| Applications-Cellular | 89600 VSA Software Over-The-Air LTE FDD and 5GTF |
| Applications-Digital Video | 89600 VSA Software |
| Applications-General Purpose | AM/FM Tune and Listen Cable and Antenna Analysis Field Strength Measurement SCPI Code Compatibility Spectrogram Stimulus Response |
| Applications-Wireless Connectivity | 89600 VSA Software |
| Maximum Frequency | Combination Models (CAT + VNA + SA) Combination Models (CAT + VNA + SA) VNA ModelsVNA ModelsSA Models |
| 9 GHz | N9915AN9925AN9935A |
| N9915A | 9 GHz FieldFox microwave analyzer30 kHz to 9 GHz100 kHz to 9 GHzType-N (f) |
