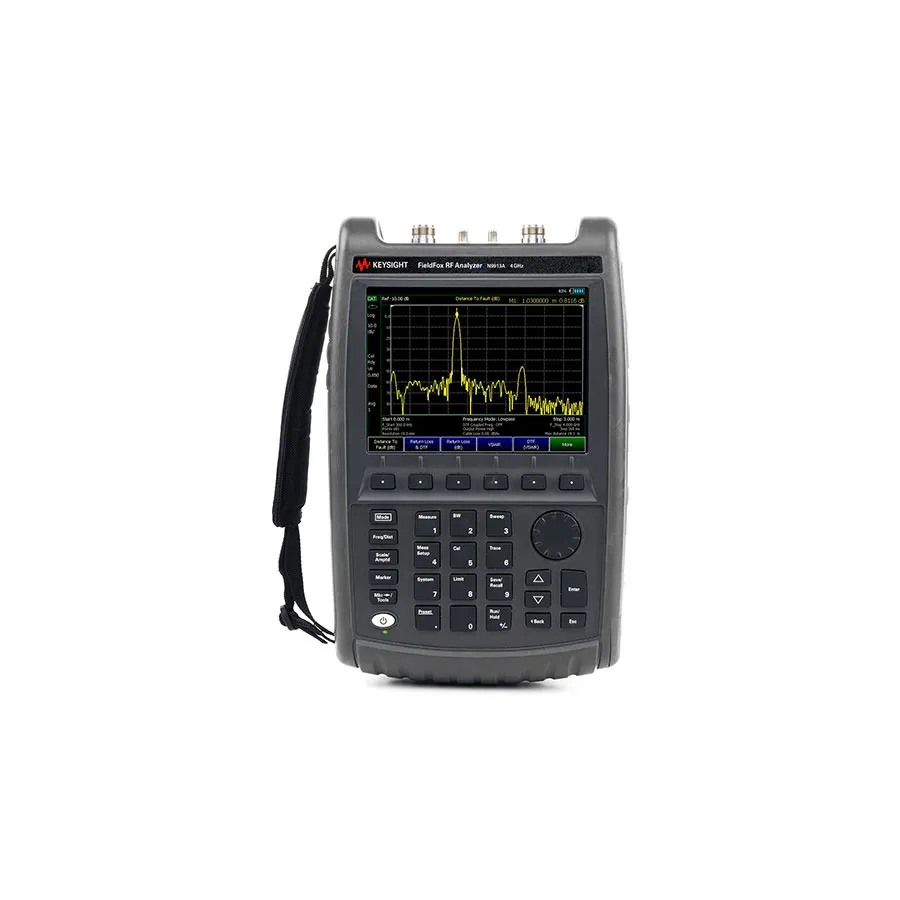

Keysight N9913A Cable and Antenna Analyzer
Request a quote
Keysight N9913A is a handheld cable and antenna analyzer with 4 GHz frequency range, integrated spectrum and VNA, DTF/TDR, and optional power meter.
Product details
| Model | N9913A |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight N9913A FieldFox is a handheld cable and antenna analyzer combining measurement of cable and antenna performance with optional capabilities for spectrum analysis and vector network analysis. Weighing only 6.6 lb (3.0 kg), it delivers professional-grade measurements in a portable platform designed for field deployment, routine maintenance, and troubleshooting in demanding environments.
Key Features
- Frequency range: 30 kHz to 4 GHz for cable and antenna analysis
- Simultaneous measurement of all four S-parameters for complete device characterization
- DTF and TDR measurements in a single sweep for efficient cable fault location
- Integrated spectrum analyzer with ±0.5 dB accuracy, no warm-up required
- Optional vector network analyzer (VNA) for impedance and return loss measurements
- QuickCal field calibration technology for simplified setup without mechanical standards
- Optional built-in power meter and vector voltmeter for extended capabilities
- Lightweight at 6.6 lb with 6.5-inch LCD display
Applications
- Cable and antenna performance testing
- Field strength and spectrum monitoring
- Impedance and return loss analysis
- Microwave and RF system troubleshooting
- Transmission line fault detection and TDR measurements
Specifications
| Frequency | 4 GHz |
| Series | A-Series |
| Backlight | Yes |
| Battery Life | 3.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 11.5 x 7.4 x 2.8 in. |
| Display | 6.5" Transflective Color LCD-LED |
| Dynamic Range | 100 dB |
| Frequency Range | 30 kHz to 4 GHz |
| Function | CAT, VNA, SA |
| Includes | AC/DC Adapter, Localized Power Cord, Rechargeable Li-Ion Battery, Soft Carrying Case with Backpack and Shoulder Strap, Quick Reference Guide |
| Number of Ports | 2 |
| Operating Temperature Range | 0 to 55°C |
| Resolution | 1 Hz |
