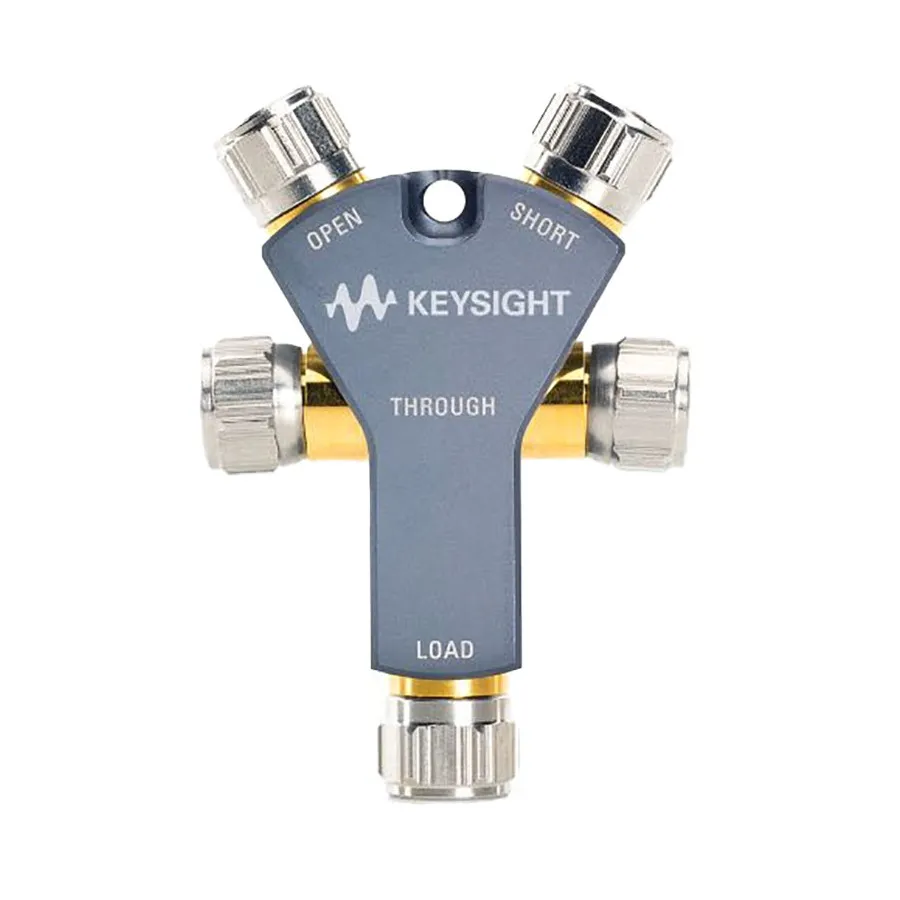

Keysight 85518A 4-in-1 OSLT Mechanical Calibration Kit
Request a quote
Keysight 85518A is a compact 4-in-1 OSLT mechanical calibration kit with Type-N male connectors, DC to 18 GHz, for cable and antenna analyzer calibration.
Product details
| Model | 85518A |
| Manufacturer | Keysight |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Keysight 85518A is a compact 4-in-1 mechanical calibration kit used for calibrating RF and microwave test equipment. It combines Open, Short, Load, and Through standards in a single small unit, ideal for field work and lab environments. The kit's through connector allows calibration of non-insertable devices such as cables and filters with male-male connections.
Key Features
- 4-in-1 OSLT (Open, Short, Load, Through) standards
- Type-N male connectors, 50 ohm impedance
- DC to 18 GHz frequency coverage
- Open phase error: 0 to 6 GHz = 2.0°, 6 to 9 GHz = 3.0°, 9 to 18 GHz = 4.0°
- Short phase error: 0 to 6 GHz = 1.5°, 6 to 9 GHz = 2.5°, 9 to 18 GHz = 3.0°
- Load return loss: 0 to 6 GHz = 42 dB, 6 to 9 GHz = 35 dB, 9 to 18 GHz = 32 dB
- Compact size: 106 x 72 x 22 mm
Applications
- Cable analyzer and antenna analyzer calibration
- Network analyzer and impedance analyzer calibration
- RF component characterization
- High-frequency measurement systems
Specifications
| Type | Mechanical OSLT |
| Frequency | DC to 18GHz |
| Connector Type | Type-N(m/m) |
| Number of Ports | NA |
| Impedance | 50 Ohm |
| Series | 8551xA Series |
