Kaelus IPA-0901A PIM Analyzer
Kaelus IPA-0901A is a rugged, battery-powered PIM analyzer for EGSM900 band with remote WiFi control and residual PIM below -117dBm.
Product details
| Model | IPA-0901A |
| Manufacturer | Kaelus |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview

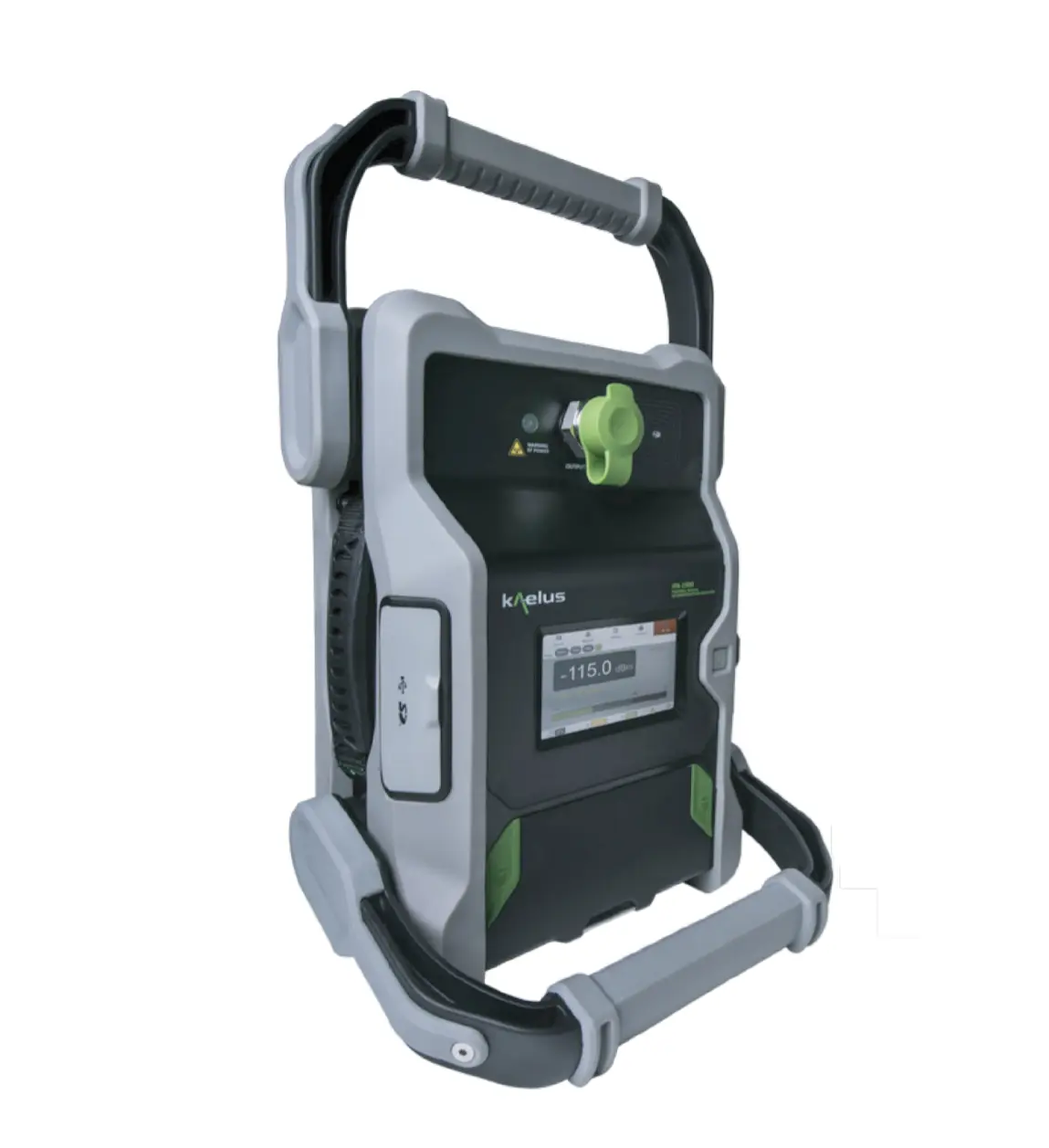

The Kaelus iPA Series is a battery-powered Passive Intermodulation (PIM) analyzer designed for mobile network testing and troubleshooting. This IEC-compliant instrument is rugged and portable, engineered for tower climbers and field technicians working in challenging environments. It features a 4.3-inch touch screen for local control and supports remote operation via WiFi-enabled devices such as tablets, smartphones, and laptops.
The analyzer supports testing at tower top, tower base, rooftop, and in-building locations, making it ideal for comprehensive site verification of cellular and Distributed Antenna Systems (DAS).
Key Features
- Rugged and reliable design optimized for tower climbers
- Fully configurable frequencies, output powers, and intermodulation products
- Remote control via WiFi with any WiFi-enabled device (tablet, phone, laptop)
- Local touch screen interface (4.3 inches)
- Extensive reporting capabilities for site documentation
- Multiple measurement modes: spectrum monitor, frequency sweep, and time trace
- Range to Fault (RTF) module compatible for identifying fault locations
- Battery-powered operation for portability and field flexibility
Applications
- Tower-top PIM testing for cellular site qualification
- Base-of-tower and rooftop antenna system testing
- In-building Distributed Antenna System (DAS) testing and commissioning
- Identification and elimination of passive intermodulation sources
- Network operator performance optimization and site verification
Included Accessories
- Lithium-ion battery pack (25.9V, 2600mAh, 67Wh)
- Battery charger (29.4VDC, 1.2A output)
Specifications
| Measurement method | Reverse (reflected) PIM, 3rd and 5th order. (iPA-2100A 3rd, 5th and 7th order) |
| Residual PIM | < -117dBm/-160dBc maximum (<-125dBm/-168dBc typical) at 2 x 20W |
| Interface Ports | 1x RF output (7-16 DIN female), 1x USB 2.0 Host, 1x USB 2.0 Slave, 1x SD 1x monitor port (SMB female), 1x SMA-RP (Wi-Fi external antenna) |
| User Interface | Local - touch screen display 4.3in (109mm) Remote - tablet, computer, any Wi-Fi enabled user device with web browser |
| Return Loss Alarm | Automatic detection and shut down when high RL is detected |
| Transmit Frequencies | See model table |
| Frequency Increment | 100kHz |
| Frequency Accuracy | ± 5ppm maximum, aging ± 1ppm maximum after first year |
| Power Per Tone (adjustable) | All A series Models 0.1 to 20W (+20 to +43dBm in 1dB increments) iPA-0600D 100mW to 40W (+20 to +46dBm in 1dB increments) iPA-0707D 1 to 40W (+30 to +46dBm in 1dB increments) |
| Power Accuracy (per tone) | ± 0.5dB maximum |
| Receive Band (100kHz steps) | See model table |
| Measurement Noise Floor | < -128dBm |
| Measurement Range | -50dBm to -128dBm |
| Battery Power | 25.9 VDC, 2600 mAh, 67Wh Lithium Ion battery packs (removable) |
| Battery Operating Time | Depends on usage, 2 hr minimum per battery pack |
| Battery Charger | Output: 29.4 VDC, 1.2 Amp |
| Weight | 12kg 26lbs |
| Temperature Range | -10ºC to +45ºC +14°F to +113°F |
| Ingress Protection | IP54 IP67 when enclosed in optional hard case |
| Operational Humidity | 5% to 95% RH non-condensing |
| Storage Temperature Range | -10°C to +60°C +14°F to +140°F |
| Mechanical Shock | 40G shock rating |
| iPA-0901A | EGSM900925-935MHz945-960MHz880-915MHzRTF-1000 |
