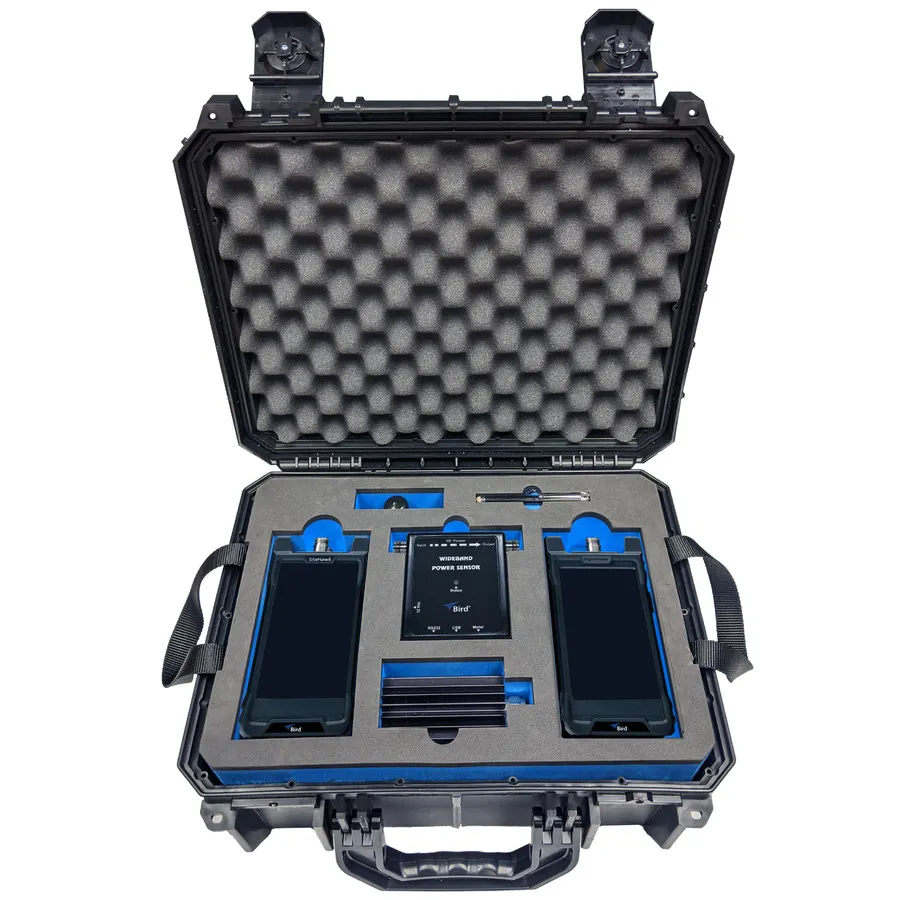

Bird SK-SH-KITA Cable and Antenna Analyzer
Request a quote
Bird SK-SH-KITA is a portable cable and antenna analyzer (1 MHz to 6 GHz) with Angle of Arrival technology for RF interference hunting and triangulation.
Product details
| Model | SK-SH-KITA |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Bird SK-SH-KITA is a comprehensive RF test kit combining a portable cable and antenna analyzer (1 MHz to 6 GHz) with a spectrum analyzer featuring Angle of Arrival (AOA) technology (9 kHz to 6 GHz). This kit enables technicians and engineers to locate RF interference sources through triangulation and provides complete equipment for cable and antenna system installation, troubleshooting, and maintenance in wireless, military, aerospace, and public safety applications.
Key Features
- Frequency range 1 MHz to 6 GHz for cable and antenna testing
- FDR (Frequency Domain Reflectometry) measurement for cable assessment
- Distance to Fault, return loss, and cable loss measurements
- Angle of Arrival (AOA) technology for RF interference source triangulation
- OpenStreetMap integration for interference location mapping
- Two-level internal preamplifier
- Spectrum analysis 9 kHz to 6 GHz with multiple trace displays
- Predefined measurements: Channel Power, ACPR, OBW, Phase Noise, Field Strength, FM Demodulation
Applications
- RF interference hunting and source location
- Cellular system installation and maintenance
- Land mobile radio systems
- Wi-Fi network testing and interference analysis
- Wireless service provider operations
- Military and aerospace RF systems
- Public safety communications
Included Accessories
- SK-6000-TC, 1 MHz to 6 GHz Cable and Antenna Analyzer
- SH-60S-AOA, 9 kHz to 6 GHz Spectrum Analyzer with AOA
- 5017D, 100 MHz - 1.3 GHz Wideband Power Sensor
- 25-T-MN, 25W RF Termination
- SK-CAL-MN-C6, Calibration Combo
- 4240-401, Adapter Kit
- Hard Carrying Case
Specifications
| Frequency | 6 GHz |
| Series | SK-SH Series |
| Battery Type | Lithium-Ion |
| Dynamic Range | 38 dB |
| Frequency Range | 1 MHz to 6 GHz |
| Function | CAT, SA |
| Includes | SiteHawk SK‑6000‑TC cable & antenna analyzer, SignalHawk SH‑60S‑TC spectrum analyzer, 5017D,AV power sensor (100 MHz–1.3 GHz), 25 W RF termination, Calibration combo, Adapter kit, Hard carrying case |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 50°C |
