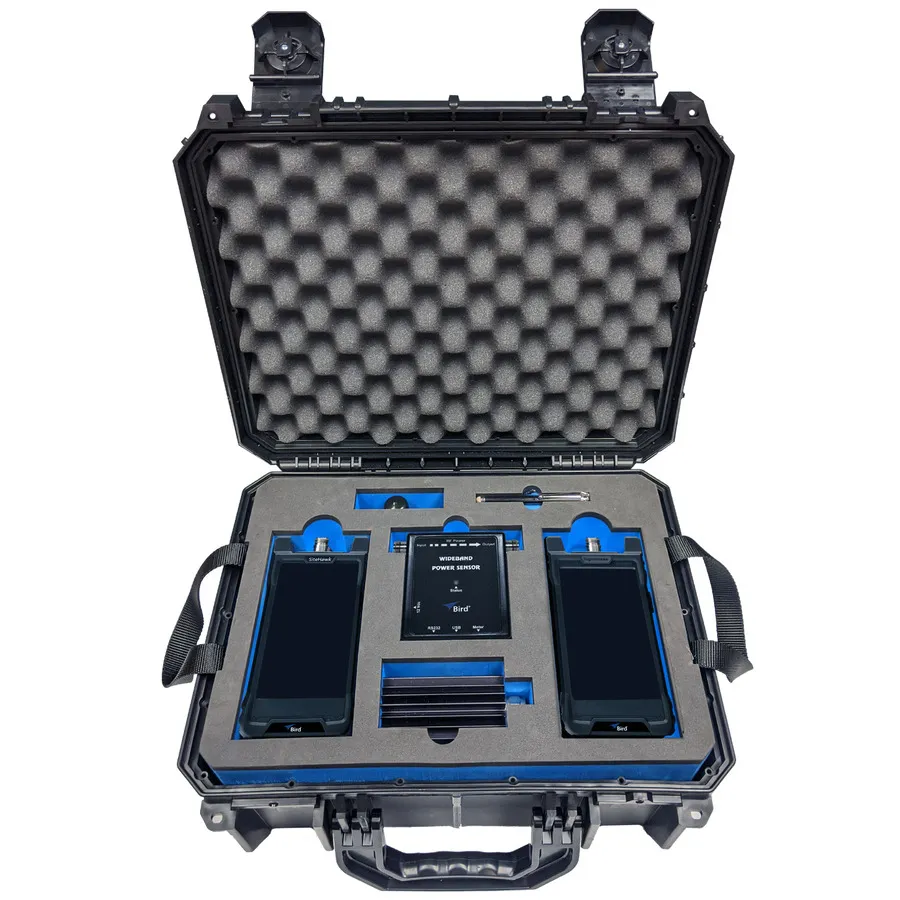

Bird SK-SH-KIT Cable and Antenna Analyzer
Request a quote
Bird SK-SH-KIT is a portable cable and antenna analyzer covering 1 MHz to 6 GHz with FDR measurements and spectrum analysis for RF testing and maintenance.
Product details
| Model | SK-SH-KIT |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Bird SK-SH-KIT is a comprehensive RF test kit combining a portable cable and antenna analyzer (1 MHz to 6 GHz) with a spectrum analyzer (9 kHz to 6 GHz). This kit provides field technicians and engineers with all necessary equipment for installation, troubleshooting, and maintenance of coaxial cable and antenna systems in wireless, military, aerospace, and public safety applications.
Key Features
- Frequency range 1 MHz to 6 GHz for cable and antenna testing
- FDR (Frequency Domain Reflectometry) measurement for cable assessment
- Distance to Fault, return loss, and cable loss measurements
- Spectrum analysis 9 kHz to 6 GHz with real-time monitoring
- Multiple trace displays: standard trace, spectrogram, or both
- Predefined measurements: Channel Power, ACPR, OBW, Phase Noise, Field Strength, FM Demodulation
- Portable handheld configuration
Applications
- Cellular system installation and maintenance
- Land mobile radio systems
- Wi-Fi network testing
- Wireless service provider operations
- Military and aerospace RF systems
- Public safety communications
Included Accessories
- SK-6000-TC, 1 MHz to 6 GHz Cable and Antenna Analyzer
- SH-60S-TC, 9 kHz to 6 GHz Spectrum Analyzer
- 5017D, 100 MHz - 1.3 GHz Wideband Power Sensor
- 25-T-MN, 25W RF Termination
- SK-CAL-MN-C6, Calibration Combo
- 4240-401, Adapter Kit
- Hard Carrying Case
Specifications
| Frequency | 6 GHz |
| Series | SK-SH Series |
| Battery Type | Lithium-Ion |
| Dynamic Range | 38 dB |
| Frequency Range | 1 MHz to 6 GHz |
| Function | CAT, SA |
| Includes | SiteHawk SK‑6000‑TC cable/antenna analyzer (1 MHz–6 GHz), SignalHawk SH‑60S‑AOA spectrum analyzer (9 kHz–6 GHz) with AoA, Bird 5017D/5017D‑AV power sensor (100 MHz–1.3 GHz), 25 W RF termination load, Calibration combo (SK‑CAL‑MN‑C6), Adapter kits (Type‑N |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 50°C |
