Bird RH-RR-KIT Cable and Antenna Analyzer
Request a quote
Bird RailHawk analyzes RF cables and antennas with FDR pinpointing, distance-to-fault measurement, and integrated power sensors for railway communications.
Product details
| Model | RH-RR-KIT |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview

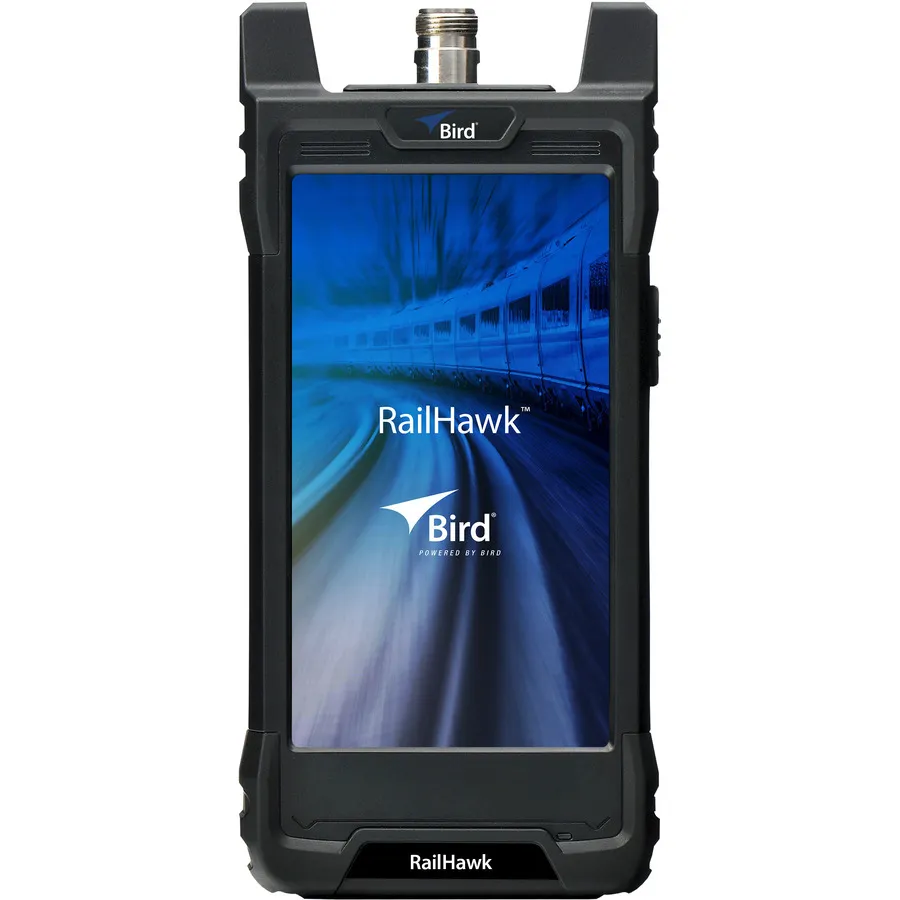

The Bird RailHawk is a comprehensive cable and antenna analyzer kit designed specifically for railway network maintenance and communications systems. This kit combines proven antenna and cable testing functionality with RF power measurement sensors and all necessary adapters and terminations in a single rugged transit case.
Key Features
- Frequency Domain Reflectometry (FDR) pinpoints RF cable, connector, and antenna faults at operating frequency
- Distance to Fault (DTF) mode plots VSWR or Return Loss at each distance point along cable and antenna systems
- Cable loss function measures insertion loss over specified frequency ranges
- Integrated 350 MHz - 4 GHz RF power sensor (0.15 to 150W range)
- OTG USB communication port for connection to external sensors, storage, and charging
- Designed for railway UHF analog/digital radio systems, GSM-R, and LTE-R communications
- User-friendly interface suitable for novice and expert technicians
Kit Components
- RailHawk cable and antenna analyzer
- 350 MHz - 4 GHz RF power sensor (0.15 to 150W)
- Calibration combo (SK-CAL-MN-C6)
- Adapter kits (4240-401 and 4240-550 with 7/16" DIN)
- 25W RF termination load (25-T-MN)
- Hard carrying case
Applications
- Railway network cable and antenna maintenance
- UHF analog and digital radio system verification
- GSM-R and LTE-R communication network testing
- Redundant communication system reliability assurance
- Installation closeout and commissioning verification
Specifications
| Frequency | 6 GHz |
| Series | RailHawk Series |
| Battery Life | 10 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 7.7 x 3.6 x 2.4 in. |
| Display | 5.5" 720p |
| Dynamic Range | 38 dB |
| Frequency Range | 1 MHz to 6 GHz |
| Includes | Calibration Combo, Stylus, AC Adapter (12 Vdc Output), Hard Carrying Case, Adapter Kit, Adapter Kit, 7/16" DIN, RF Cable, 10 feet long, USB Drive, USB Adapter |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1000 Hz |
