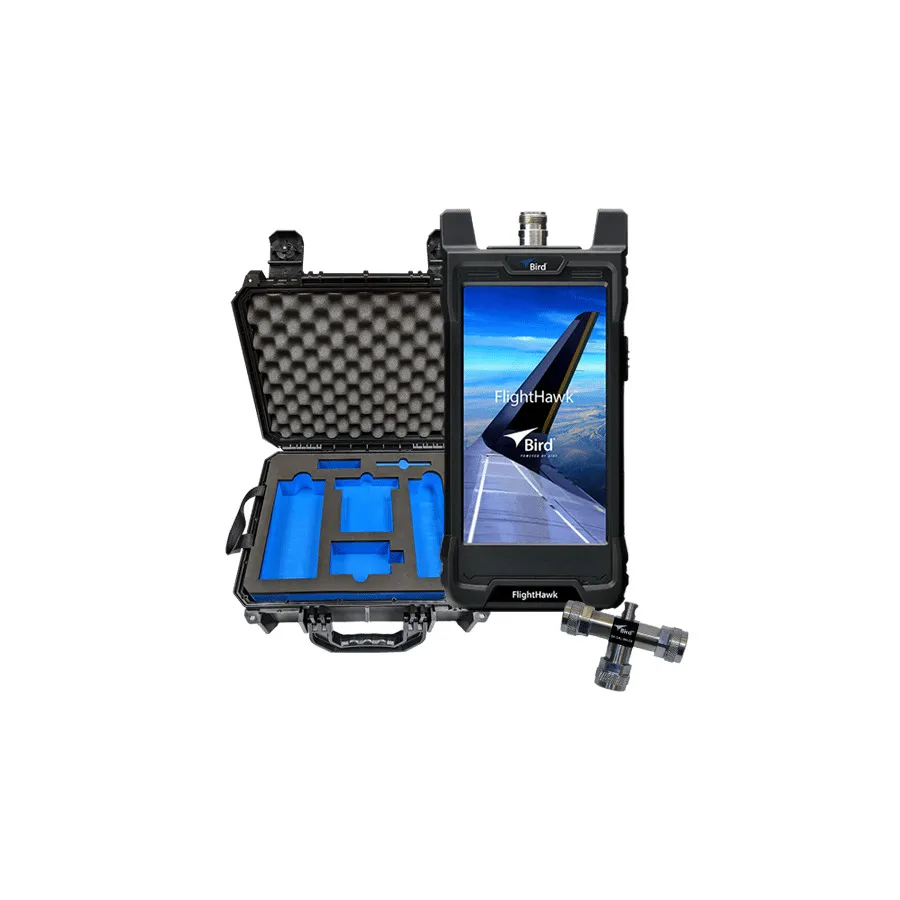

Bird FH-AV-BASIC Cable and Antenna Analyzer
Request a quote
Bird FH-AV-BASIC FlightHawk cable and antenna analyzer with FDR measurement, 1MHz-6GHz frequency range, and VSWR/return loss analysis for aviation RF systems.
Product details
| Model | FH-AV-BASIC |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Bird FH-AV-BASIC FlightHawk Cable and Antenna Analyzer is a portable RF testing instrument designed for aviation maintenance and field troubleshooting. It uses Frequency Domain Reflectometry (FDR) technology to assess the health of RF cables, connectors, and antenna systems at the frequency of operation, helping technicians locate problems before they cause aircraft on-ground (AOG) downtime.
Key Features
- Frequency Domain Reflectometry (FDR) for precision return loss vs. frequency measurement
- Distance-to-Fault (DTF) mode for locating cable and connector problems
- Return loss vs. distance plotting
- VSWR (Voltage Standing Wave Ratio) measurement
- Cable loss measurement over specified frequency ranges
- 5.5-inch 720p display for clear data visualization
- OTG USB communication port for sensors and device charging
- Includes Bird RF Meter App
Applications
- Aviation RF cable and antenna testing
- Cable system fault location and diagnostics
- Antenna system health assessment
- Connector and cable problem identification
Included Accessories
- 5017D-AV 100 MHz - 1.3 GHz Wideband Power Sensor
- 25-T-MN 25W RF Termination
- SK-CAL-MN-C6 Calibration Combo
- 4240-401 Adapter Kit
- 4240-500-23 N(M) – SMA(M) Adapter
- 4240-500-10 N(M) – SMA(F) Adapter
- 4240-443 Avionics Adapter
- 4240-444 Avionics Adapter
- Hard Carrying Case
Specifications
| Frequency | 6 GHz |
| Series | FlightHawk Series |
| Battery Life | 10 hrs. |
| Battery Type | Lithium-Ion |
| Certifications | CE, EMC: Standard EN 61326-1:2006 |
| Connector Type | Type-N (f), USB-C |
| Dimensions | 7.7 x 3.6 x 2.4 in. |
| Display | 5.5" 720p |
| Dynamic Range | 30 dB |
| Frequency Range | 1 MHz to 6 GHz |
| Includes | Cable & Antena Analyzer, Calibration Combo, Stylus, AC Adapter (12 Vdc Output), Hard Carrying Case, RF Cable(10ft long), USB Drive, USB Adapter |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1000 Hz |
