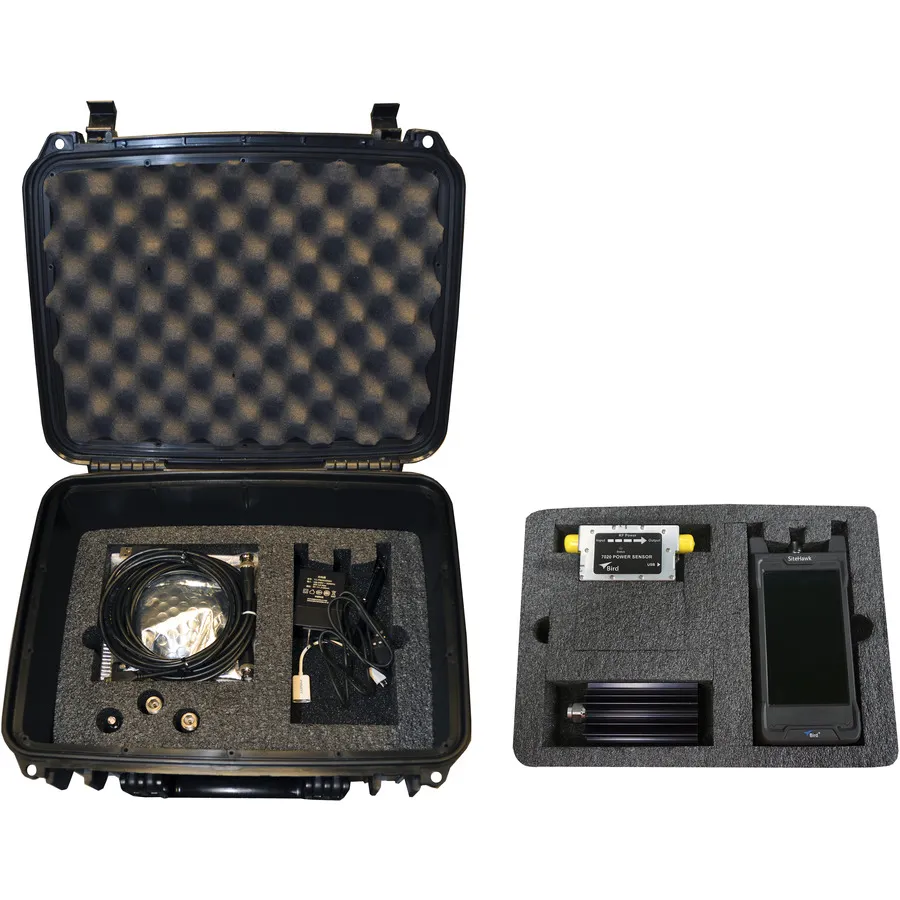

Bird 7003A001-8 Cable and Antenna Analyzer
Request a quote
Bird 7003A001-8 is a cable and antenna test kit with SK-4500-TC SiteHawk analyzer (1 MHz-4.5 GHz) and 5017D Wideband Power Sensor (500 mW-500 W average, 1300 W peak).
Product details
| Model | 7003A001-8 |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Bird 7003A001-8 is a comprehensive cable and antenna test kit designed for RF technicians and system engineers. It combines the SK-4500-TC SiteHawk analyzer, which operates from 1 MHz to 4.5 GHz, with the 5017D Wideband Power Sensor capable of measuring average power from 500 mW to 500 W (peak 1300 W). This kit provides thorough diagnostics for cable and antenna installations with high-power measurement capability.
Key Features
- Measure Match function to determine if cable and antenna systems have problems
- Distance to Fault measurement to locate the source of system issues
- High-power RF measurements from 500 mW to 500 W average with 1300 W peak capability
- 5.5-inch 720p touchscreen display for clear field visibility
- Suitable for both low and high-power RF system testing
Applications
- Cable and antenna system diagnostics and troubleshooting
- RF installation validation and commissioning
- High-power RF system testing and maintenance
- Base station and tower site evaluation
Included Accessories
- SK-CAL-MN-C6 Calibration Combo
- SK-TP-112 Stylus
- SK05T-1200300Z AC Adapter (12 Vdc Output)
- 5000-035 Hard Carrying Case
- 4240-401 Adapter Kit, Interseries
- 5A2970-16-120B RF Cable, 10 feet long
- 5A2745-1 USB Drive
- SK-CONN-OTG-2 USB Adapter
Specifications
| Frequency | 4.5 GHz |
| Series | 7003A001 Series |
| Battery Life | 10 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 7.7 x 3.6 x 2.4 in. |
| Display | 5.5" 720p |
| Dynamic Range | 38 dB |
| Frequency Range | 1 MHz to 4.5 GHz |
| Includes | 1 MHz - 4.5 GHz Cable and Antenna Analyzer, 25 MHz to 1.0 GHz Wideband Power Sensor, Calibration Combo, Stylus, AC Adapter (12 Vdc Output), Hard Carrying Case, Adapter Kit (Interseries), Load, RF Cable (10ft Long), USB Drive, USB Adapter |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1000 Hz |
