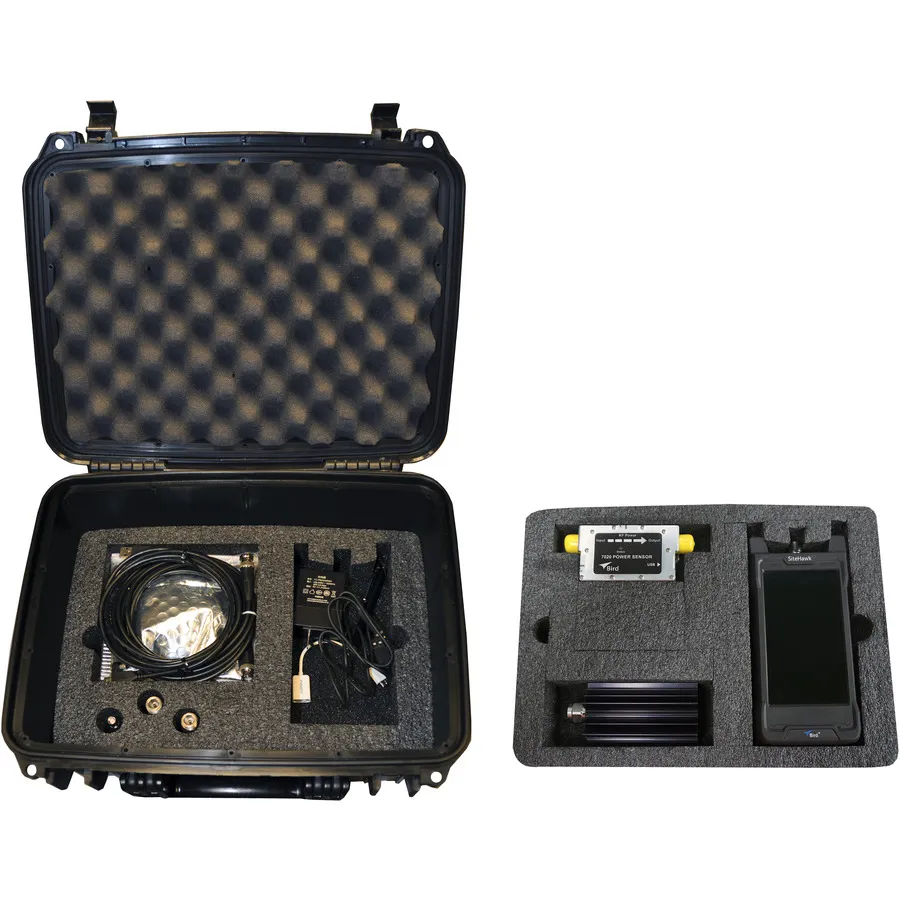

Bird 7003A001-7-6 Cable and Antenna Analyzer
Request a quote
Bird 7003A001-7-6 is a cable and antenna test kit with SK-6000-TC SiteHawk analyzer (1 MHz-6 GHz) and 7020-1-030301 Wideband Power Sensor (25 MHz-1.0 GHz) for RF system diagnostics.
Product details
| Model | 7003A001-7-6 |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Bird 7003A001-7-6 is a comprehensive cable and antenna test kit designed for RF technicians and system engineers. It combines the SK-6000-TC SiteHawk analyzer, which operates from 1 MHz to 6 GHz, with a 7020-1-030301 Wideband Power Sensor covering 25 MHz to 1.0 GHz. This kit provides thorough diagnostics for cable and antenna installations, enabling technicians to identify and resolve system problems efficiently.
Key Features
- Measure Match function to determine if cable and antenna systems have problems
- Distance to Fault measurement to locate the source of system issues
- RF power measurements with the included 25 MHz to 1.0 GHz wideband power sensor
- 5.5-inch 720p touchscreen display for clear field visibility
- Extended frequency coverage up to 6 GHz for modern wireless systems
Applications
- Cable and antenna system diagnostics and troubleshooting
- RF installation validation and commissioning
- Wireless network maintenance and field testing
- Base station and tower site evaluation
Included Accessories
- SK-CAL-MN-C6 Calibration Combo
- SK-TP-112 Stylus
- SK05T-1200300Z AC Adapter (12 Vdc Output)
- 5000-035 Hard Carrying Case
- 4240-401 Adapter Kit, Interseries
- 5A2970-16-120B RF Cable, 10 feet long
- 5A2745-1 USB Drive
- SK-CONN-OTG-2 USB Adapter
Specifications
| Frequency | 6 GHz |
| Series | 7003A001 Series |
| Battery Life | 10 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 7.7 x 3.6 x 2.4 in. |
| Display | 5.5" 720p |
| Dynamic Range | 38 dB |
| Frequency Range | 1 MHz to 6 GHz |
| Includes | 1 MHz - 6 GHz Cable and Antenna Analyzer, 25 MHz - 1.0 GHz Wideband Power Sensor, Calibration Combo, Stylus, AC Adapter (12 Vdc Output), Hard Carrying Case, Adapter Kit (Interseries), Load, RF Cable (10ft Long), USB Drive, USB Adapter |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1000 Hz |
