Bird 7003A001-7 Cable and Antenna Analyzer
Request a quote
Bird SK-4500-TC antenna and cable analyzer, 1MHz-4.5GHz range, includes 7020-1-030301 wideband power sensor for 25MHz-1GHz measurements.
Product details
| Model | 7003A001-7 |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Bird SiteHawk cable and antenna analyzer is a portable field instrument for RF technicians and engineers to diagnose and troubleshoot cable and antenna system faults. The 7003A001-7 kit includes the SK-4500-TC analyzer operating from 1 MHz to 4.5 GHz, paired with the 7020-1-030301 wideband power sensor for low to mid-frequency RF measurements.
Key Features
- Frequency range: 1 MHz to 4.5 GHz analyzer, 25 MHz to 1.0 GHz sensor
- Measure Match function to identify impedance problems
- Distance to Fault measurement for precise fault localization
- Wideband power sensor for RF power measurements
- 5.5-inch 720p touchscreen display
- Reflection coefficient and standing wave ratio analysis
Applications
- Cellular tower and antenna system maintenance
- Wireless network installation and commissioning
- RF cable system diagnostics and troubleshooting
- Power monitoring in transmission lines
- LTE and lower-frequency band testing
- Field testing and preventive maintenance programs

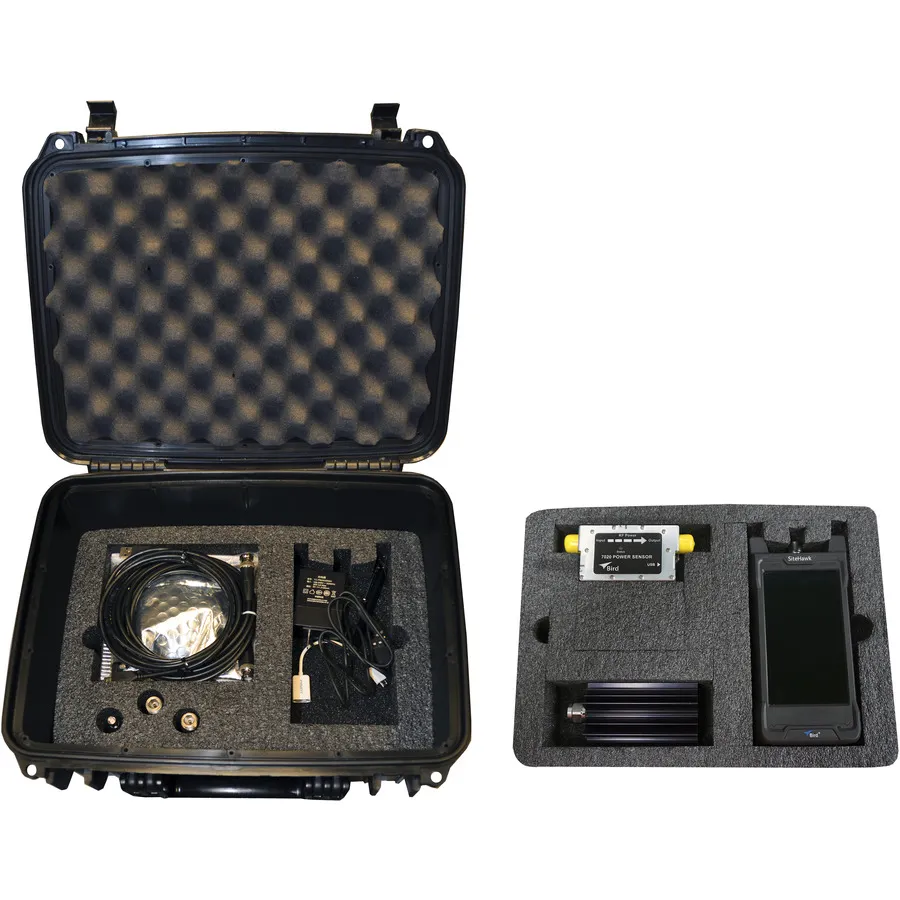

Included Accessories
- SK-CAL-MN-C6 Calibration Combo
- SK-TP-112 Stylus
- SK05T-1200300Z AC Adapter (12 Vdc Output)
- 5000-035 Hard Carrying Case
- 4240-401 Adapter Kit, Interseries
- 5A2970-16-120B RF Cable, 10 feet long
- 5A2745-1 USB Drive
- SK-CONN-OTG-2 USB Adapter
Specifications
| Frequency | 4.5 GHz |
| Series | 7003A001 Series |
| Battery Life | 10 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 7.7 x 3.6 x 2.4 in. |
| Display | 5.5" 720p |
| Dynamic Range | 38 dB |
| Frequency Range | 1 MHz to 4.5GHz |
| Includes | 1 MHz - 4.5 GHz Cable and Antenna Analyzer, 25 MHz - 1.0 GHz Wideband Power Sensor, Calibration Combo, Stylus, AC Adapter (12 Vdc Output), Hard Carrying Case, Adapter Kit (Interseries), Load, RF Cable (10ft Long), USB Drive, USB Adapter |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1000 Hz |
