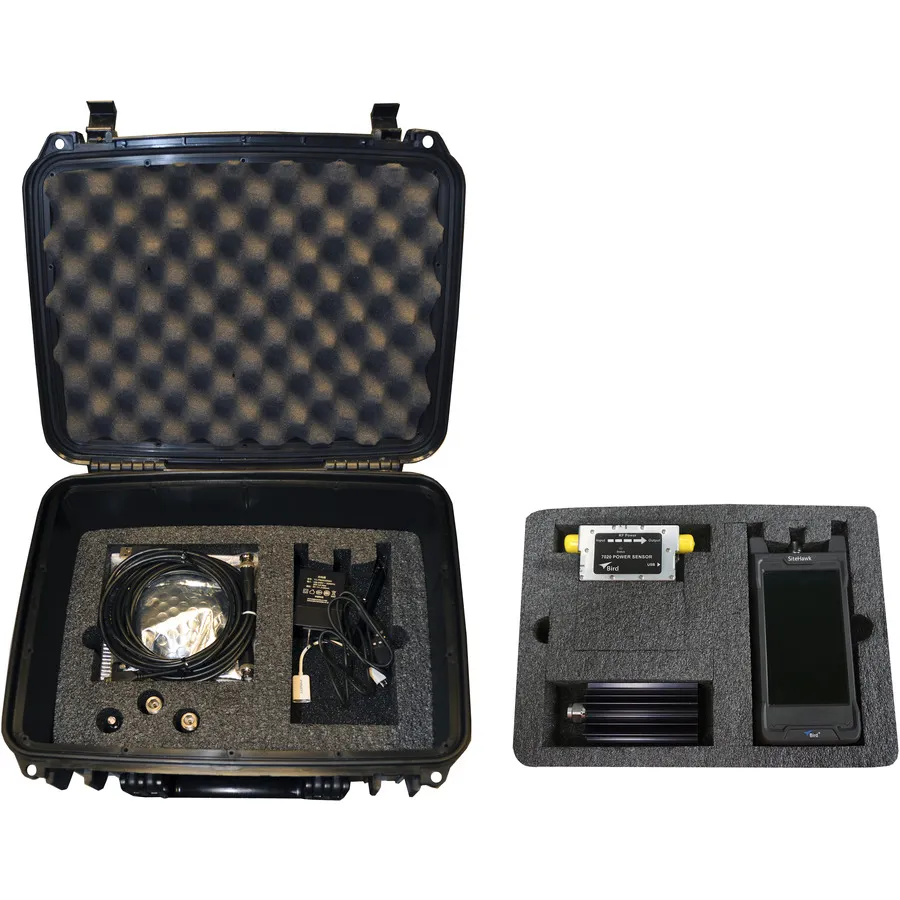

Bird 7003A001-19 Cable and Antenna Analyzer
Request a quote
Bird 7003A001-19 Cable and Antenna Test Kit with impedance measurement, distance-to-fault localization, and RF power measurement using the 5019D sensor.
Product details
| Model | 7003A001-19 |
| Manufacturer | Bird |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Bird 7003A001-19 is a comprehensive cable and antenna test kit designed for RF engineers and technicians. It combines the SiteHawk SK-4500-TC analyzer with the 5019D wideband power sensor to provide cable impedance measurement, fault location, and RF power analysis in a single integrated solution.
Key Features
- Measure Match function to diagnose cable and antenna system problems
- Distance to Fault measurement to locate problem sources
- Multiple RF power measurement capabilities
- 5.5-inch 720p display for easy reading
- Comprehensive RF power sensor (5019D: 100mW – 100W average, 260W peak)
Included Accessories
- SK-CAL-MN-C6 Calibration Combo
- SK-TP-112 Stylus
- SK05T-1200300Z AC Adapter (12 Vdc output)
- 5000-035 Hard Carrying Case
- 4240-401 Adapter Kit, Interseries
- 5A2970-16-120B RF Cable, 10 feet long
- 5A2745-1 USB Drive
- SK-CONN-OTG-2 USB Adapter
Specifications
| Frequency | 1 GHz |
| Series | 7003A001 Series |
| Battery Life | 10 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 7.7 x 3.6 x 2.4 in. |
| Display | 5.5" 720p |
| Dynamic Range | 38 dB |
| Frequency Range | 25 MHz to 1 GHz |
| Includes | 1 MHz - 4.5 GHz Cable and Antenna Analyzer, Calibration Combo, Stylus, AC Adapter (12 Vdc Output), Hard Carrying Case, Adapter Kit (Interseries), Load, RF Cable (10ft Long), USB Drive, USB Adapter |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1000 Hz |
