Anritsu S820E/0740 Cable and Antenna Analyzer
Request a quote
Anritsu S820E/0740 is a handheld cable and antenna analyzer with 1MHz-40GHz range, supporting VNA and VVM modes for RF measurements.
Product details
| Model | S820E/0740 |
| Manufacturer | Anritsu |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview

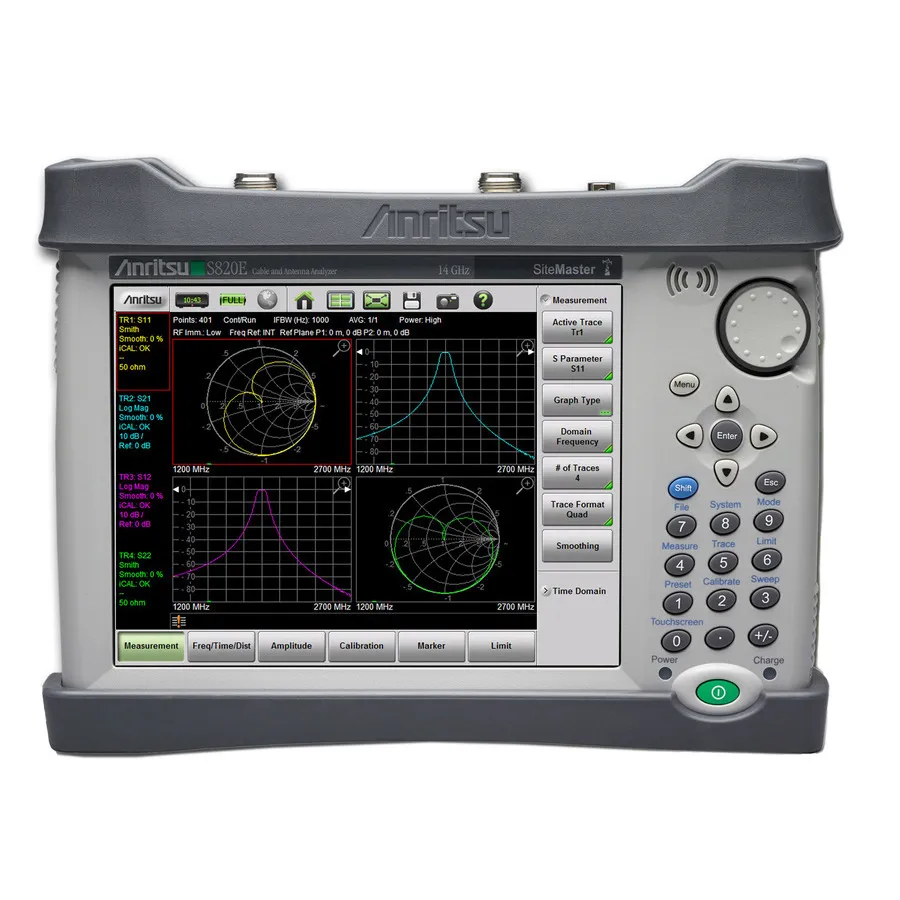

The Anritsu S820E/0740 is a handheld cable and antenna analyzer delivering benchtop microwave performance in a compact, portable package. Covering 1 MHz to 40 GHz with ruggedized K(m) ports compatible with 3.5mm and SMA connectors, this instrument provides advanced measurement capabilities for field technicians and engineers working with RF systems.
Key Features
- Frequency range: 1 MHz to 40 GHz
- Ruggedized K(m) ports compatible with 3.5mm and SMA
- Standard 1-port measurements: Return Loss, VSWR, Cable Loss, Smith Chart, Phase, Distance-to-fault
- Standard 2-port measurements: Transmission Measurement and Swept Cable Loss
- Optional Vector Network Analyzer (VNA) with S-parameter and quad-display capabilities
- Optional Vector Voltmeter (VVM) with ratio capability and flexible measurement formats
- Video Inspection Probe (VIP) Mode for fiber connector verification per IEC 61300-3-35
- Patented RF interference rejection for accurate measurements in high RF activity environments
- 8.4-inch display with user-configurable trace formats
- Multiple file save formats: S2P, .svna, .png, CSV, TXT
Applications
- Cable and waveguide measurements and characterization
- Antenna analysis and alignment
- Component testing and verification
- Field troubleshooting and system commissioning
- Fiber connector inspection and Pass/Fail testing
- RF interference assessment in high-activity environments
Included Accessories
- Soft carrying case
- Rechargeable Li-Ion battery (7500 mAh)
- AC-DC adapter with power cable
- Ethernet cable (2.13m/7ft)
- USB A/5-pin mini-B cable (10ft)
- Automotive power adapter (12VDC, 60W)
- Screen protector film (factory installed + spare)
- Certificate of calibration and conformance
Specifications
| Frequency | 40 GHz |
| Series | SiteMaster Series |
| Backlight | Yes |
| Battery Life | 5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Universal K(m) |
| Dimensions | 10.7 x 7.8 x 3.6 in. |
| Display | 8.4" Daylight Viewable Color LCD |
| Dynamic Range | 110 dB |
| Frequency Range | 1 MHz to 40 GHz |
| Function | CAT |
| Includes | Soft Carrying Case, Ethernet Cable (7 ft), Stylus with Coiled Tether, USB A/5-pin mini-B Cable (10 ft), Rechargeable Li-Ion Battery, 7500 mAh, Automotive Power Adapter (12 VDC) (60 W), AC-DC Adapter with power cable, Certificate of Calibration and Conform |
| Number of Ports | 2 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1 Hz |
