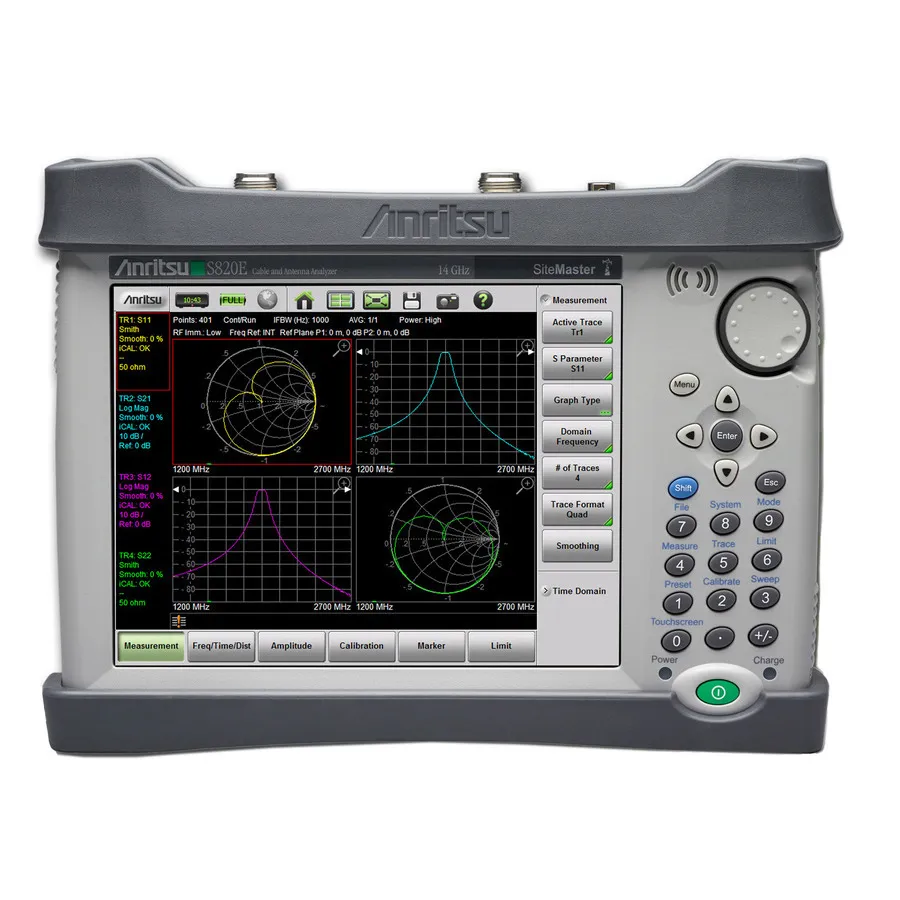

Anritsu S820E/0730 Cable and Antenna Analyzer
Request a quote
Anritsu S820E/0730 handheld cable and antenna analyzer (1–30 GHz) with vector network analyzer and voltmeter for advanced RF component testing.
Product details
| Model | S820E/0730 |
| Manufacturer | Anritsu |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu S820E/0730 is a handheld microwave cable and antenna analyzer operating from 1 MHz to 30 GHz. It delivers benchtop-class performance in a portable package with ruggedized K(m) connectors (compatible with 3.5mm and SMA). The instrument includes standard Video Inspection Probe (VIP) Mode for fiber connector verification per IEC 61300-3-35, plus optional Vector Network Analyzer (VNA) and Vector Voltmeter (VVM) capabilities.
Key Features
- Frequency range: 1 MHz to 30 GHz with ruggedized K(m) connectors (3.5mm and SMA compatible)
- Standard 1-port measurements: Return Loss, VSWR, Cable Loss, Smith Chart, Phase, Distance-to-fault analysis
- Standard 2-port measurements: Transmission measurement and swept cable loss with external sensor
- Video Inspection Probe (VIP) Mode for fiber connector inspection and Pass/Fail testing
- Patented RF interference rejection for accurate measurements in high RF activity environments
- Optional Vector Network Analyzer (VNA) with fully reversing sweep and simultaneous 4 S-Parameter measurement
- Optional Vector Voltmeter (VVM) with error-corrected reflection and transmission measurement
- 8.4-inch LCD display with user-configurable quad trace format
- Multiple file save formats: S2P, .svna, .png, .csv, .txt
Applications
- Cable and antenna testing in telecommunications and RF systems
- Field installation and maintenance of RF components
- Fiber optic connector inspection and certification
- Distance-to-fault testing for cable assembly diagnostics
Included Accessories
- Soft carrying case
- Stylus with coiled tether
- Rechargeable Li-Ion battery (7500 mAh)
- AC-DC adapter with power cable
- Ruggedized K(f) to N(f) adapters (2 pcs)
- Ethernet cable (2.13m)
- USB A/mini-B cable (10ft)
- Automotive power adapter (12 VDC, 60W)
- Screen protector film (factory installed and spare)
- Certificate of calibration and conformance
Specifications
| Frequency | 30 GHz |
| Series | SiteMaster Series |
| Backlight | Yes |
| Battery Life | 5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Universal K(m) |
| Dimensions | 10.7 x 7.8 x 3.6 in. |
| Display | 8.4" Daylight Viewable Color LCD |
| Dynamic Range | 110 dB |
| Frequency Range | 1 MHz to 30 GHz |
| Function | CAT |
| Includes | Soft Carrying Case, Ethernet Cable (7 ft), Stylus with Coiled Tether, USB A/5-pin mini-B Cable (10 ft), Rechargeable Li-Ion Battery, 7500 mAh, Automotive Power Adapter (12 VDC) (60 W), AC-DC Adapter with power cable, Certificate of Calibration and Conform |
| Number of Ports | 2 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 1 Hz |
