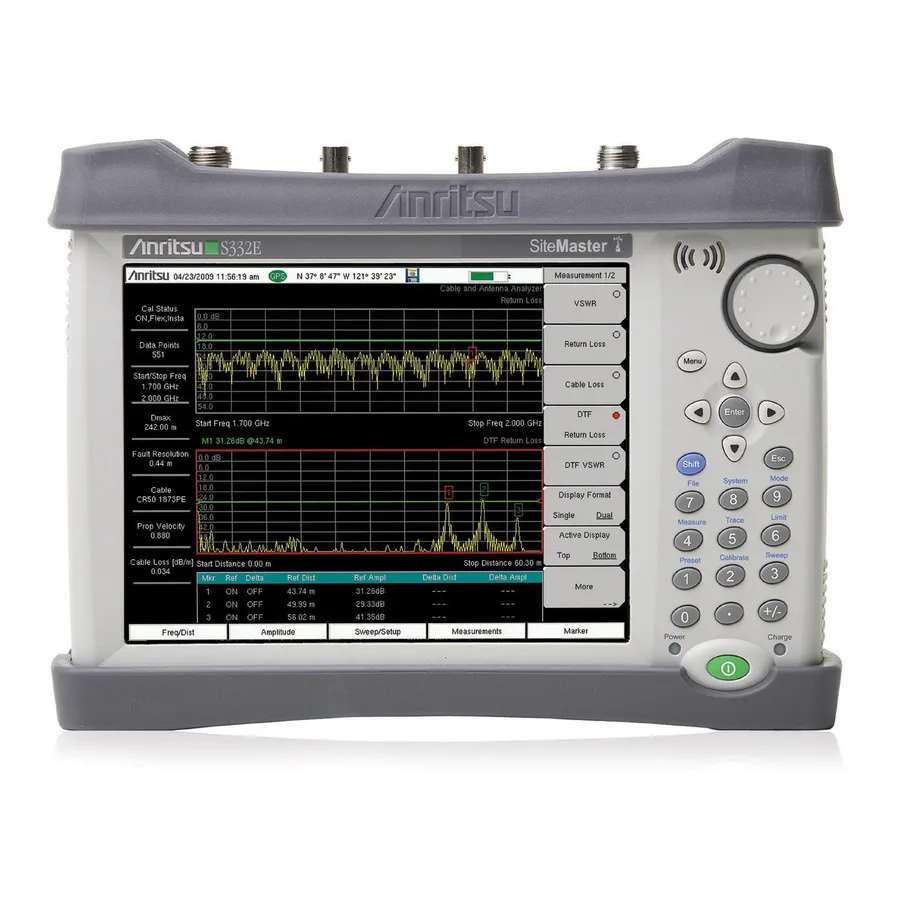

Anritsu S332E Cable and Antenna Analyzer
Request a quote
Anritsu S332E combines cable and antenna analyzer with spectrum analyzer, measuring 2 MHz to 4 GHz, featuring touchscreen interface and 4-hour battery.
Product details
| Model | S332E |
| Manufacturer | Anritsu |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu S332E is a compact, handheld cable and antenna analyzer that integrates spectrum analysis capability for comprehensive RF system testing. Built for field durability, the S332E enables wireless operators, contractors, DAS installers, and public safety professionals to perform rapid measurements, instant calibrations, and fast troubleshooting in even the most demanding environments.
Key Features
- Cable and antenna analyzer: 2 MHz to 4 GHz
- Spectrum analyzer: 9 kHz to 4 GHz
- Return loss, cable loss, VSWR, distance-to-fault, and phase measurements
- 2-port transmission measurement capability (high and low power)
- Intuitive touchscreen interface with integrated keyboard
- Sweep speed: 1 millisecond per data point
- Single or dual measurement display modes
- Calibration methods: OSL, InstaCal, FlexCal
- 32 V internal bias tee
- Rugged, impact-resistant design with splash resistance
- 4-hour battery life
- Daylight-viewable display
Spectrum and Interference Analysis
- Occupied bandwidth, channel power, ACPR, and C/I measurements
- Spectral emission mask analysis
- PIM hunting for passive intermodulation detection
- Interference analyzer with signal strength and RSSI
- Dynamic range greater than 95 dB at 10 Hz RBW
- DANL of -152 dBm at 10 Hz RBW
- Phase noise: -100 dBc/Hz max at 10 kHz offset
Applications
- Base station installation and commissioning
- Network maintenance and troubleshooting
- Distributed antenna system (DAS) deployment and testing
- Public safety network installation and maintenance
- RF coverage and interference assessment
- Passive intermodulation (PIM) hunting
Specifications
| Frequency | 4 GHz |
| Series | SiteMaster Series |
| Backlight | Yes |
| Battery Life | 4.5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | SMA (f) |
| Dimensions | 10.7 x 7.8 x 3.6 in. |
| Display | 8.4" Daylight Viewable Color LCD |
| Dynamic Range | 95 dB |
| Frequency Range | 2 MHz to 4.0 GHz |
| Function | CAT, SA |
| Includes | Soft Carrying Case, Stylus with Coiled Tether, Rechargeable Li-Ion Battery (7500 mAh), Automotive Power Adapter (12VDC) (60W), Screen Protector Film (8.4"), USB A/5-pin mini-B Cable (10ft), AC-DC Adapter with AC power Cord |
| Number of Ports | 2 |
| Operating Temperature Range | -10 to 55°C |
| Resolution | 10 Hz |
