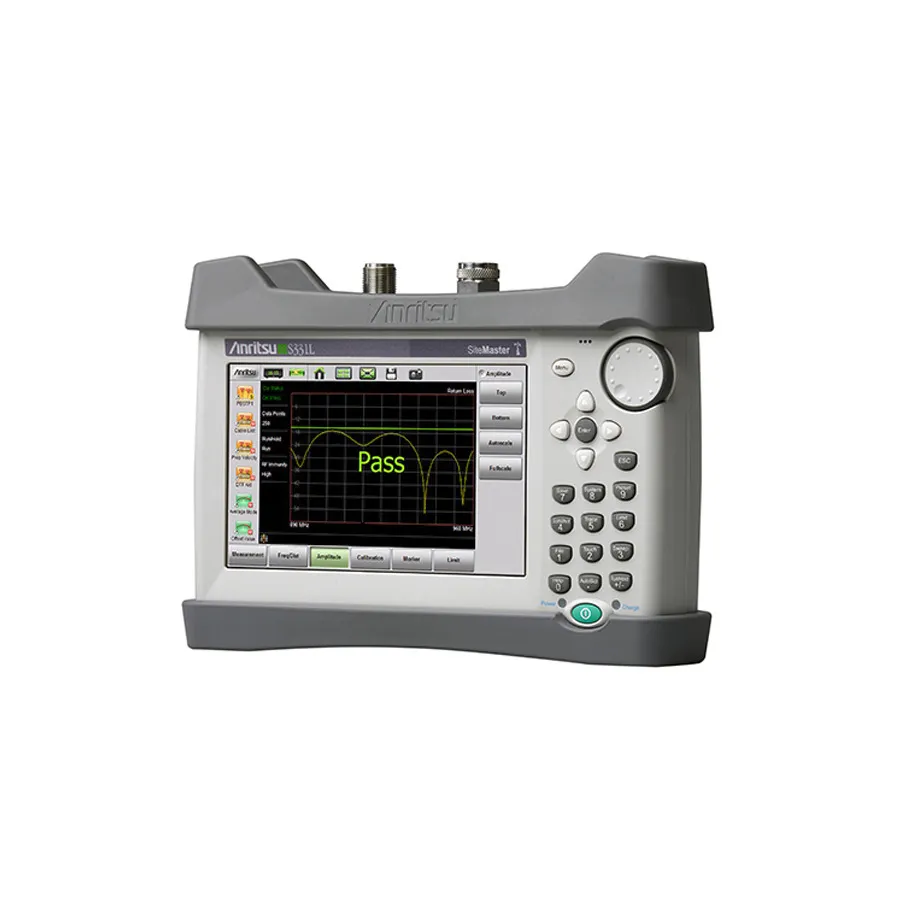

Anritsu S331L/099 Site Master Cable and Antenna Analyzer
Request a quote
Anritsu S331L/099 is a handheld cable and antenna analyzer (2 MHz–4 GHz) with built-in InstaCal and power meter, including premium Z540 calibration for field contractors.
Product details
| Model | S331L/099 |
| Manufacturer | Anritsu |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu S331L/099 Site Master is a rugged handheld cable and antenna analyzer designed for tower contractors, installers, and wireless service providers. This variant includes premium calibration to Z540 with comprehensive test data, ensuring the highest accuracy standards for critical field measurements. It combines simplicity with high value pricing, optimized for field conditions with modern technology and extended battery operation.
Key Features
- Frequency range: 2 MHz to 4 GHz
- Standard built-in InstaCal module and Power Meter (50 MHz to 4 GHz)
- Premium calibration to Z540 with test data
- More than 8 hours of continuous battery operation
- Impact, dust, and splash resistant design
- 7-inch outdoor viewable TFT touch screen (800 x 480)
- FlexCal broadband calibration technology
- Multiple USB ports for connectivity
- Internally store more than 1000 files with fast preview
- Industry standard *.dat format compatible with LST and HHST
- Three-year warranty (battery one-year)
Measurements
- Return Loss and Distance-to-Fault Return Loss
- VSWR and Distance-to-Fault VSWR
- Cable Loss and Smith Chart (50/75 ohm)
- 1-Port Phase and RF Power (50 MHz to 4 GHz)
- Optical connector inspection with IEC 61300-3-35 standard (requires probe)
Applications
- Cable and antenna maintenance for wireless service providers and contractors
- Tower site installations and field deployments
- Premium calibration applications requiring Z540 compliance
- Extended battery operation field work
Specifications
| Frequency | 4 GHz |
| Series | SiteMaster Series |
| Battery Life | 8 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 10 x 7.1 x 2.4 in. |
| Display | 7.0″ Daylight‑Viewable TFT Touch Screen |
| Dynamic Range | 60 dB |
| Frequency Range | 2 MHz to 4 GHz |
| Function | CAT, PM |
| Includes | Soft Carrying Case, Stylus with Coiled Tether, Certificate of Calibration and Conformance, AC-DC Adapter with AC power cord (country dependent), Torque Multiplier N(m), USB A/5-pin mini-B Cable (10ft), Automotive Power Adapter, (12 VDC) (60 W) |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
