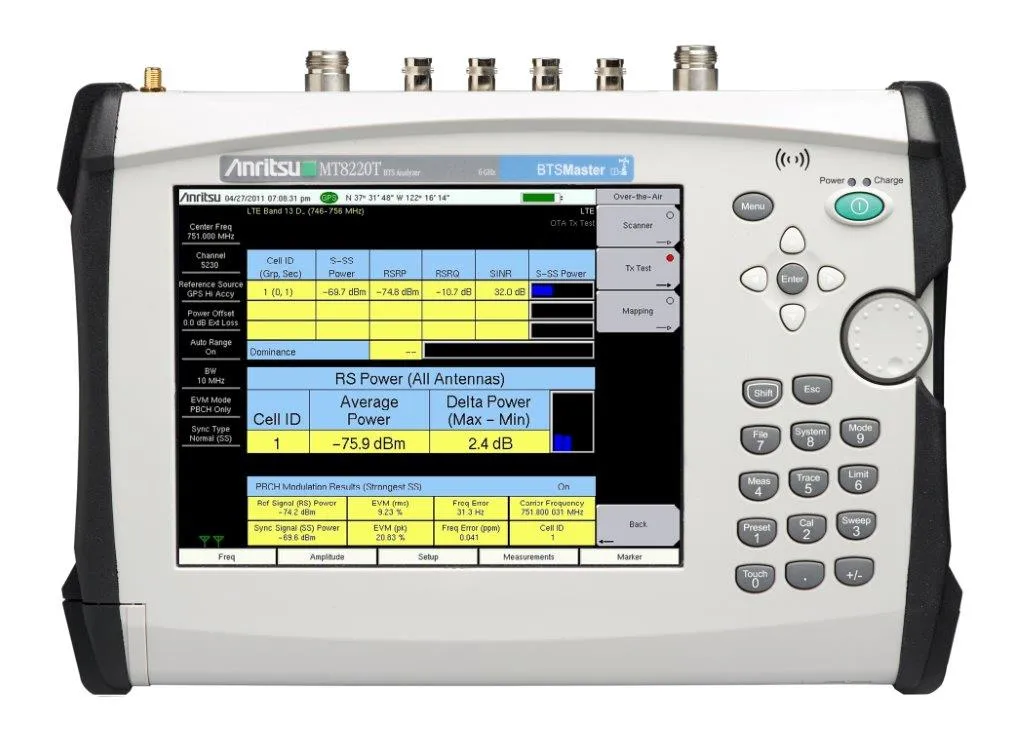

Anritsu MT8220T Base Station Analyzer

Overview

The Anritsu MT8220T is a third-generation handheld base station analyzer designed for advanced 4G LTE network support alongside existing 2G, 3G, and WiMAX installations. It provides 20 MHz bandwidth modulation quality testing for LTE eNodeB systems and features a high-contrast touch screen display with backlit keys for operation in both bright sunlight and dim field conditions.

The MT8220T combines multiple test functions in a compact, battery-operated form factor, making it ideal for field technicians and RF engineers to verify base station installation, commissioning, and ongoing maintenance of wireless network infrastructure.

Key Features

• Cable and Antenna Analyzer, 400 MHz to 6 GHz
• Spectrum Analyzer, 150 kHz to 7.1 GHz
• Power Meter with high accuracy up to 26 GHz with external sensor
• 20 MHz modulation quality testing for LTE FDD/TDD
• Multi-format signal analysis: LTE/LTE-A, W-CDMA/HSPA+, GSM/GPRS/EDGE, TD-SCDMA, CDMA EV-DO, WiMAX, NB-IoT
• Vector Signal Generator, 400 MHz to 6 GHz
• GPS receiver with antenna for mapping and interference triangulation
• Touch screen interface with backlit keys
• Less than 5-minute warm-up time
• Standard three-year warranty

Applications

• Base station installation and commissioning verification
• 4G LTE eNodeB transmitter RF quality testing
• MIMO configuration validation
• Remote radio head (RRH) testing and troubleshooting
• Coverage problem diagnosis and interference detection
• Ongoing network maintenance and KPI monitoring
• PIM (Passive Intermodulation) hunting and analysis

Included Accessories

• Soft carrying case
• GPS antenna (SMA, 25 dB gain)
• Rechargeable Li-Ion battery (7500 mAh)
• AC/DC power supply
• Automotive power adapter (12 VDC, 60W)
• Ethernet and USB cables
• Stylus with coiled tether
• Certificate of calibration
