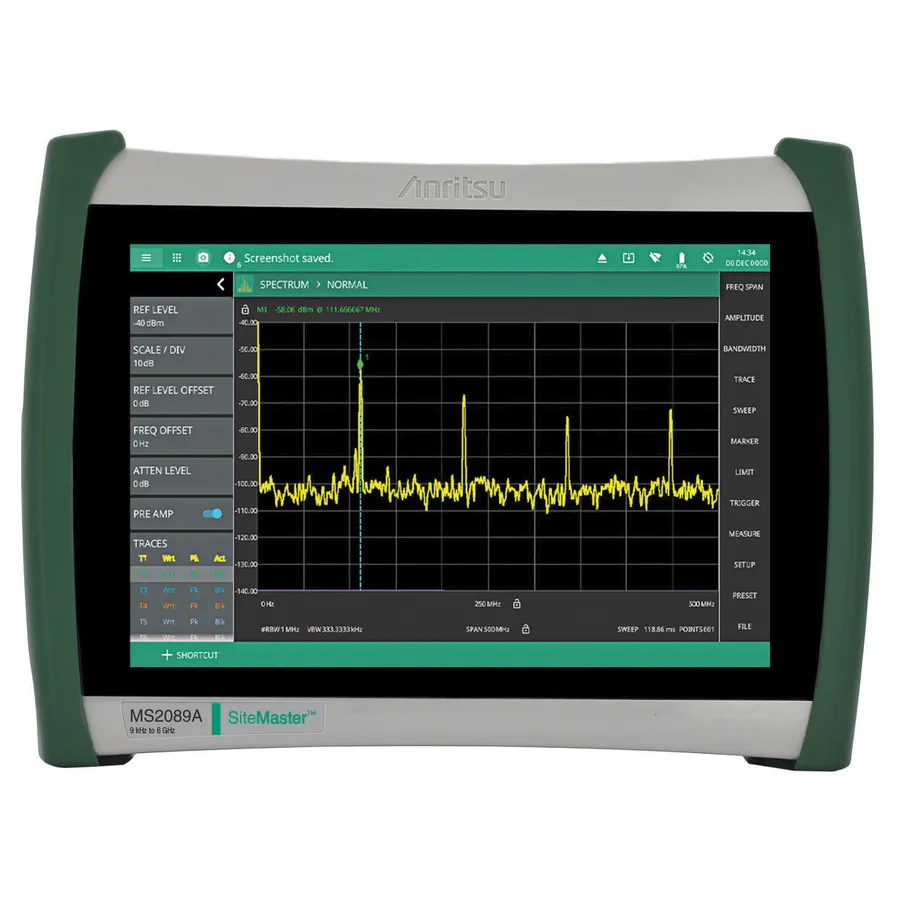

Anritsu MS2089A-0706/0806 Cable and Antenna Analyzer
Request a quote
Anritsu MS2089A-0706/0806 cable and antenna analyzer with 5 kHz to 6 GHz range, real-time spectrum analysis, and comprehensive RF measurements.
Product details
| Model | MS2089A-0706/0806 |
| Manufacturer | Anritsu |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2089A-0706/0806 Site Master is a portable spectrum and cable and antenna analyzer that combines essential RF test instruments into a single handheld package. With a 5 kHz to 6 GHz cable analyzer and 9 kHz to 6 GHz spectrum analyzer, weighing less than 8.5 lbs with a 10-inch multi-touch display, the MS2089A delivers professional-grade measurements in a field-portable form factor. This multifunctional design simplifies field work by eliminating the need to carry multiple instruments and reducing training overhead.
Key Features
- Cable and Antenna Analyzer: 5 kHz to 6 GHz with reflection measurements
- Spectrum and Interference Analyzer: 9 kHz to 6 GHz coverage
- Real-Time Spectrum Analyzer (RTSA) with up to 110 MHz analysis bandwidth
- IQ capture and streaming capability
- LTE FDD/TDD and 5GNR FR1 analysis modes
- Distance-to-Fault (DTF) measurements for cable troubleshooting
- TDR (Time Domain Reflectometry) support for pinpointing cable faults
- Split screen display for simultaneous Return Loss and DTF viewing
- 10,049 data points with 350 µs sweep speed in fast mode
- Ethernet, Wi-Fi, and USBTMC interfaces
- Built-in PDF/HTML report generation
Applications
- Cable installation and maintenance testing
- Antenna system validation and alignment
- Interference hunting and spectrum clearing
- Broadcast transmitter analysis and harmonic measurement
- Cellular and wireless site installation
- VHF, broadcasting, GPS, and WLAN system testing
Included Accessories
- MS2085A/89A Soft Case
- Certificate of Calibration and Conformance
- Li-ion Battery, 94Wh
- SMA(m) to BNC(f) Adapter (qty 3)
- Ethernet Cable, 2 m
- USB Cable, USB 3.0 Type-A to Type-C, 1 m
- SMA(m) to BNC(m) cable, 1 m
- Li-ion Battery, 84Wh
Specifications
| Frequency | 6 GHz |
| Series | SiteMaster Series |
| Battery Life | 5 hrs. |
| Battery Type | Lithium-Ion |
| Connector Type | Type-N (f) |
| Dimensions | 11.4 x 8.3 x 3.7 in. |
| Display | 10.1" Multi-touch |
| Dynamic Range | 105 dB |
| Frequency Range | 5 kHz to 6 GHz |
| Function | CAT, VNA, SA |
| Number of Ports | 1 |
| Operating Temperature Range | -10 to 55°C |
| Type | Handheld |
