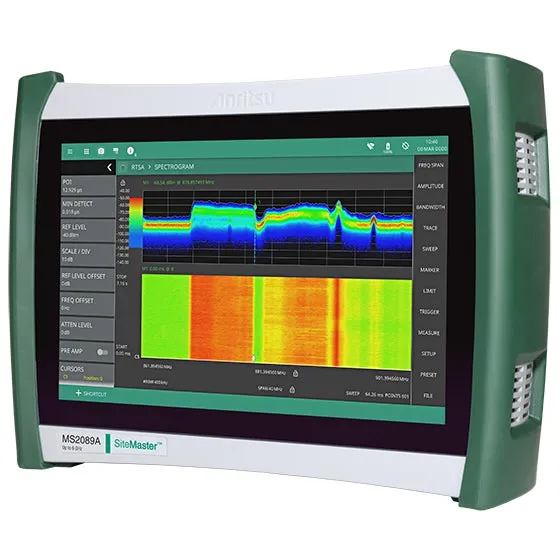

Anritsu MS2089A Cable and Antenna Analyzer
Request a quote
Anritsu MS2089A portable spectrum and cable analyzer with 5 kHz to 4/6 GHz coverage, real-time analysis, and site master features.
Product details
| Model | MS2089A |
| Manufacturer | Anritsu |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2089A is a spectrum and cable and antenna analyzer that combines RF field technician instruments into a single portable package. Available in two configurations—5 kHz to 4 GHz or 5 kHz to 6 GHz cable antenna analyzer with matching spectrum analyzer—the MS2089A weighs less than 8.5 lbs and features a 10-inch IK08 touch screen. This multifunctional design reduces field carry load and provides a single user interface for improved productivity.
Key Features
- Real-Time Spectrum Analyzer (RTSA)
- IQ capture and streaming capability
- LTE FDD/TDD Analyzer
- 5GNR FR1 Analyzer
- Interference Analyzer
- Return Loss, VSWR, Cable Loss, and 1-Port Phase measurements
- Distance-to-Fault (DTF) measurements
- TDR (Time Domain Reflectometry) support
- Split screen display for simultaneous Return Loss and DTF viewing
- Built-in PDF/HTML report generation
- Ethernet, Wi-Fi, and USBTMC interfaces
Applications
- Cable installation and maintenance testing
- Antenna system validation and alignment
- Interference hunting and spectrum clearing
- Broadcast transmitter analysis
- Cellular and wireless site installation
- VHF, GPS, and WLAN system testing
- Coverage mapping and monitoring
Specifications
| Frequency Range (Cable Analyzer) | 5 kHz to 4 GHz or 6 GHz (model dependent) |
| Frequency Range (Spectrum Analyzer) | 9 kHz to 4 GHz or 6 GHz (model dependent) |
| Display | 10-inch IK08 multi-touch screen |
| Weight | Less than 8.5 lbs |
| RF Test Ports | N-Type (f) |
| Interfaces | Ethernet, Wi-Fi, USBTMC |
| Measurements | Return Loss, VSWR, Cable Loss, 1-Port Phase, DTF, TDR, Smith Chart |
| Features | Real-Time Spectrum Analyzer (RTSA), IQ capture/Streaming, LTE FDD/TDD, 5GNR FR1, Interference Analyzer |
