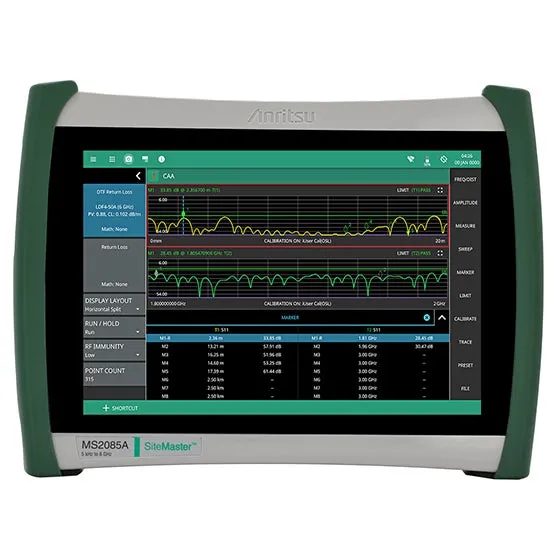

Anritsu MS2085A Cable and Antenna Analyzer
Request a quote
MS2085A cable and antenna analyzer covers 5 kHz to 6 GHz with return loss, VSWR, and distance-to-fault measurements for installation and maintenance.
Product details
| Model | MS2085A |
| Manufacturer | Anritsu |
| Category | Cable & Antenna Analyzers |
| Availability | Made to order |
Description
Overview
The Anritsu MS2085A Site Master is a lightweight cable and antenna analyzer weighing less than 7 lbs with a 10-inch IK08 touchscreen. Covering 5 kHz to 6 GHz (4 GHz option available), it delivers comprehensive reflection and transmission measurements including return loss, VSWR, cable loss, and distance-to-fault analysis.
Key Features
- Frequency range: 5 kHz to 6 GHz (4 GHz option available)
- Reflection measurements: Return Loss, VSWR, Cable Loss, Smith Chart, 1-Port Phase, TDR, DTF Return Loss, DTF VSWR
- Transmission measurements with USB sensor and 2-port options
- Calibration methods: OSL, OSL + Trans, InstaCal, FlexCal, iOSL
- 10-inch high-resolution multi-touch display with split-screen mode
- Sweep speed: 350 µs/data point with 10,049 data points
- Built-in RF cable library with common transmitter site cables
- Remote control via Ethernet, Wi-Fi, and USBTMC
- Standard SCPI commands for automation
- Built-in PDF/HTML report generation
- Battery life: Up to 9 hours
- Certified line sweeping training available
Applications
- VHF and broadcasting cable installation and maintenance
- Cellular network testing and optimization
- GPS and WLAN antenna analysis
- Cable fault detection and distance-to-fault analysis
- Transmission line and antenna verification
- Field cable testing and troubleshooting
Specifications
| Frequency Range | 5 kHz to 6 GHz (4 GHz option available) |
| Reflection Measurements | Return Loss, VSWR, Cable Loss, Smith Chart, 1-Port Phase, DTF, TDR |
| Display | 10-inch high-resolution multi-touch |
| Sweep Speed | 350 µs/data point |
| Data Points | 10,049 |
| Weight | Less than 7 lbs |
| Battery Life | Up to 9 hours |
| Interfaces | Ethernet, Wi-Fi, USBTMC, Android/iOS/PC remote control |
