PCE Instruments PCE-VE 400N4 Inspection Camera
Request a quote

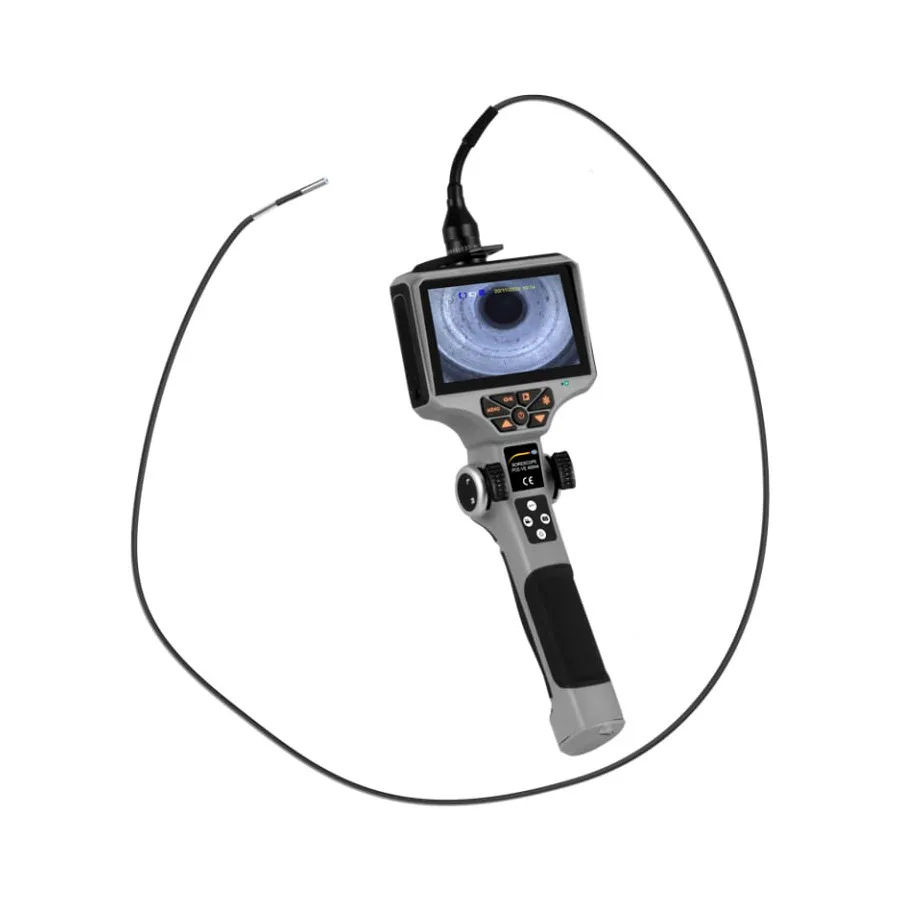

PCE Instruments PCE-VE 400N4 is a compact 1MP handheld inspection camera with 4mm diameter 4-way articulating head and 1.5m cable for inspecting inaccessible machine cavities.
Product details
| Model | PCE-VE 400N4 |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-VE 400N4 is a handheld inspection camera designed for examining machine parts, turbines, engines, and other hard-to-reach cavities. The 4mm diameter camera head with 4-way articulation provides excellent visibility in confined spaces, while the 1.5-meter cable enables access to deeply recessed areas. The 1MP high-resolution sensor captures clear images and videos for damage documentation.
Key Features
- 4mm diameter camera head with 4-way articulation
- 1.5m (4.9ft) flexible endoscope cable with 8mm bend radius
- 1MP resolution with 90° field of view
- 5-inch LCD 16:9 display
- IP67 waterproof rating
- Adjustable LED lighting
- Lithium-ion battery 3350mAh with charger
- Records images and videos to SD card
- HDMI video output
Applications
- Engine and turbine maintenance
- Machine part cavity inspection
- Industrial equipment diagnostics
- Quality control and damage assessment
Included Accessories
- Power supply with charger
- 2x Li-Ion batteries
- HDMI cable
- Card reader
- Memory card
- Cleaning set
- Carrying case
- User manual
Specifications
| Series | Videoscopes Series |
| Battery Type | Li-Ion |
| Direction | 90° |
| Display Scale | 1000000 |
| Display Size | 5" |
| Height | 13.18" |
| IO Interface | HDMI, Micro USB |
| IP Rating | IP67 |
| Length | 5.70" |
| Material | Titanium alloy, Glass |
| Memory | SD Card |
| Power Supply | 5V Power Supply/Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Camera specs: 1MP resolution; 4mm (Diameter), Cable specs: 1.5m (Length) |
| Style | Hand-Held |
| Warranty | 2 Years |
| Width | 3.14" |
