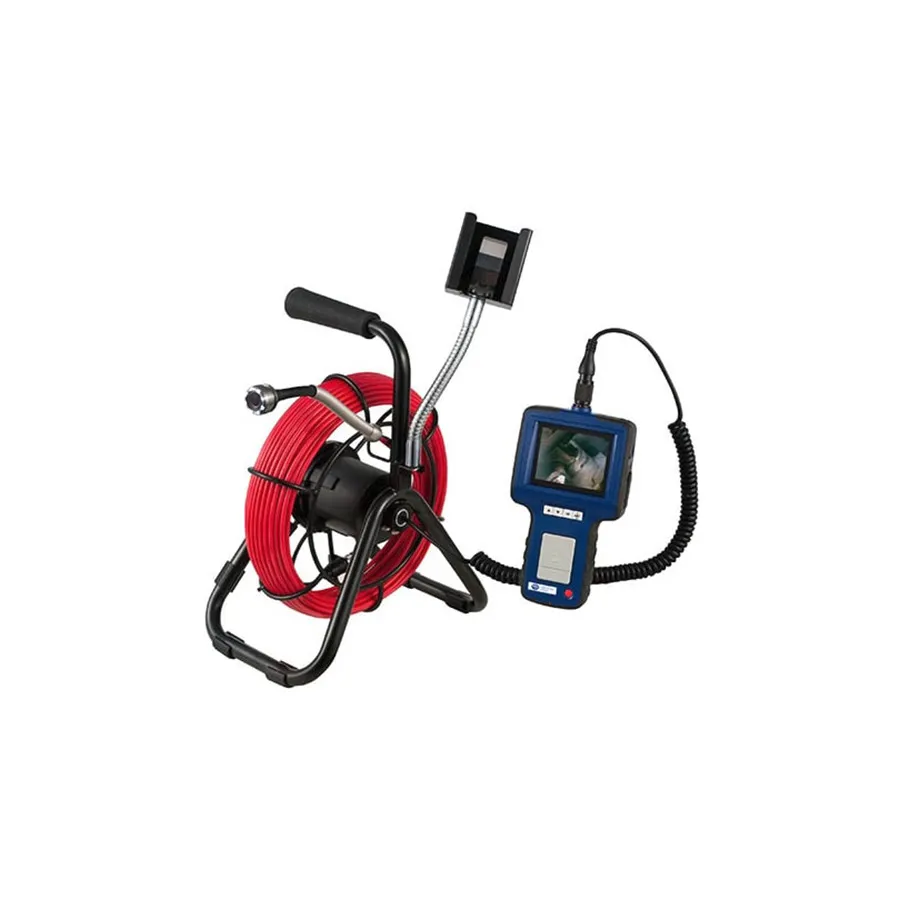

PCE Instruments PCE-VE 380N Waterproof Downhole Inspection Camera
Request a quote
PCE Instruments PCE-VE 380N is a waterproof downhole inspection camera with 28mm diameter, 30m cable reel, 8 LED lights, and IP68 rating for deep inspections.
Product details
| Model | PCE-VE 380N |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-VE 380N is an industrial videoscope and borescope designed for deep inspections of pipes, ducts, sewers, chimneys, and other cavities. The compact 28mm diameter waterproof camera head with 8 LED lights provides excellent illumination for viewing distant areas. The 30m semi-flexible cable on a convenient reel enables professional non-destructive inspection without costly dismantling of equipment or infrastructure.
Key Features
- 28mm diameter waterproof camera head with front-view lens
- 640x480 CMOS sensor resolution at 30 fps
- 30m semi-flexible cable on reel with 90mm bend radius
- 8 LED lights for bright illumination in confined spaces
- 3.5-inch TFT LCD monitor
- IP68 protection rating for submersible use
- Records images and videos directly to SD card
- 3.7V rechargeable lithium-ion battery
- Centering star included for precise positioning in pipes
Applications
- Sewer and drainage pipe inspections
- Water well and borehole examinations
- Ventilation duct diagnostics
- Chimney inspections and cleaning assessment
- Downpipe and foundation drainage evaluations
- Industrial equipment cavity inspections
Included Accessories
- Camera cable on reel with centering star
- 8GB SD memory card
- USB cable
- Mains power adapter
- Carrying case
- User manual
Specifications
| Series | Videoscopes Series |
| Battery Type | 3.7V Li-ion |
| Direction | 150.8° |
| Display Scale | 640x480 |
| Display Size | 3.5" |
| Height | 4.65" |
| IO Interface | Mini USB 1.1 / AV out |
| IP Rating | IP68 |
| Length | 8.15" |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Camera specs: 640x480 resolution; CMOS sensor; 30 fps; 28mm (Diameter), Cable specs: 30m (Length) |
| Units of Measurement | JPEG / ASF / MPEG 4 |
| Warranty | 2 Years |
| Width | 1.46" |
