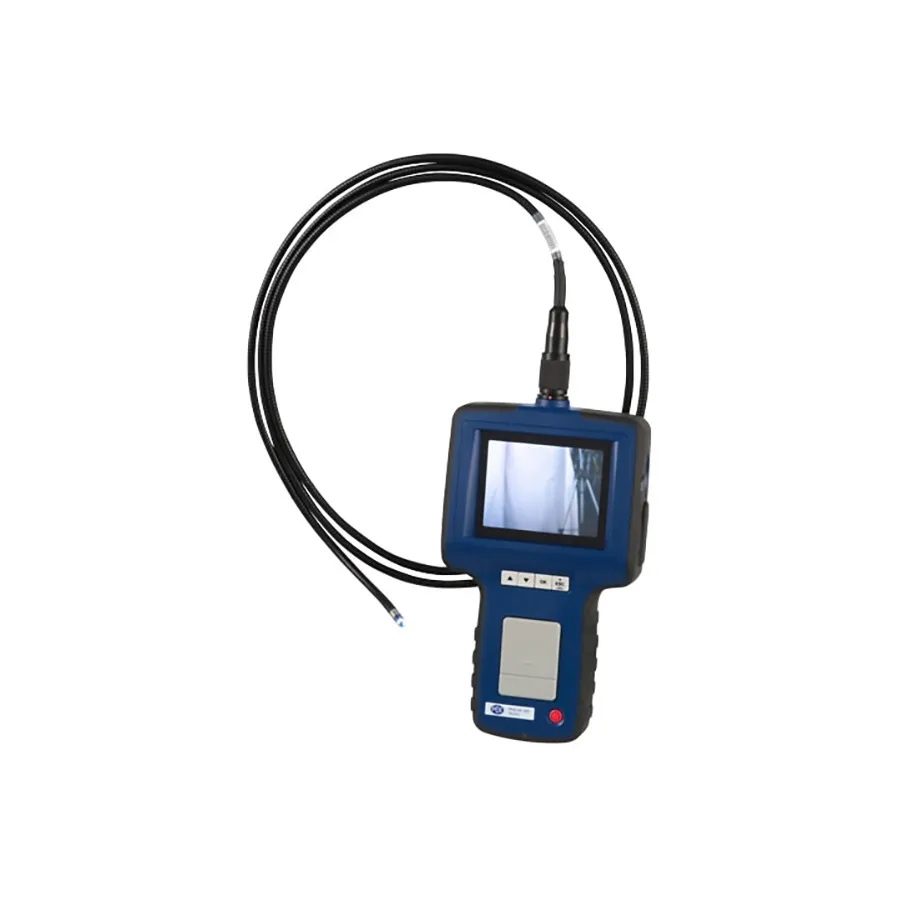

PCE Instruments PCE-VE 360N Small Diameter Inspection Camera
Request a quote
PCE Instruments PCE-VE 360N is a small-diameter borescope with 640x480 resolution, 3 LED lights, IP68 rating, and 1m gooseneck cable for confined space inspection.
Product details
| Model | PCE-VE 360N |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-VE 360N is a small-diameter borescope and videoscope designed for non-destructive inspection of engines, machines, and hard-to-reach areas. Unlike the articulating models, this camera features a front-view design with a semi-flexible gooseneck cable. With a 1m cable and 3.9mm diameter, it provides access to confined spaces in walls, pipes, vents, ducts, and machinery without costly dismantling.
Key Features
- Front-view waterproof camera head (IP68 rated)
- 640x480 CMOS resolution at 30 fps
- 3 LED lights with automatic illumination
- 3.5-inch TFT LCD monitor with 2x digital zoom
- Direct SD card recording (8GB card included)
- 1m semi-flexible gooseneck cable with 3.9mm diameter
- 3.7V rechargeable lithium-ion battery
Applications
- Engine and machinery diagnostics
- Mechanical engineering and manufacturing inspections
- Automotive and aviation applications
- Construction and HVACR inspections
- Equipment troubleshooting without disassembly
Included Accessories
- 8GB SD memory card
- USB cable
- Carrying case
- Mains power adapter
- User manual
Specifications
| Series | Videoscopes Series |
| Battery Type | 3.7V Li-ion |
| Direction | 67° |
| Display Scale | 640x480 |
| Display Size | 3.5" |
| Height | 4.65" |
| IO Interface | Mini USB 1.1 / AV out |
| IP Rating | IP68 |
| Length | 8.15" |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Camera specs: 640x480 resolution; CMOS sensor; 30 fps; 3.9mm (Diameter), Cable specs: 1m (Length) |
| Units of Measurement | JPEG / ASF / MPEG 4 |
| Warranty | 2 Years |
| Width | 1.46" |
