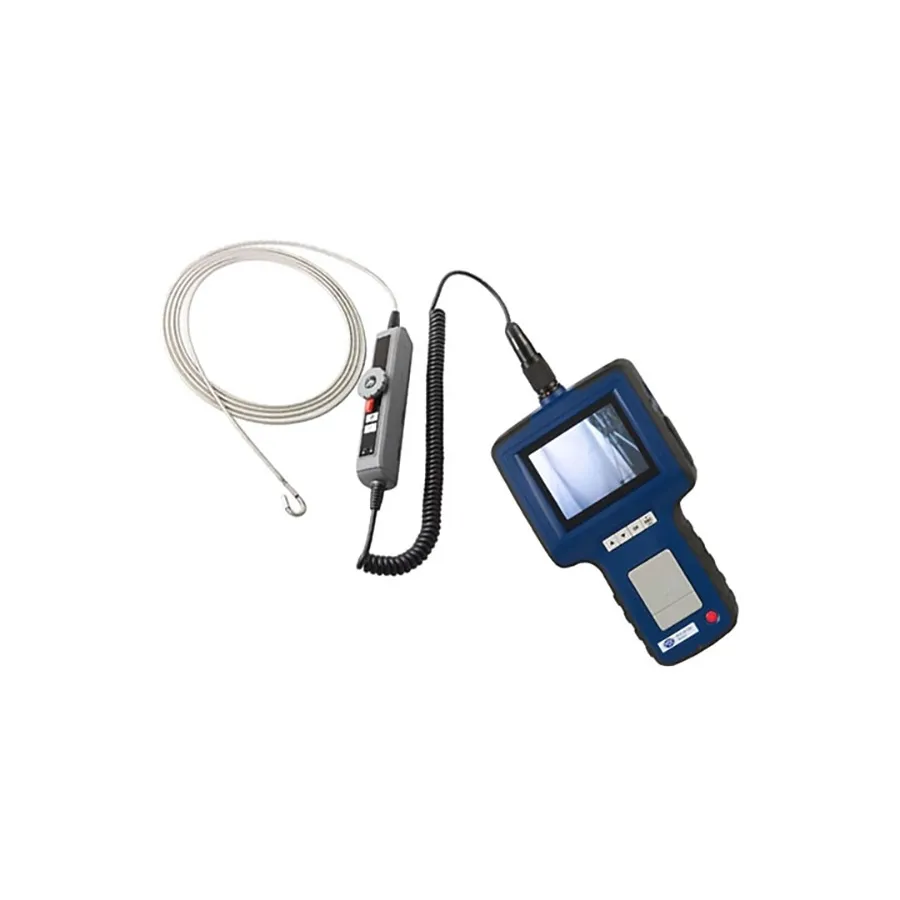

PCE Instruments PCE-VE 355N Two-Way Articulating Inspection Camera
Request a quote
PCE Instruments PCE-VE 355N is a compact two-way articulating borescope with 640x480 resolution, 5 LEDs, and 1.5m cable for inspecting small components and confined spaces.
Product details
| Model | PCE-VE 355N |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-VE 355N is a compact two-way articulating borescope designed for non-destructive inspection of small components and hard-to-reach areas. The articulating camera head is controlled by a knob on the handle for flexible viewing. With a 1.5m cable and 4.5mm diameter, it provides unique access to confined spaces in walls, pipes, vents, ducts, and machinery.
Key Features
- Two-way articulating waterproof camera head
- 640x480 CMOS resolution at 30 fps
- 5 LED lights with automatic illumination
- 3.5-inch TFT LCD monitor with image rotation
- Direct SD card recording (8GB card included)
- 1.5m cable length with 4.5mm diameter
- 3.7V rechargeable lithium-ion battery
Applications
- Mechanical engineering and manufacturing inspections
- Automotive and aviation diagnostics
- Construction and HVAC system inspections
- Equipment troubleshooting without disassembly
Included Accessories
- 8GB SD memory card
- USB cable
- Carrying case
- Mains power adapter
- User manual
Specifications
| Series | Videoscopes Series |
| Battery Type | 3.7V Li-ion |
| Direction | 67° |
| Display Scale | 640x480 |
| Display Size | 3.5" |
| Height | 4.65" |
| IO Interface | Mini USB 1.1 (AV out / AV in) |
| IP Rating | IP67 |
| Length | 8.15" |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Camera specs: 640x480 resolution; CMOS sensor; 30 fps; 4.5mm (Diameter), Cable specs: 1.5m (Length) |
| Units of Measurement | JPEG / ASF / MPEG 4 |
| Warranty | 2 Years |
| Width | 1.46" |
