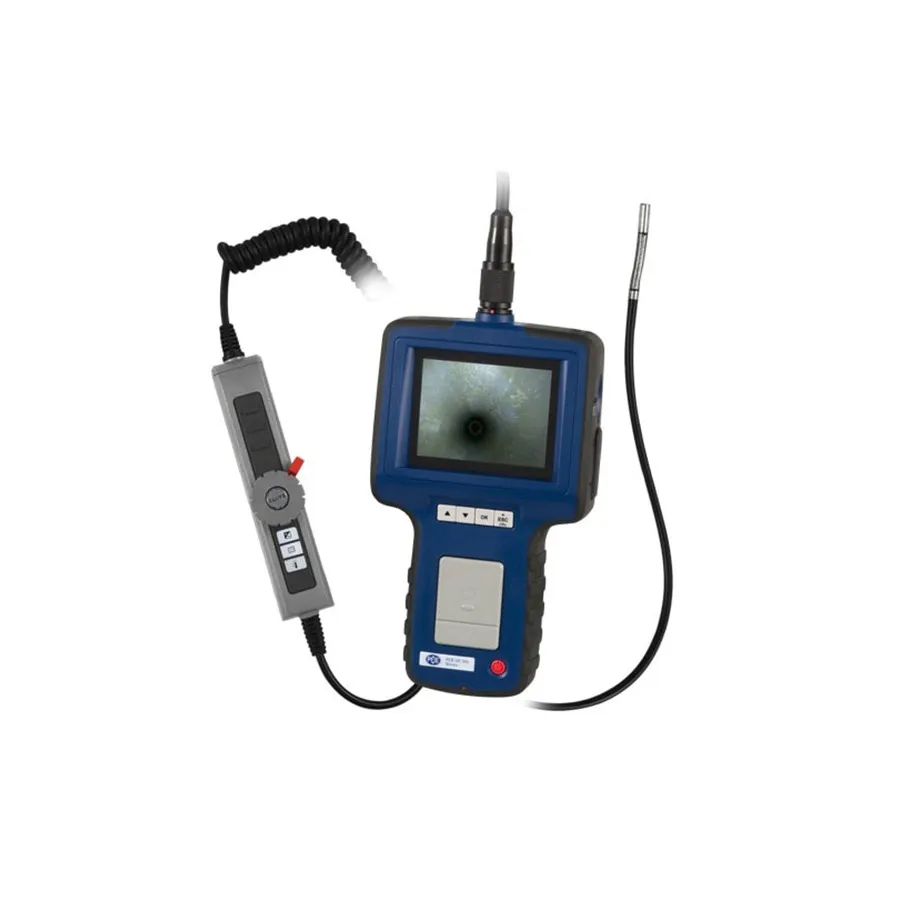

PCE Instruments PCE-VE 350HR3 Two-Way Articulating Video Inspection Camera
Request a quote
PCE Instruments PCE-VE 350HR3 is a waterproof two-way articulating borescope with 640x480 resolution, 6 LEDs, IP67 rating, and 3m cable for industrial inspection.
Product details
| Model | PCE-VE 350HR3 |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-VE 350HR3 is an industrial borescope and videoscope designed for non-destructive inspection (NDI) of machinery, equipment, and hard-to-reach areas. The two-way articulating camera head, controlled by a knob on the handle, provides flexible viewing angles. With a 3m cable and 6.0mm diameter, it accesses confined spaces in walls, pipes, vents, ducts, and machinery without costly dismantling.
Key Features
- Two-way articulating waterproof camera head (IP67 rated)
- 640x480 CMOS resolution at 30 fps
- 6 LED lights (4 front, 2 sides) for optimal illumination
- 3.5-inch TFT LCD monitor with image rotation and 2x digital zoom
- Boost function for improved image quality in dark environments
- Direct SD card recording (8GB card included)
- 3m cable length with 6.0mm diameter
- 3.7V rechargeable lithium-ion battery
Applications
- Mechanical engineering and manufacturing diagnostics
- Automotive and aviation inspection
- Plumbing and HVACR inspections
- Construction and building diagnostics
- Equipment troubleshooting without disassembly
Included Accessories
- 8GB SD memory card
- USB cable
- Carrying case
- Mains power adapter
- User manual
Specifications
| Series | Videoscopes Series |
| Battery Type | 3.7V Li-ion |
| Direction | 67° |
| Display Scale | 640x480 |
| Display Size | 3.5" |
| Height | 4.65" |
| IO Interface | Mini USB 1.1 / AV out |
| IP Rating | IP67 |
| Length | 8.15" |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Camera specs: 640x480 resolution; CMOS sensor; 30 fps; 6.0mm (Diameter), Cable specs: 3m (Length) |
| Units of Measurement | JPEG / ASF / MPEG 4 |
| Warranty | 2 Years |
| Width | 1.46" |
