PCE Instruments PCE-VE 350HR Two-Way Articulating Video Inspection Camera
Request a quote
PCE-VE 350HR is a two-way articulating video inspection camera with 640x480 resolution, 6 LED lights, flexible 1m cable, and IP67 protection for angled inspections.
Product details
| Model | PCE-VE 350HR |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview

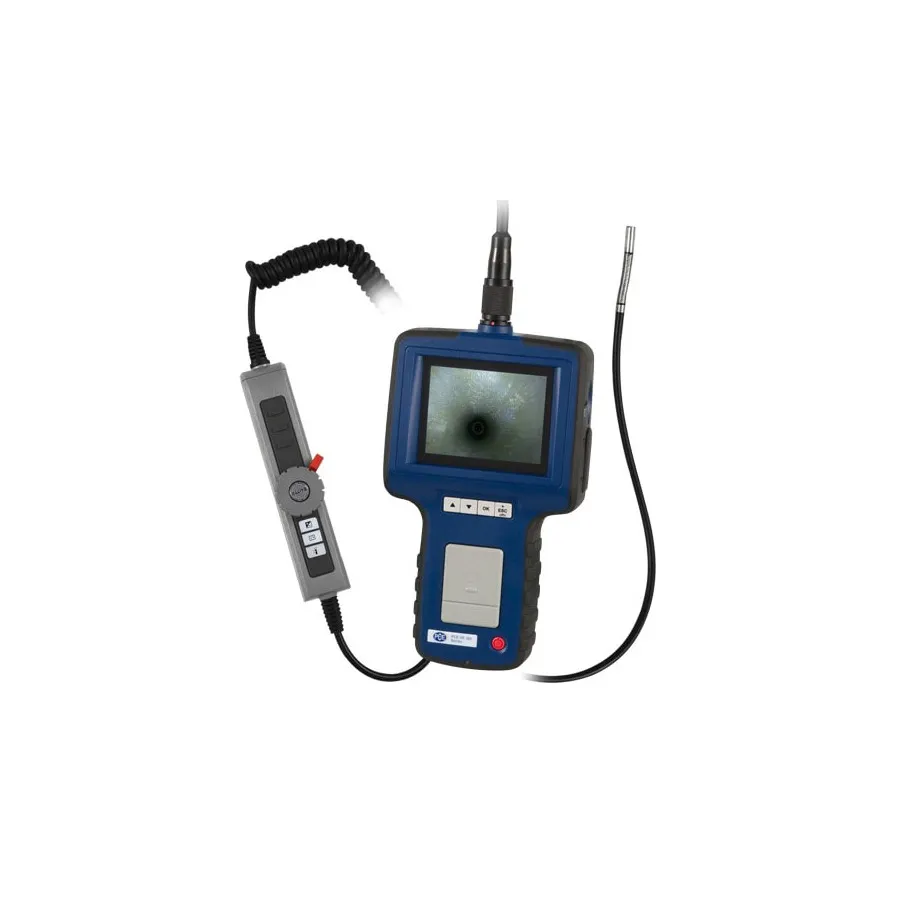

The PCE Instruments PCE-VE 350HR is an industrial borescope with a distinctive two-way articulating camera head, allowing angled viewing in multiple directions. Controlled by a knob on the handle, the articulating design makes it ideal for inspecting areas where straight forward viewing is not possible. The waterproof camera head features 6 LED lights (4 front + 2 side) and a 6.0mm diameter for deeper access into confined spaces.
Key Features
- 640x480 resolution CMOS sensor at 30 fps
- 6.0mm diameter waterproof camera head with IP67 protection
- Two-way articulating camera head controlled by knob on handle
- 1m fully flexible cable with 90mm bend radius
- 6 LED lights (4 front + 2 side) with automatic illumination
- Image rotation capability
- Boost function for improved image quality in dark environments
- 2x digital zoom magnification
- 3.5-inch TFT LCD display
- Mini USB 1.1 and AV output interfaces
- Records images and videos directly to included 8GB SD card
- 3.7V rechargeable lithium-ion battery
Applications
- Mechanical engineering inspections with angled access requirements
- Automotive and aviation diagnostics
- Plumbing, HVAC, and refrigeration system assessments
- Construction and building inspections at angles
- Pipeline and equipment interior evaluation where articulation is needed
Included Accessories
- 8GB SD memory card
- USB cable
- Carrying case
- Mains power adapter
- User manual
Specifications
| Series | Videoscopes Series |
| Battery Type | 3.7V Li-ion |
| Direction | 67° |
| Display Scale | 640x480 |
| Display Size | 3.5" |
| Height | 4.65" |
| IO Interface | Mini USB 1.1 / AV out |
| IP Rating | IP67 |
| Length | 8.15" |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Camera specs: 640x480 resolution; CMOS sensor; 30 fps; 6.0mm (Diameter), Cable specs: 1m (Length) |
| Units of Measurement | JPEG / ASF / MPEG 4 |
| Warranty | 2 Years |
| Width | 1.46" |
