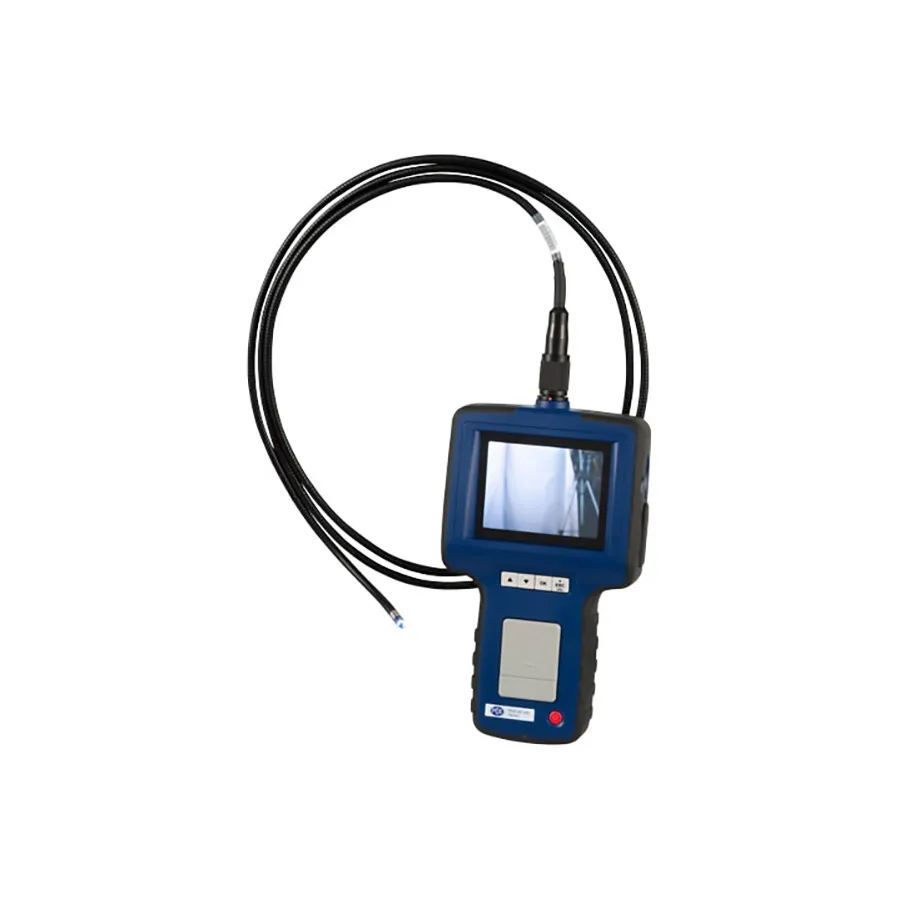

PCE Instruments PCE-VE 320N Video Inspection Camera
Request a quote
PCE-VE 320N is a waterproof video inspection camera with 640x480 resolution, 4 LED lights, 1m cable, and IP68 protection for non-destructive industrial inspections.
Product details
| Model | PCE-VE 320N |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-VE 320N is an industrial borescope and video inspection camera designed for non-destructive inspection (NDI) of engines, machinery, and equipment. The waterproof camera head features 4 LED lights with automatic illumination and a 5.5mm diameter that allows access to confined spaces such as pipes, ducts, vents, and machine interiors without requiring costly disassembly.
Key Features
- 640x480 resolution CMOS sensor at 30 fps
- 5.5mm diameter waterproof camera head with IP68 protection
- 1m semi-flexible cable with 90mm bend radius
- 4 LED front lights with automatic illumination
- 2x digital zoom magnification
- 3.5-inch TFT LCD display
- Mini USB 1.1 and AV output interfaces
- Records images and videos directly to included 8GB SD card
- 3.7V rechargeable lithium-ion battery
Applications
- Mechanical engineering and manufacturing diagnostics
- Automotive and aviation inspections
- Plumbing, HVAC, and refrigeration system assessments
- Construction and building inspections
- Pipeline and duct interior evaluation
Included Accessories
- 8GB SD memory card
- USB cable
- Carrying case
- Mains power adapter
- User manual
Specifications
| Series | Videoscopes Series |
| Battery Type | 3.7V Li-ion |
| Direction | 67° |
| Display Scale | 640x480 |
| Display Size | 3.5" |
| Height | 4.65" |
| IO Interface | Mini USB 1.1 / AV out |
| IP Rating | IP68 |
| Length | 8.15" |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Camera specs: 640x480 resolution; CMOS sensor; 30 fps; 5.5mm (Diameter), Cable specs: 1m (Length) |
| Units of Measurement | JPEG / ASF / MPEG 4 |
| Warranty | 2 Years |
| Width | 1.46" |
