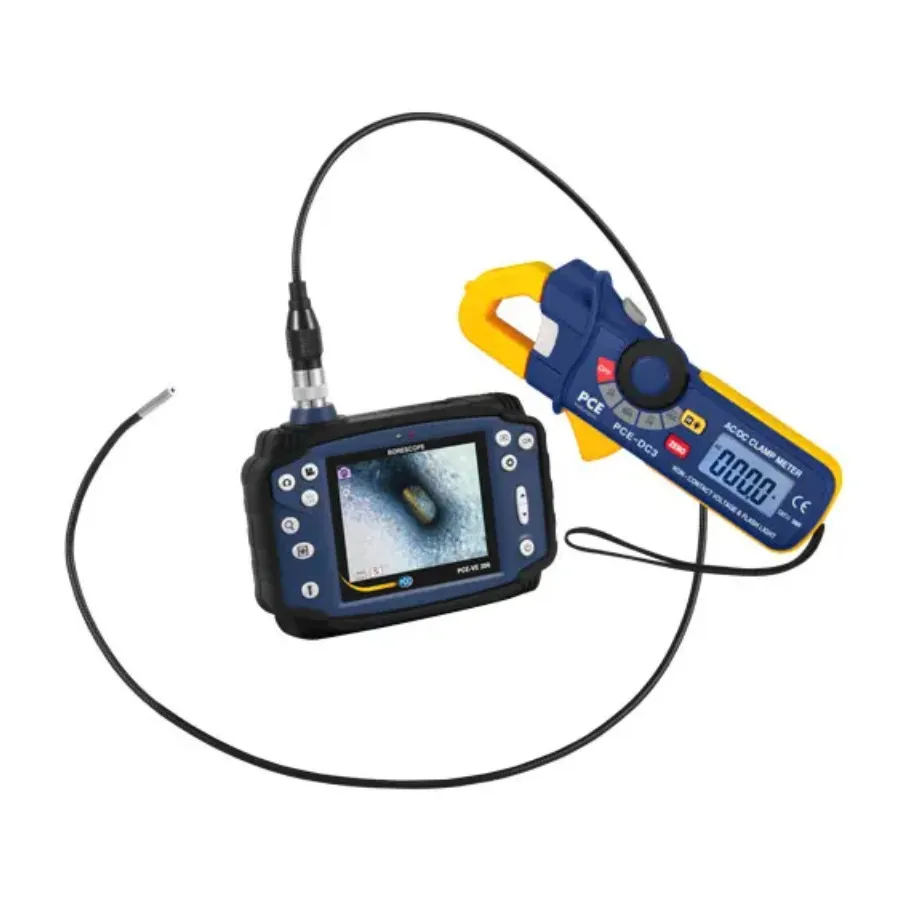

PCE Instruments PCE-VE 200-KIT2 Video Borescope and Clamp Meter Kit

Overview

The PCE Instruments PCE-VE 200-KIT2 combines an industrial video borescope with a precision clamp meter for comprehensive machinery and electrical system diagnostics. The borescope enables visual inspection of hard-to-reach components such as pipes, ducts, and machinery cavities, while the clamp meter provides high-accuracy AC/DC current measurements without contact, ideal for electrical troubleshooting in confined spaces.

Key Features - Borescope

• 3.5-inch LCD display
• 1600×1200 pixel JPEG image resolution
• 640×480 pixel AVI video resolution
• 3.28-foot camera cable with 0.18-inch diameter
• 1/8-inch CMOS image sensor camera head
• 180-degree rotatable camera with 4-way articulation
• 6 adjustable LED lights with intensity control
• Digital zoom up to 4x magnification
• Micro SD card memory storage
• Micro USB 2.0 and TV outputs

Key Features - Clamp Meter

• 4-digit LCD display with backlighting
• AC/DC current measurement up to 80 amps
• 18mm clamp diameter for compact applications
• Non-contact current measurement for safety
• Integrated light to illuminate measured area
• Automatic range selection
• DCA zero rest function
• Save function for measurement recording
• Automatic power-off

Applications

• Pipeline and ductwork interior inspection
• Machinery component and equipment diagnostics
• HVAC system evaluation
• Electrical circuit troubleshooting in confined spaces
• Current measurement in distribution panels and circuits
• Manufacturing quality control
• Automotive and mechanical maintenance

Included Accessories

• PCE-VE 200 industrial borescope
• PCE-DC 3 clamp meter
• USB cable and adapter
• 2×batteries for clamp meter
• Carrying case
• User manuals
