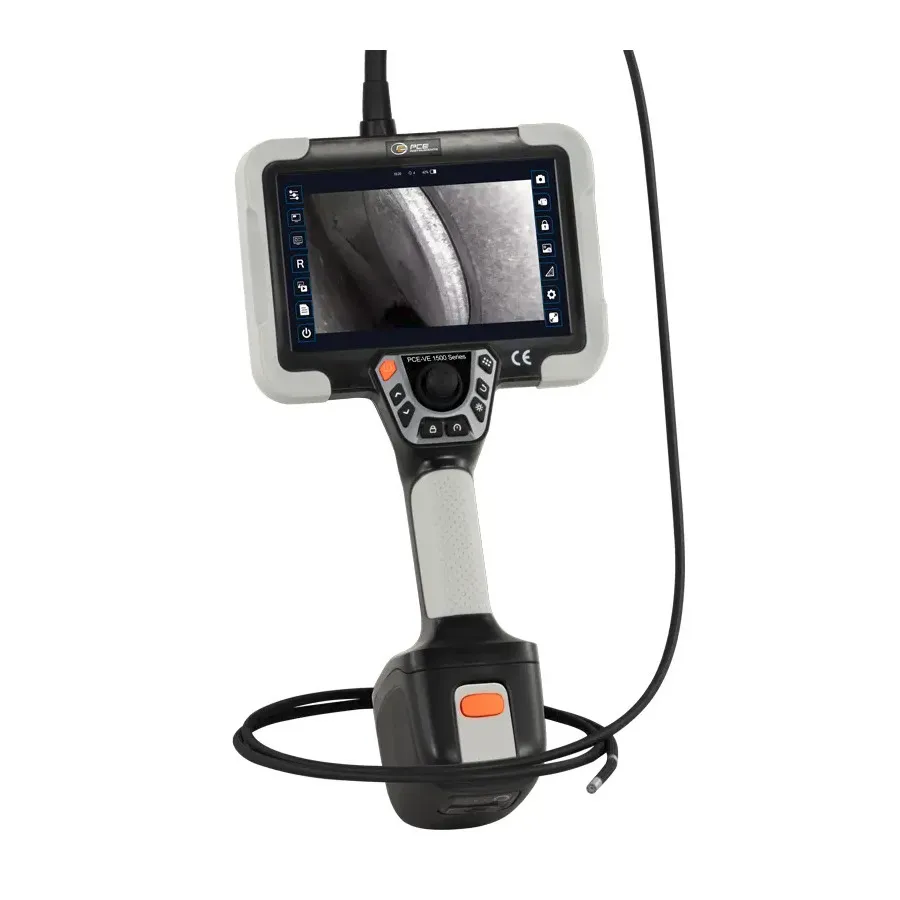

PCE Instruments PCE-VE 1500-60200 Video Borescope

Overview

The PCE-VE 1500-60200 is a professional-grade industrial endoscope engineered for demanding inspections in machinery, production, and maintenance scenarios. The 1-megapixel front-facing camera delivers high-resolution imagery with a 120° viewing angle and 10-100 mm focus range. The 6 mm diameter cable spans 1.85 m, providing extended reach while maintaining structural rigidity. With IP 67 protection rating and tungsten-braided cable covered in titanium-alloy camera head, this endoscope withstands immersion in water, salt water, and oil for up to 30 minutes, making it suitable for harsh industrial environments.

The motorized 60 mm camera head articulates through 90° bending with a 50 mm radius, and achieves bending angles exceeding 180° in optimal positioning. The 7-inch 1920×1200 touchscreen provides extensive editing, annotation, and documentation capabilities. Advanced features include grid overlay, watermark customization, picture-in-picture comparison, and comprehensive PDF report generation with up to 20 images.

Key Features

• 1-megapixel front-facing camera with 120° viewing angle
• 6 mm diameter flexible cable, approximately 1.85 m long
• 60 mm movable camera head with 50 mm bending radius at 90°
• Motorized 360° 4-way articulation with joystick, exceeding 180° bending in some positions
• 1920×1200 touchscreen with 8× digital zoom capability
• Single LED per camera for field-of-view illumination with 6-step brightness adjustment
• Focus range: 10 to 100 mm for varied distance imaging
• Image rotation and mirroring via simple icon taps
• Grid overlay for precise section comparisons across multiple images
• Watermark function with configurable date/time stamps and custom user labels
• Picture-in-picture comparison of live versus stored images with swappable positioning
• Freeze and mark capability for annotating saved images with circles, arrows, and text
• Report generation as PDF in DIN A4 format with up to 20 images and captions
• Full connectivity: USB-A, USB-C, mini HDMI, audio, WiFi, SD card slot (up to 128 GB)
• IP 67 protection rating; withstands 30-minute water/salt water/oil immersion

Applications

• Quality assurance in manufacturing of safety-critical components
• Machine, plant, and vehicle construction inspections
• Scheduled and unscheduled maintenance procedures
• Building and structural condition assessments
• Post-incident investigation and malfunction analysis
• Wear and damage evaluation without disassembly

Included Accessories

• 2× 7.4V 6400mAh rechargeable batteries
• Power supply unit for battery charging
• 64 GB SD memory card
• USB-C charging cable
• HDMI to Mini HDMI cable
• SD card reader
• Sturdy wheeled carrying case
• Shoulder strap
• Magnetic holder
• Tripod attachment points
• Instruction manual
