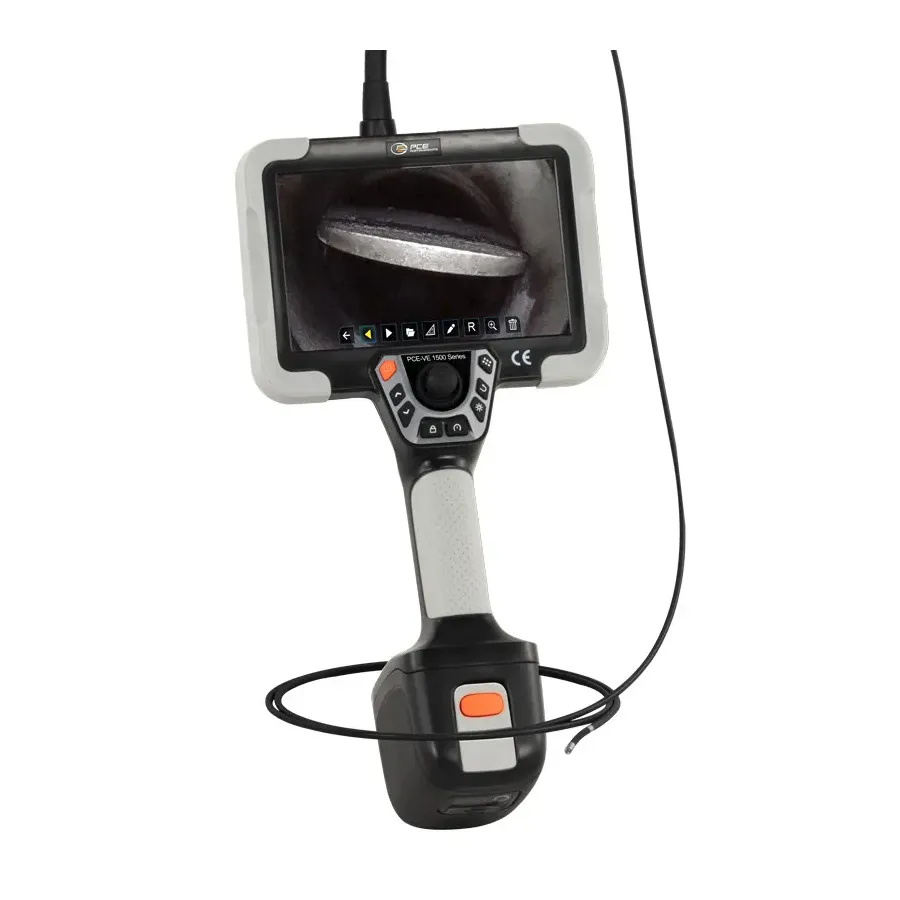

PCE Instruments PCE-VE 1500-38200 Video Borescope
Professional video borescope with 1 MP front-facing camera, 3.8 mm diameter cable, 1.88 m length, 1920×1200 touchscreen, and motorized joystick control.
Product details
| Model | PCE-VE 1500-38200 |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE-VE 1500-38200 is a professional industrial endoscope engineered for comprehensive inspections of engines, gearboxes, blowers, valves, and internal components. The high-resolution 1-megapixel front-facing camera delivers clear imagery with a broad 120° viewing angle, while the 3.8 mm diameter cable enables access through tight openings. At 1.88 m in length, this endoscope accommodates inspection depths required in complex industrial equipment without excessive portability compromise.
The motorized camera head provides 360° articulation with bending angles exceeding 180° in some positions, controlled via intuitive joystick. The 7-inch 1920×1200 touchscreen supports extensive annotation, marking, and documentation features. With 1-megapixel resolution and selectable display formats (1280×720 or 640×480), users can optimize image clarity based on workspace conditions.
Key Features
- 1-megapixel front-facing camera with 120° viewing angle
- 3.8 mm diameter flexible cable, approximately 1.88 m long
- 46 mm movable camera head with 35 mm bending radius at 90°
- Motorized 360° 4-way articulation with joystick control, exceeding 180° in some directions
- 1920×1200 touchscreen with 8× digital zoom
- Six LED lights for adjustable field-of-view illumination
- Display format options: 1280×720 or 640×480 pixels
- Image quality selection: 480, 720, or 1080 pixel height
- Picture-in-picture function for comparing live and stored images
- Extensive marking capabilities with circles, arrows, and text annotations
- Grid overlay and watermark functions for reference and documentation
- Report generation as PDF with up to 20 images and captions
- Full connectivity: USB-A, USB-C, mini HDMI, audio, WiFi, SD card slot (up to 128 GB)
Applications
- Engine and transmission component inspection
- Gearbox and bearing diagnostics
- Valve and fuel injector assessment
- Maintenance and troubleshooting documentation
- Quality assurance in manufacturing
- Post-incident or malfunction investigation
Included Accessories
- 2× 7.4V 6400mAh rechargeable batteries
- 64 GB SD memory card
- USB-C charging cable
- HDMI to Mini HDMI cable
- SD card reader
- Carrying case
- Instruction manual
Specifications
| Series | 1500 Series |
| Display Type | LCD |
| IO Interface | Mini HDMI, USB-A, USB-C (only for data transfer), audio interface, WiFi |
| Power Source | 7.4 V (4 x 18650), 6400 mAh Battery |
Request a quote
