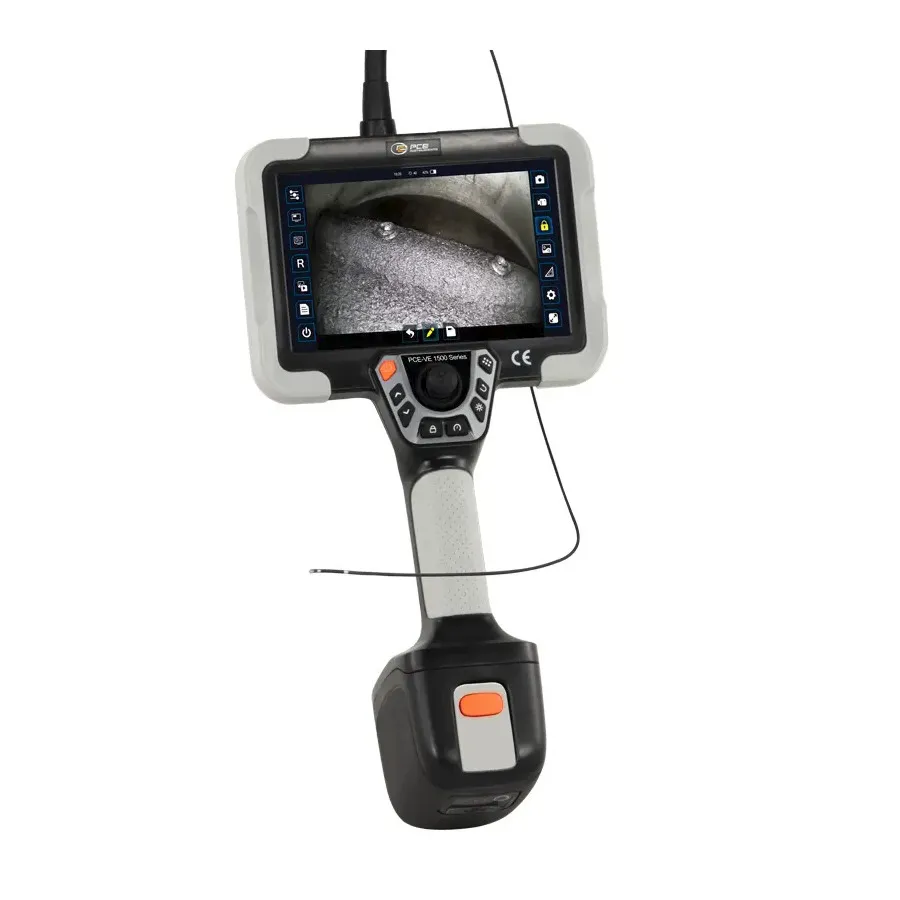

PCE Instruments PCE-VE 1500-22190 Video Borescope

Overview

The PCE Instruments PCE-VE 1500-22190 is a premium industrial borescope with a very small 2.2 mm camera diameter, enabling detailed inspections in extremely confined spaces. It features a 7-inch touchscreen display with 1920x1200 resolution, motorized 4-way articulation, and multiple connectivity options including WiFi, USB-C, and HDMI. The robust construction with IP67 protection and temperature resistance to 80°C makes it suitable for use even during equipment operation.

Key Features

• Ultra-small 2.2 mm diameter camera head (lateral orientation)
• Motorized 360° 4-way articulation with joystick control
• 1-meter flexible camera cable
• 7-inch touchscreen display with 1920x1200 resolution
• 120° angle of view with 5-50 mm focus range
• 8x digital zoom with image rotation and mirroring
• Picture-in-picture function for detail comparison
• Marking and labeling functions
• Adjustable LED illumination
• Multiple interfaces: USB-A, USB-C, mini HDMI, audio, WiFi, SD card slot
• Stores images as JPG and videos as MP4
• IP67 protection rating
• Temperature resistance up to 80°C
• Weighs approximately 2 kg (including battery)
• Tripod and shoulder strap attachment points

Applications

• Inspection of narrow pipelines and ducts
• Confined space exploration without extensive disassembly
• Equipment diagnostics with minimal preparation
• Real-time documentation and reporting
• Component integrity verification

Included Accessories

• 2 x 7.4V 6400mAh battery
• 64GB SD memory card
• USB-C cable
• HDMI to Mini HDMI cable
• SD card reader
• Carrying case
