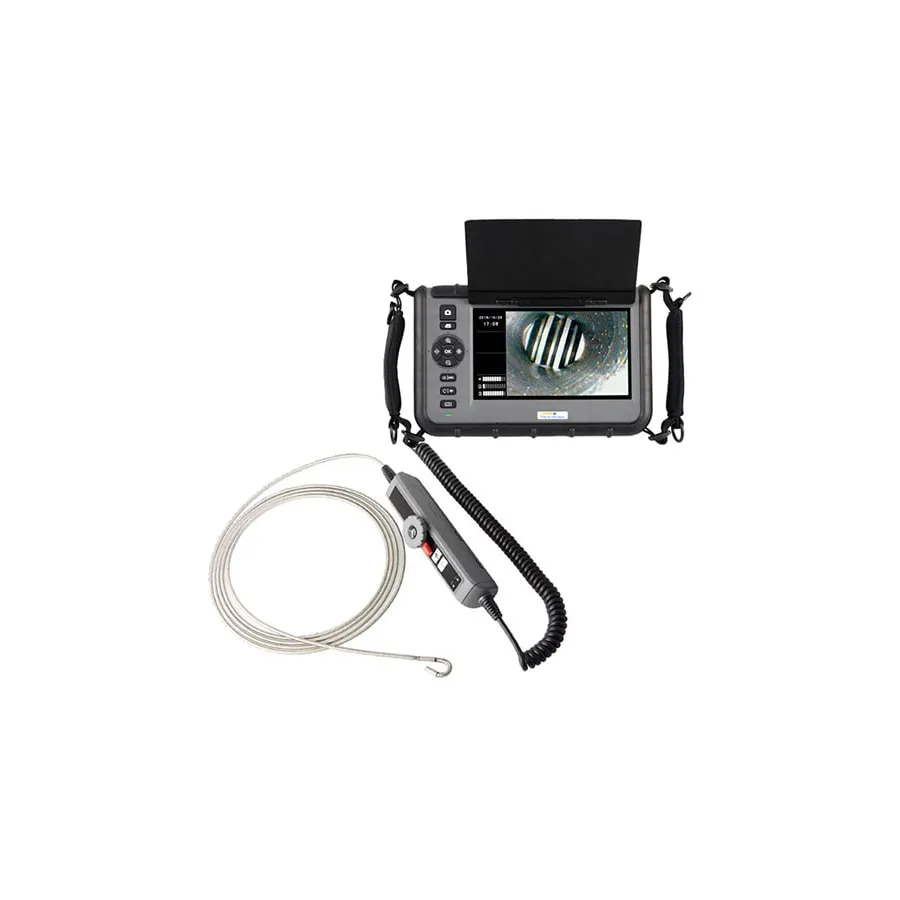

PCE Instruments PCE-VE 1034N-F Videoscope
Request a quote
PCE-VE 1034N-F videoscope features a two-way articulating camera head, 7" display, rechargeable battery, and audio recording for industrial inspections.
Product details
| Model | PCE-VE 1034N-F |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-VE 1034N-F is a versatile two-way videoscope with a large 7-inch LCD display for industrial inspection applications. It features a rechargeable lithium-ion battery, built-in microphone for audio recording, and stores images and videos directly to an SD card. The two-way camera articulation provides enhanced viewing flexibility in hard-to-reach locations.
Key Features
- Two-way articulating camera head for flexible viewing angles
- 7-inch LCD display with image rotation and digital zoom
- Li-Ion rechargeable battery
- Built-in microphone for audio recording
- LED illumination on camera head
- USB interface and SD memory card slot
- Tripod mounting thread and padded shoulder straps
- Supports SD cards up to 32 GB (8 GB stores 60,000+ images or 530+ minutes of video)
- Automatic switch-off function with adjustable intervals (5-30 minutes)
Applications
- Industrial inspections in confined spaces
- Equipment diagnostics and troubleshooting
- Pipe and duct evaluation
- Maintenance and repair documentation
Included Accessories
- SD memory card
- USB cable
- Video cable
- Carrying case
Specifications
| Series | PCE-VE 1000 Series |
| Angle | 135 Deg. |
| Battery Type | 3.7V Li-ion |
| Direction | 360° |
| Display Scale | 640x480 |
| Display Size | 7" |
| Height | 9.00" |
| IO Interface | USB |
| IP Rating | IP57, IP67 |
| Length | 1.40" |
| Material | Stainless Steel |
| Memory | SD Card |
| Power Supply | Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Special Features | Videoscope with 2-way 4.5mm Camera Head with LEDs, 3m Cable |
| Units of Measurement | JPEG / MPEG / VGA |
| Warranty | 2 Years |
| Width | 2.10" |
