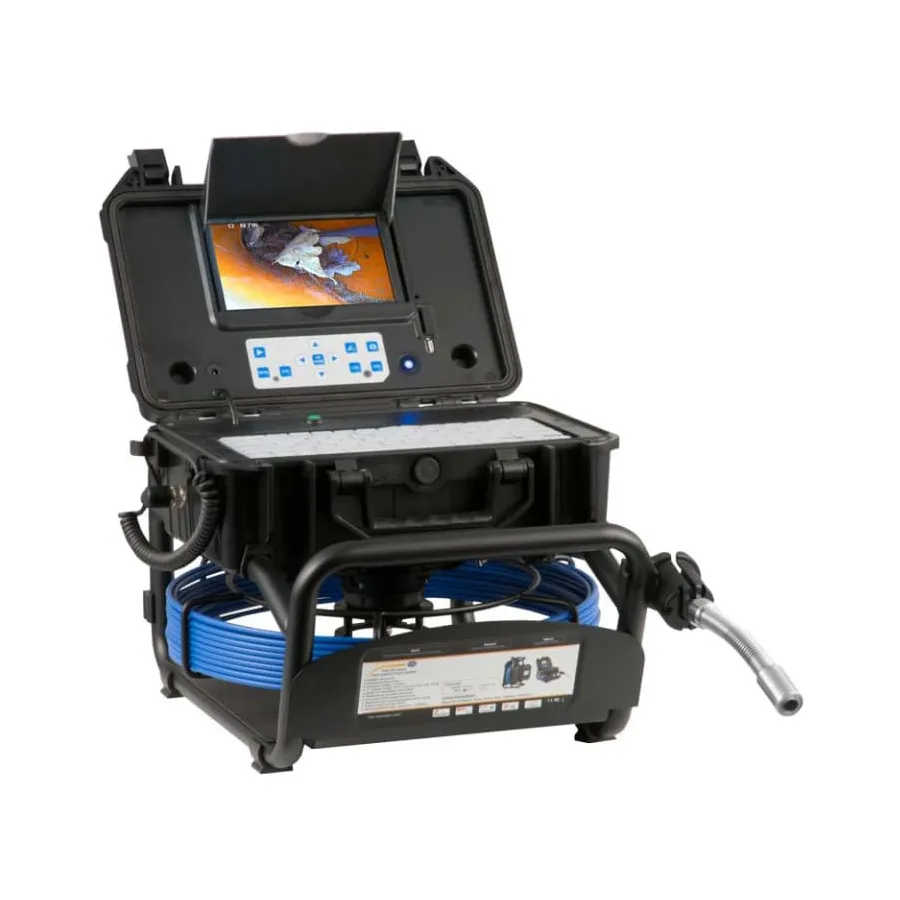

PCE Instruments PCE-PIC 20 Pipe Inspection Camera System
Request a quote
PCE Instruments PCE-PIC 20 is a compact pipe inspection camera with 20m cable, waterproof head, 7-inch display, and SD card recording for small to medium pipes.
Product details
| Model | PCE-PIC 20 |
| Manufacturer | PCE Instruments |
| Category | Borescopes & Videoscopes |
| Availability | Made to order |
Description
Overview
The PCE Instruments PCE-PIC 20 is a compact pipe inspection camera designed for rapid diagnostics of small to medium-diameter pipes and ducts. With a 20-meter fiberglass push cable and waterproof camera head, it delivers reliable inspections for drainage lines, wastewater pipes, and utility ducts. The system features an electronic meter counter for precise defect location and SD card storage for comprehensive documentation.
Key Features
- 23mm waterproof camera head rated to 20 meters depth
- 20-meter fiberglass push cable on motorized reel
- 7-inch LC display with IP66 rating
- 720x576 resolution video and image capture
- 12 LED lights for bright illumination in dark pipes
- Electronic meter counter for precise defect location
- Rechargeable battery for mobile operation
- SD card storage up to 32 GB
- Wireless keyboard and remote control for annotations
- Interchangeable camera head compatibility
- Guides included for pipe centering (46mm and 80mm)
Applications
- Residential and municipal sewer line inspection
- Drain and vent pipe diagnostics
- Small-diameter utility duct surveys
- Blockage and root intrusion detection
- Maintenance troubleshooting and preventive assessment
Included Accessories
- Videoscope PCE-PIC 20 main unit with waterproof case
- 20-meter fiberglass push cable on motorized reel
- Standard interchangeable camera head
- 7-inch LC display with wireless keyboard
- Remote control and power supply
- Car charger adapter for mobile charging
- Pipe guides for 46 mm and 80 mm diameters
- Instruction manual
Specifications
| Series | PCE-PIC Drain Inspection System Series |
| Angle | 120 Deg. |
| Battery Type | 7.4V Li-Ion |
| Display Scale | 720x576 |
| Display Size | 7" |
| Height | 55.00" |
| IO Interface | USB |
| IP Rating | IP66 |
| Length | 43.50" |
| Memory | SD Card |
| Power Supply | 110/240V, 12V, 1.2A DC, Battery Powered |
| Safety Rating | CE, FCC, RoHS |
| Warranty | 2 Years |
| Width | 34.50" |
