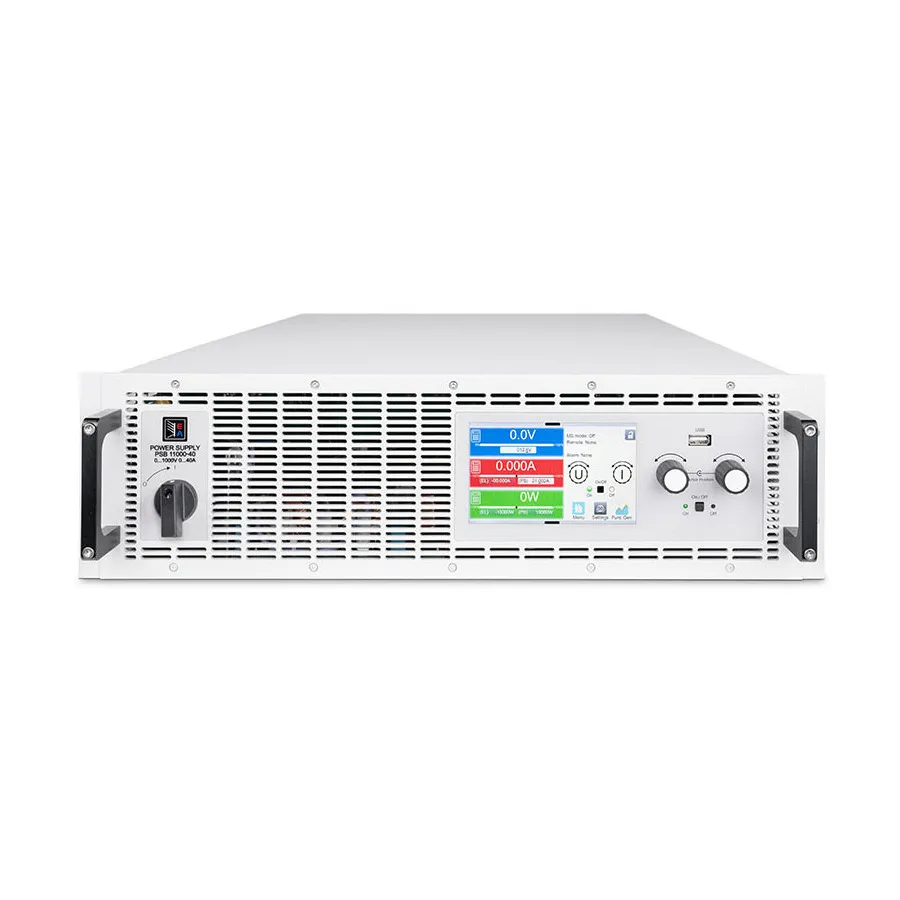

EA Elektro-Automatik EA-PSB 11000-40 3U Bidirectional DC Power Supply
Request a quote
EA Elektro-Automatik EA-PSB 11000-40 is a 15 kW bidirectional DC power supply with 1000V/40A output, active power-factor-correction, and regenerative energy recovery.
Product details
| Model | EA-PSB 11000-40 3U |
| Manufacturer | EA Elektro-Automatik |
| Category | Bidirectional DC Supplies |
| Availability | Made to order |
Description
Overview
The EA Elektro-Automatik EA-PSB 11000-40 is a bidirectional DC laboratory power supply capable of functioning as both a power supply and an electronic load. With 1000V/40A output and 15 kW maximum power, it features active power-factor-correction and regenerative energy recovery exceeding 96% efficiency. The unit operates from 3-phase AC mains (208–480V) and is designed for demanding industrial and laboratory applications requiring flexible, efficient power control.
Key Features
- 1000 VDC / 40 ADC output, 15 kW power rating
- Bidirectional operation: functions as power supply and electronic load
- 2-quadrant source and sink capability with fast crossover
- Active Power-Factor-Correction (PFC) with typical 0.99 efficiency
- Regenerative energy recovery: feeds excess power back to grid at >96% efficiency
- Wide AC input range: 208–480V 3-phase AC +10%
- Autoranging flexible output stages for diverse voltage/current combinations
- Multiple regulation modes: CV, CC, CP, CR with fast crossover
- 16-bit ADC/DAC digital control with selectable speed modes: Normal, Fast, Slow
- 5-inch color TFT touchscreen display with intuitive interface
- Master-Slave bus for parallel operation of up to 64 units across all power classes
- Galvanically isolated Share-Bus for equal load distribution
- Integrated function generator with sine, triangle, square, ramp waveforms
- Predefined automotive test procedures: LV123, LV124, LV148
- Integrated battery and fuel cell simulation modes
- Photovoltaics testing with MPPT and EN 50530 compliance
- Standard interfaces: USB, Ethernet, Analog, USB Host, Master-Slave-Bus, Share-Bus
- Optional interfaces: CAN, CANopen, RS232, Profibus, EtherCAT, Profinet, Modbus
- Command languages and drivers: SCPI, ModBus, LabVIEW, IVI
Applications
- Laboratory and bench-top power supply and electronic load testing
- Automotive component development and validation testing
- Battery pack and fuel cell characterization and simulation
- Solar panel and photovoltaic system simulation and MPPT testing
- High-power DC load emulation with regeneration capability
- Multi-unit parallel systems for ultra-high-power applications up to 1920 kW
- Energy efficiency testing and power consumption profiling
Included Accessories
- 1 x Bidirectional power supply device
- 2 x Remote sensing plugs
- 1 x 1.8 m USB cable
- 1 x Set of DC terminal covers
- 1 x Sense terminal cover
- 1 x USB stick with documentation and software
- 1 x AC connector plug (clamp type)
- 1 x Set for AC cable strain relief
Specifications
| Maximum Power | 15 kW |
| Output Voltage | 1000 V |
| Output Current | 40 A |
| Input Voltage | 208-480 VAC |
| Interface | USB, Ethernet (100 MBit) for communication, 1 x USB Host for Data Acquisition |
| Display | 5 TFT Color Touch |
| Series | EA-PSB 10000 3U Series |
| Current Accuracy | ≤0.1% FS |
| Current Range Selector | 30-49.9 |
| Dimensions | 19 x 5.25 x 30.6" |
| Frequency Range | 45-65 Hz |
| IP Rating | IP20 |
| Mounting Type | Rack Mount |
| Number of Outputs | Single Output |
| Operating Temperature Range | 32-122°F |
| Power Range Selector | 10,000-19,999 |
| Relative Humidity Range | ≤80% |
| Resistance Range | 0.8-1300 Ω |
| Safety | EN 61010-1 IEC 61010-1 UL 61010-1 CSA C22.2 No 61010-1 BS EN 61010-1 |
| Storage Temperature | -4-158°F |
| Type | Programmable Bi-Directional DC Power Supply |
| Voltage Accuracy | ≤0.05% FS |
| Voltage Range Selector | 1,000-1,999 |
