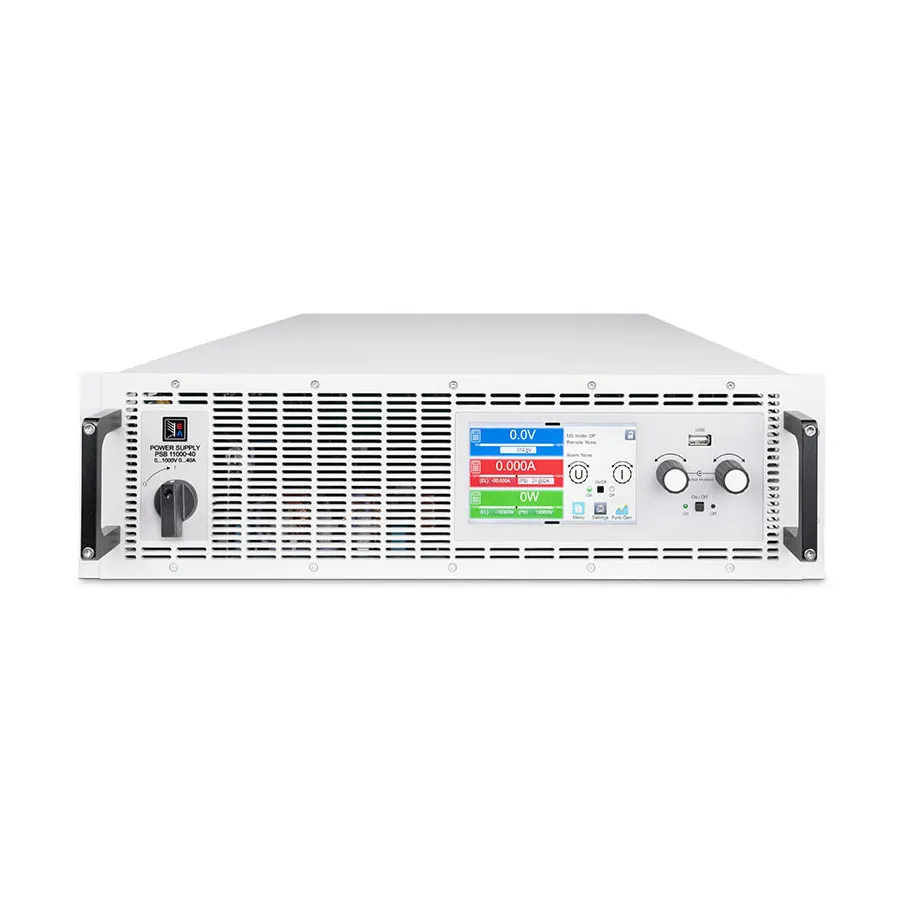

EA Elektro-Automatik EA-PSB 10500-60 3U Bidirectional DC Supply
EA Elektro-Automatik EA-PSB 10500-60 3U supplies 500V/60A/10000W bidirectional DC power with 96% efficiency and high-performance three-phase mains support.
Product details
| Model | EA-PSB 10500-60 3U |
| Manufacturer | EA Elektro-Automatik |
| Category | Bidirectional DC Supplies |
| Availability | Made to order |
Description
Overview
The EA Elektro-Automatik EA-PSB 10500-60 3U is a high-performance three-phase rackmount bidirectional DC power supply delivering 500V/60A/10000W output power. Built for demanding laboratory and industrial test environments, this unit functions as both a power supply and electronic load, operating across three-phase AC input voltages from 208V to 480V. The supply's advanced regenerative capability returns energy to the mains grid at efficiencies exceeding 96%, delivering substantial cost savings and reducing cooling system burden.
Equipped with a 5-inch color touchscreen interface, integrated function generator, and comprehensive battery, fuel cell, and photovoltaic simulation capabilities, the EA-PSB 10500-60 3U provides the precision and flexibility demanded by advanced power electronics development, renewable energy research, and high-performance battery testing applications.
Key Features
- Bidirectional 500V/60A/10000W output with flexible autoranging
- Input: 208-480V three-phase AC with active power-factor correction (PFC)
- 96% energy recovery efficiency in regenerative load mode
- 16-bit digital regulation with CV, CC, CP, CR modes and fast crossover
- 5-inch color TFT touchscreen with intuitive user interface
- Integrated function generator for sine, triangle, square, and arbitrary waveforms
- Battery simulation, fuel cell simulation, and photovoltaic test modes (MPPT, EN 50530)
- Automotive test procedures: LV123, LV124, LV148
- Master-Slave bus for parallel operation of up to 64 units
- Galvanically isolated Share-Bus for equal load distribution
- Standard interfaces: USB, Ethernet, analog I/O, USB Host
- Optional interfaces: CAN, CANopen, RS232, Profibus, EtherCAT, Profinet, Modbus
- 3U rackmount form factor for standard 19-inch cabinet installation
Applications
- High-power laboratory power supply and electronic load
- Automotive component and system validation
- Battery and fuel cell testing and characterization
- Photovoltaic array development and testing
- Power electronics and converter testing
- High-power DC load simulation and energy recovery
- Multi-unit scalable power system integration
Included Accessories
- Bidirectional DC power supply unit
- Remote sensing plugs (2x)
- USB cable 1.8m (5.9ft)
- DC terminal covers set
- Sense terminal cover
- USB stick with documentation and software
- AC connector plug (clamp type)
- AC cable strain relief set
Specifications
| Maximum Power | 10 kW |
| Output Voltage | 500 V |
| Output Current | 60 A |
| Input Voltage | 208-480 VAC |
| Interface | USB, Ethernet (100 MBit) for communication, 1 x USB Host for Data Acquisition |
| Display | 5 TFT Color Touch |
| Series | EA-PSB 10000 3U Series |
| Current Accuracy | ≤0.1% FS |
| Current Range Selector | 50-99.9 |
| Dimensions | 19 x 5.25 x 30.6" |
| Frequency Range | 45-65 Hz |
| IP Rating | IP20 |
| Mounting Type | Rack Mount |
| Number of Outputs | Single Output |
| Operating Temperature Range | 32-122°F |
| Power Range Selector | 10,000-19,999 |
| Relative Humidity Range | ≤80% |
| Resistance Range | 0.3-500 Ω |
| Safety | EN 61010-1 IEC 61010-1 UL 61010-1 CSA C22.2 No 61010-1 BS EN 61010-1 |
| Storage Temperature | -4-158°F |
| Type | Programmable Bi-Directional DC Power Supply |
| Voltage Accuracy | ≤0.05% FS |
| Voltage Range Selector | 500-999 |
