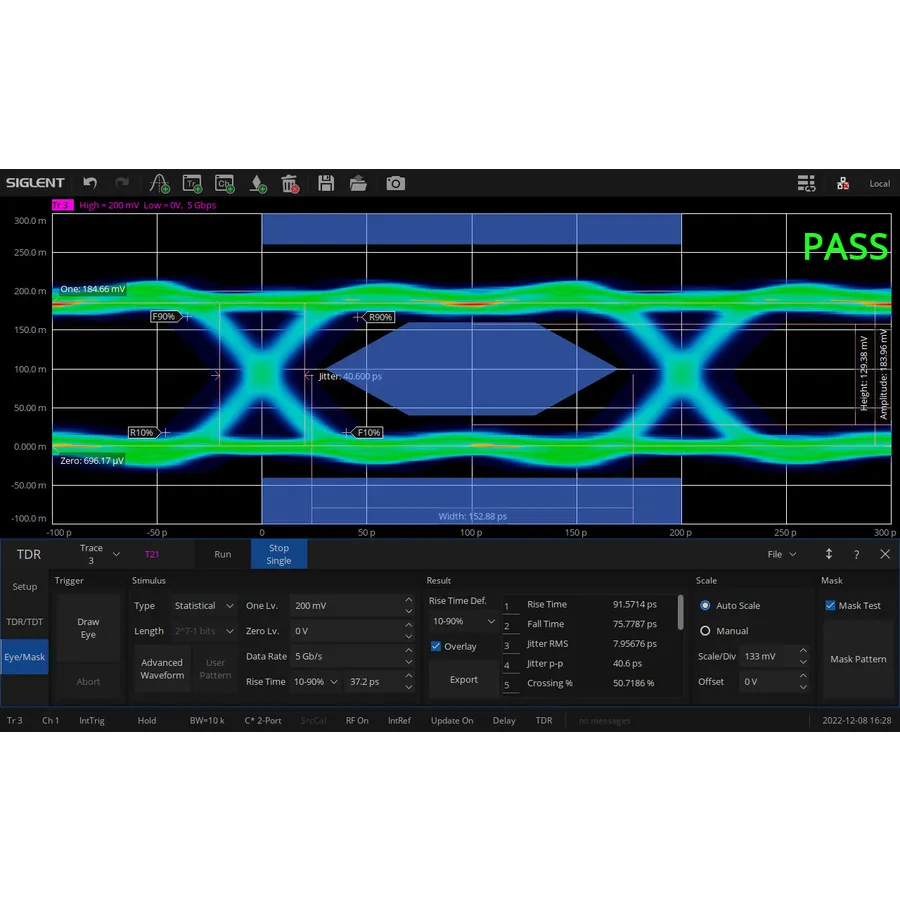

Siglent SNA6000-TDA Time-Domain Analysis Software
Request a quote
Siglent SNA6000-TDA is time-domain analysis software for SNA6000A series analyzers, converting frequency domain measurements to time domain via inverse Fourier transform.
Product details
| Model | SNA6000-TDA |
| Manufacturer | Siglent |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
The SNA6000-TDA Time-Domain Analysis software extends the capabilities of the Siglent SNA6000A series vector network analyzers. While traditional vector network analyzers primarily measure frequency domain characteristics, this software enables time-domain analysis by applying inverse Fourier transforms to frequency measurements. This dual perspective allows engineers to observe both frequency and time domain characteristics of the Device Under Test.
Key Features
- Time-domain analysis option for SNA6000A series analyzers
- Inverse Fourier transform conversion from frequency to time domain
- Simultaneous frequency and time domain characterization
- Enhanced device characterization capabilities
Applications
- Cable and interconnect time-domain reflectometry
- Impedance discontinuity identification
- Filter and component impulse response analysis
