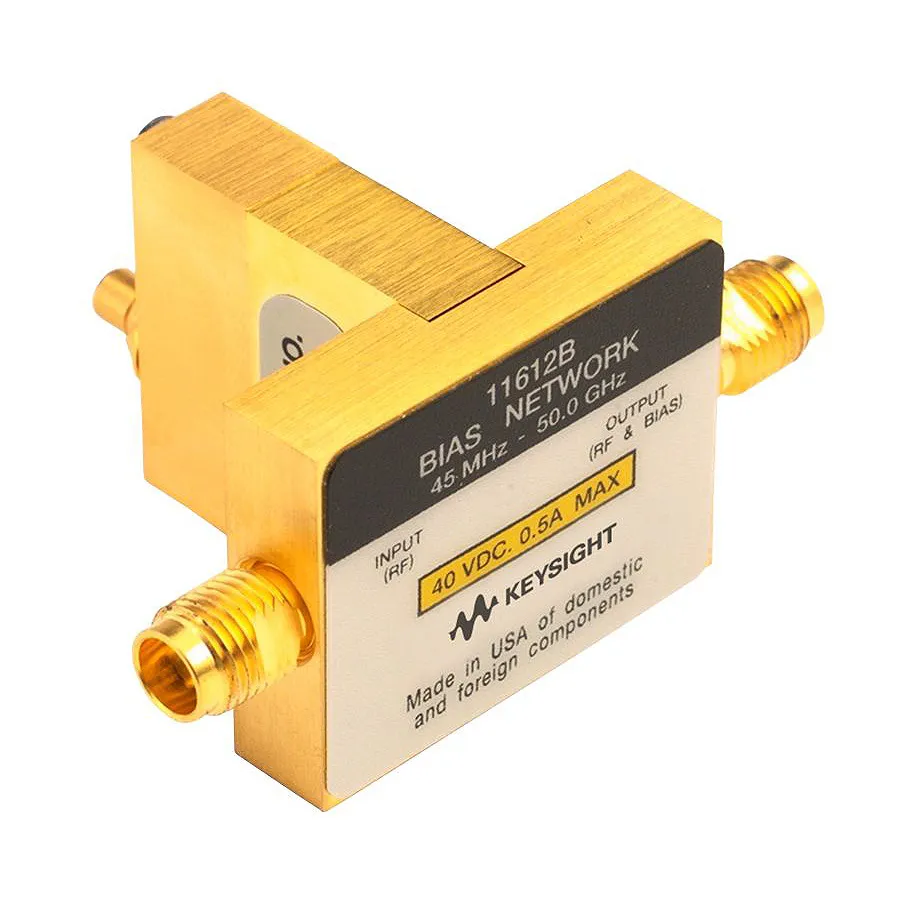

Keysight 11612B Bias Network
Request a quote
Keysight 11612B broadband high-power bias network for RF/microwave applications, 45 MHz to 50 GHz, 50Ω impedance, up to 500 mA bias current
Product details
| Model | 11612B |
| Manufacturer | Keysight |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
The Keysight 11612B is a broadband high-power bias network designed for a wide variety of biasing applications in laboratory and production test and measurement environments. Bias networks provide the means of supplying DC bias to the center conductor of the coax connector for devices while blocking DC from the RF port.
Key Features
- Frequency Range: 45 MHz to 50 GHz
- Impedance: 50 ohms
- Maximum RF Power: 24 dBm
- Maximum Bias Current: 500 mA
- Maximum Bias Voltage: 40 V
- RF Connectors: 2.4 mm (female input and output)
- DC Bias Connector: SMB (male)
- Cable Included: SMB (female) to BNC (male)
- Operating Temperature Range: 0°C to 55°C
Applications
- RF and microwave device biasing
- High-frequency semiconductor testing
- Production test environments
- Laboratory measurement applications
Specifications
