Siglent SHA860-MAP Outdoor/Indoor Map Option
Request a quote
Siglent SHA860-MAP mapping option for SHA860 series analyzers supporting outdoor/indoor signal coverage analysis with GPS data logging and playback capabilities.
Product details
| Model | SHA860-MAP |
| Manufacturer | Siglent |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview

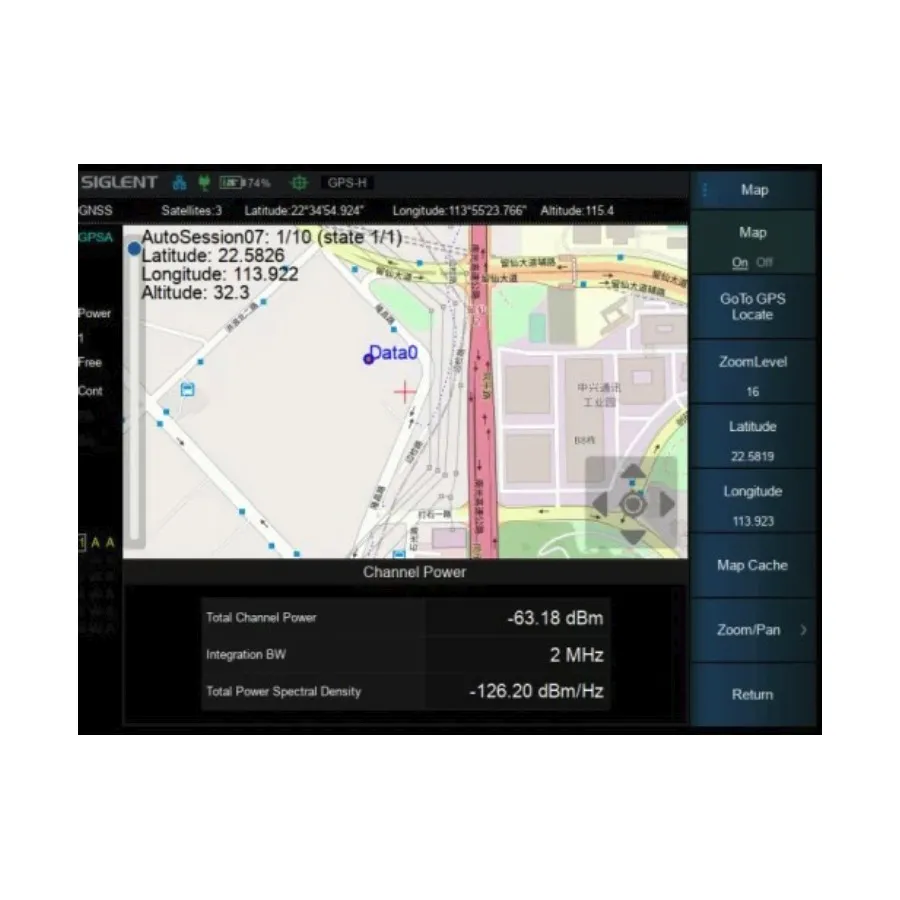

The SHA860-MAP is a mapping option for the Siglent SHA860 series spectrum analyzers that adds advanced geolocation and coverage analysis capabilities. It supports both outdoor mapping with real-time Google Map integration and indoor floor plan tracking, enabling comprehensive RF coverage testing and network diagnostics.
Key Features
- Outdoor mapping integration with Google Map tiles via EasyMap software
- Indoor floor plan mapping with PNG and JPEG image import
- Real-time data logging with GPS synchronization (±0.01 ppm accuracy)
- Overlay of RF measurements including signal strength, PCI, RSRP, and EVM with GPS coordinates
- Recorded data playback and review for coverage and interference analysis
- Display of multiple metrics including SINR, power levels, and frequency/time errors
Applications
- 5G and LTE network coverage testing and optimization
- Signal strength logging during drive or walk tests
- Base station location and antenna orientation identification
- Dead zone and interference pattern detection
- Network performance diagnostics in diverse indoor and outdoor environments
