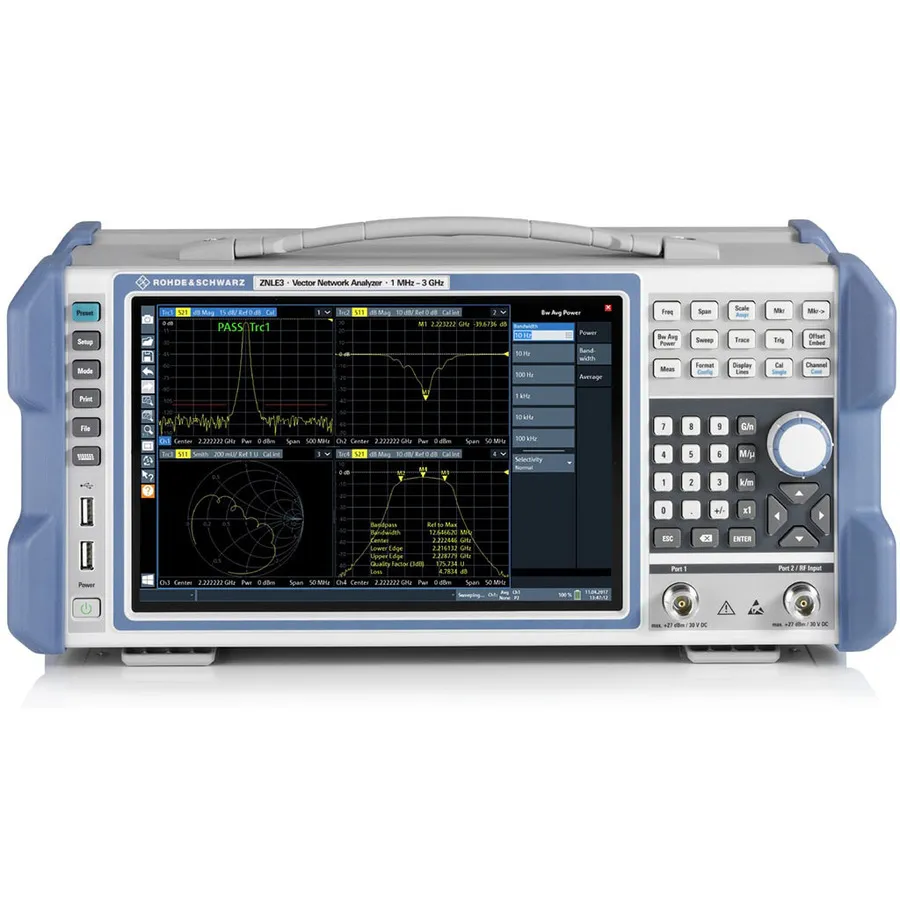

Rohde & Schwarz ZNLE3-COM Vector Network Analyzer Package
Request a quote
Rohde & Schwarz ZNLE3-COM promotional package with ZNLE-B100 extension, ZN-Z135 calibration kit, 100 kHz to 3 GHz, 4-year warranty.
Product details
| Model | ZNLE3-COM |
| Manufacturer | Rohde & Schwarz |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz ZNLE3-COM is a promotional package for channel partners, combining the ZNLE3 two-port vector network analyzer with the ZNLE-B100 low-frequency extension and ZN-Z135 calibration kit. This complete solution extends the analyzer's frequency range down to 100 kHz, enabling measurements on components across a wider frequency band. The package includes four years of warranty and manufacturer calibration coverage on repair.
Key Features
- ZNLE3 base unit: 1 MHz to 3 GHz (extendable to 100 kHz with B100 option)
- Two-port vector network analyzer with full S-parameter test set (S11, S21, S12, S22)
- Wide dynamic range: up to 120 dB (typical)
- Measurement bandwidths: 1 Hz to 500 kHz
- 10.1" WXGA touchscreen with intuitive user interface
- Standalone operation with Windows 10 operating system
- LAN interface standard; optional GPIB for remote control
- Included: ZNLE-B100 low-frequency extension (100 kHz lower end)
- Included: ZN-Z135 calibration kit
- Extended warranty: 4 years with manufacturer calibration coverage
Applications
- Extended frequency range testing: 100 kHz to 3 GHz
- Low-frequency component characterization (filters, cables, transformers)
- Production and R&D environments requiring calibration kit
- Channel partner solutions with extended warranty coverage
Specifications
| Series | ZNLE Series |
| Alternate Product Number | 1323.0012P05 |
