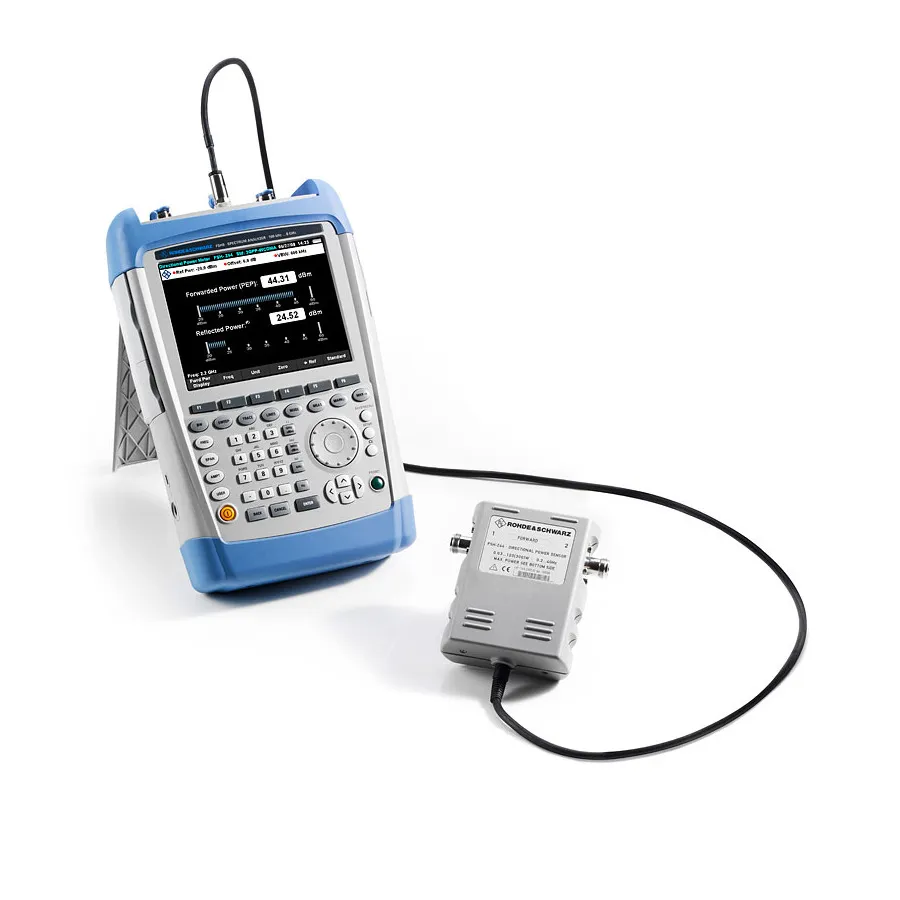

Rohde & Schwarz FSH-Z44 Directional Power Sensor
Request a quote
Rohde & Schwarz FSH-Z44 directional power sensor measures forward and reverse power up to 4 GHz and 120 W, enabling real-time VSWR assessment.
Product details
| Model | FSH-Z44 |
| Manufacturer | Rohde & Schwarz |
| Category | Analyzer Options & Accessories |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz FSH-Z44 is a directional power sensor that transforms the FSH spectrum analyzer into a full-featured directional power meter. It simultaneously measures both forward and reverse power under real operating conditions, enabling assessment of load matching and system performance.
Key Features
- Frequency range: 200 MHz to 4 GHz
- Power range: 30 mW to 120 W average power (300 W PEP)
- Simultaneous forward and reverse power measurement
- Load matching assessment via return loss or VSWR
- Compatible with GSM/EDGE, WCDMA, CDMA, DVB-T, and DAB standards
- Eliminates need for additional attenuators in most applications
Applications
- RF power measurement and verification
- Antenna system characterization and troubleshooting
- Transmitter system installation and maintenance
- Real-time VSWR monitoring
Specifications
| Type | Power Sensor |
| Series | FSH Series |
| Alternate Product Number | 1444.0035.02, 1165.2305.02 |
